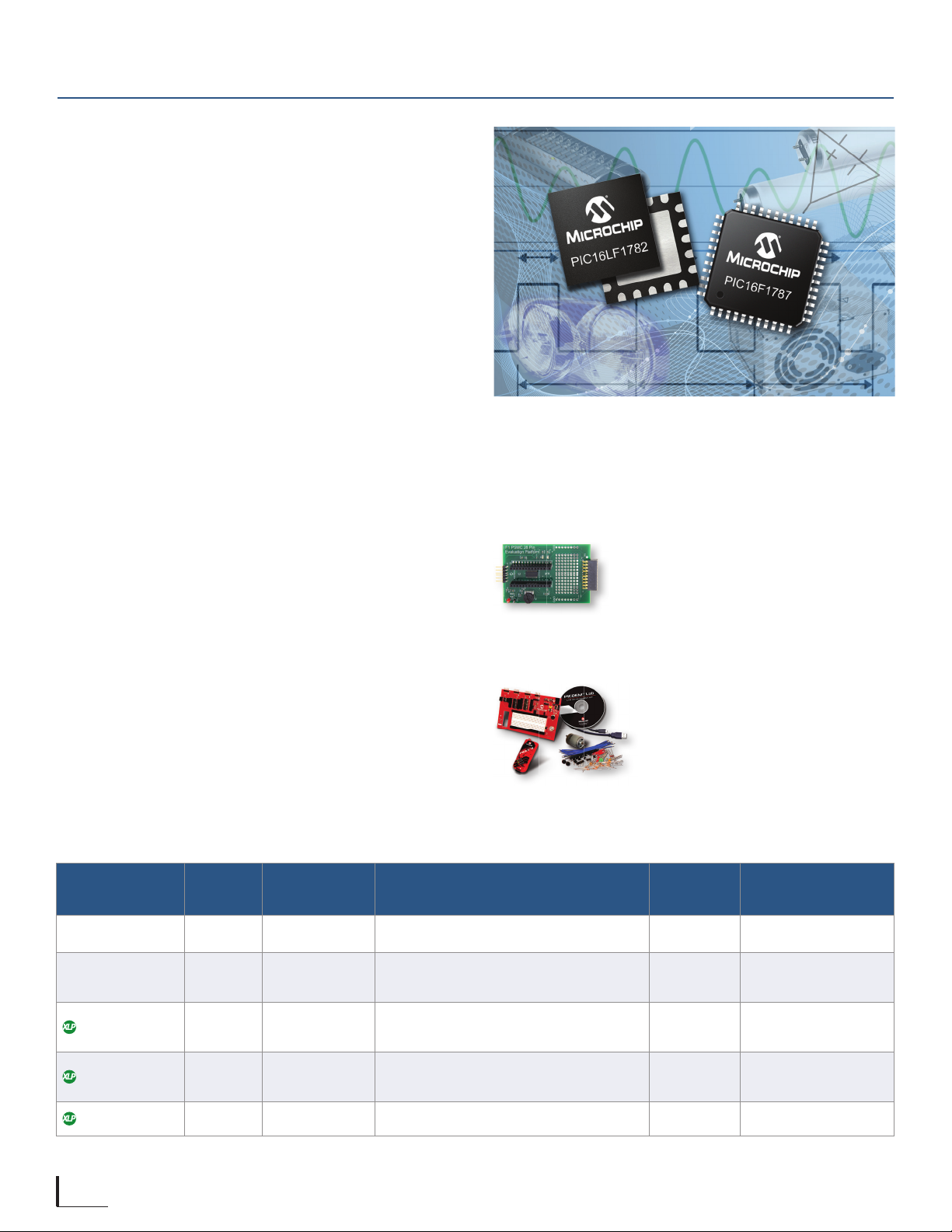

Featured Intelligent Analog Product Families
Family Pins
Flash Memory
SRAM (Bytes)
Intelligent Analog
Core
Independent
Peripherals
Additional Features
PIC16F527/570 20/28
1.5K–3K
64–132
8-bit ADC (8),
Comparator (2), Op amp (2)
-
PIC16F75X 8/14
1.75 KB–3.5 KB
64–128
10-bit ADC (4), 5/9-bit DAC (1),
Comparators (2), Op amp (1),
High Current Pins (2)
CWG/COG
Internal Shunt:
providing high voltage
input capability
PIC16(L)F170X
14/20
3.5 KB–14 KB
256 B–1 KB
10-bit ADC (8-12), 8-bit DAC (1),
Op amps (2), Comparators (2),
Zero Cross Detect
CLC,COG I
2
C™/SPI, UART
PIC16(L)F171X
28/40/44
7 KB–28 KB
512–2 KB
10-bit ADC (17–28), 5 & 8-bit DAC,
Op amps (2), Comparators (2),
Zero Cross Detect
CLC, NCO,
COG
I
2
C/SPI, UART
PIC16(L)F178X
28/40/44
2K - 16K
256 - 2K
12-bit ADC (11–14), Comparators (3–4),
Op amps (2–3), 8-bit DAC, 5-bit DAC (0–3)
PSMC I
2
C/SPI, UART
www.microchip.com/intelligentanalog
Summary
With Microchip’s Intelligent Analog solutions, engineers
can reduce their component count, design smaller,
more cost effective boards, and benefit from simplified,
higher performance designs and easier procurement of
components. In addition, designers benefit from increased
flexibility like analog topology agility, utilizing the MCU’s
programmable analog interconnects and programmability.
To simplify your next design, Microchip has integrated the
following Analog Peripherals.
Op Amps
A basic building block in electronic design. Integrating op
amps into the Microcontroller offers increased flexibility
and reliability while reducing BOM costs and board space.
High Speed Comparators
Comparators have be in the PIC Microcontroller lineup for
many years. We are now offering feature rich High Speed
(50 nS) variants to enable faster responding/more efficient
closed loop feedback designs.
Fixed Voltage Referrence
Fixed Voltage Ref provides an integrated stable voltage
reference, independent of VDD.
Analog to Digital Conversion
■ 16, 12, 10 and 8-bit ADCs available in our 8-bit offering
Digital to Analog Conversion
■ 9,8, and 5-bit DAC options available in our 8-bit offering
High Current Sink/Source Pins
High Current Sink/Source pins with the ability to sink/source
50 mA the high currents pins enable direct MOSFET drive
from the microcontroller.
Zero Cross Detect
Enables the micro to be connected directly to the AC
input via a current limiting resistor. The ZCD will flag the
micro when the Zero Cross is approaching so any required
switching can be synchronized to reduce power and
eliminate any switching related artifacts/noise.
Development Tools
F1 PSMC 28-pin Evaluation Board (DM164130-10)
■ PSMC development platform using
the PIC16F1783
■ Break-out headers for
application development
■ Connect to any F1 motor control add-on
■ Prototyping area
PICDEM™ Lab Development Kit (DM163045)
■ Development platform for 6 to
20-pin parts
■ Work across different
architectures
■ Includes comprehensive user guide,
labs, and application examples
■ Support for PICkit™ 3 and Expansion Headers
6
8-bit PIC® Microcontroller Solutions
Intelligent Analog
