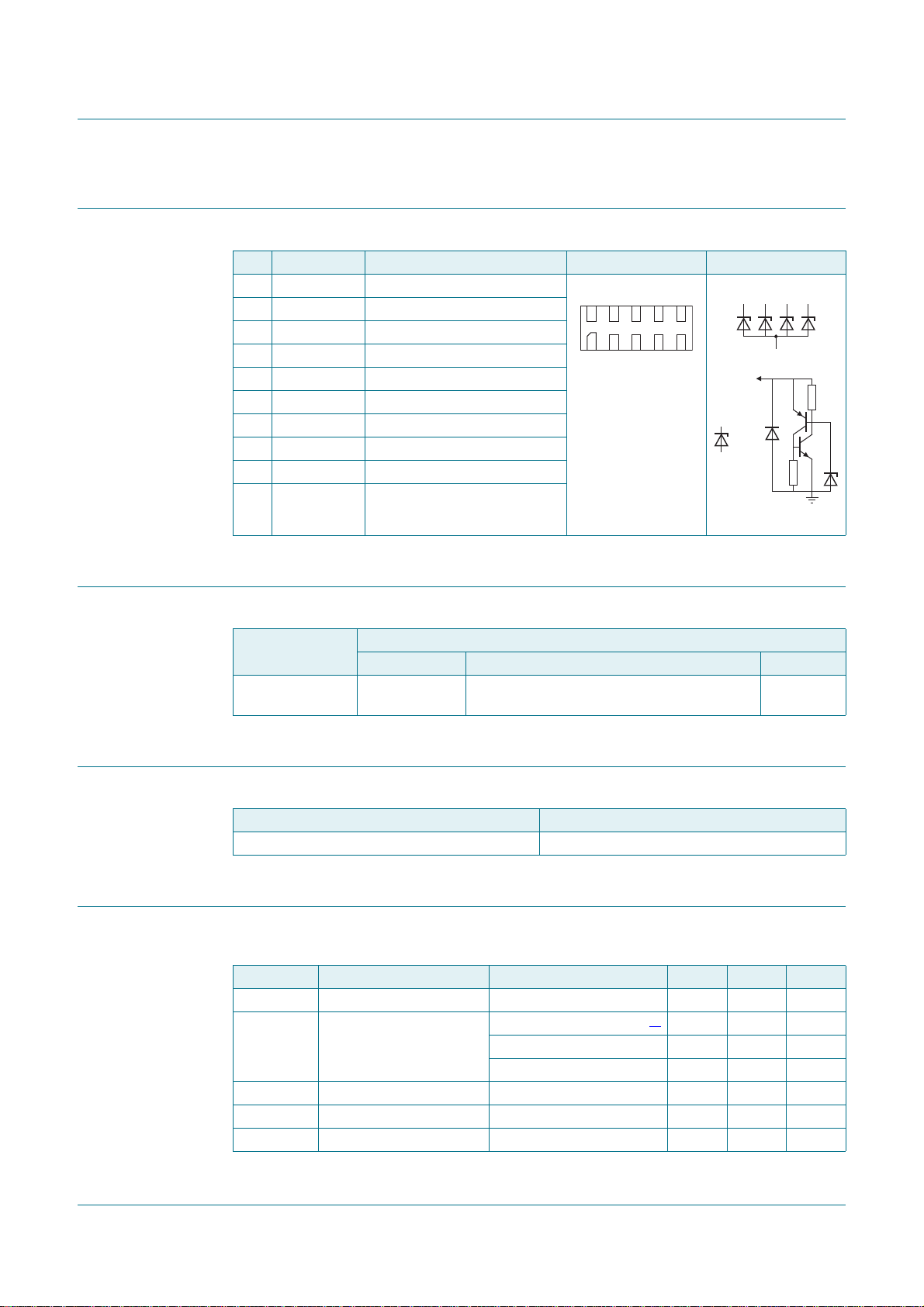

PUSB3FR4 All information provided in this document is subject to legal disclaimers. © NXP Semiconductors N.V. 2015. All rights reserved.
Product data sheet Rev. 1 — 26 January 2015 2 of 15
NXP Semiconductors
PUSB3FR4
ESD protection for ultra high-speed interfaces
2. Pinning information
3. Ordering information
4. Marking
5. Limiting values
[1] All pins to ground.
Table 1. Pinning
Pin Symbol Description Simplified outline Graphic symbol
1 CH1 channel 1 ESD protection
2 CH2 channel 2 ESD protection
3 GND ground
4 CH3 channel 3 ESD protection
5 CH4 channel 4 ESD protection
6 n.c. not connected
7 n.c. not connected
8 GND ground
9 n.c. not connected
10 n.c. not connected
Transparent top view
109876
12345
1245
3,8
=
aaa-016329
Table 2. Ordering information
Type number Package
Name Description Version
PUSB3FR4 DFN2510A-10 plastic extremely thin small outline package;
no leads; 10 terminals; body 1 2.5 0.5 mm
SOT1176-1
Table 3. Marking codes
Type number Marking code
PUSB3FR4 FR
Table 4. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
V
I
input voltage 0.5 +3.3 V
V
ESD
electrostatic discharge
voltage
IEC 61000-4-2, level 4
[1]
contact discharge 15 +15 kV
air discharge 15 +15 kV
I
PPM
rated peak pulse current t
p
=8/20s 77 A
T
amb
ambient temperature 40 +85 C
T
stg
storage temperature 55 +125 C
