CSMMYDSJ73
1

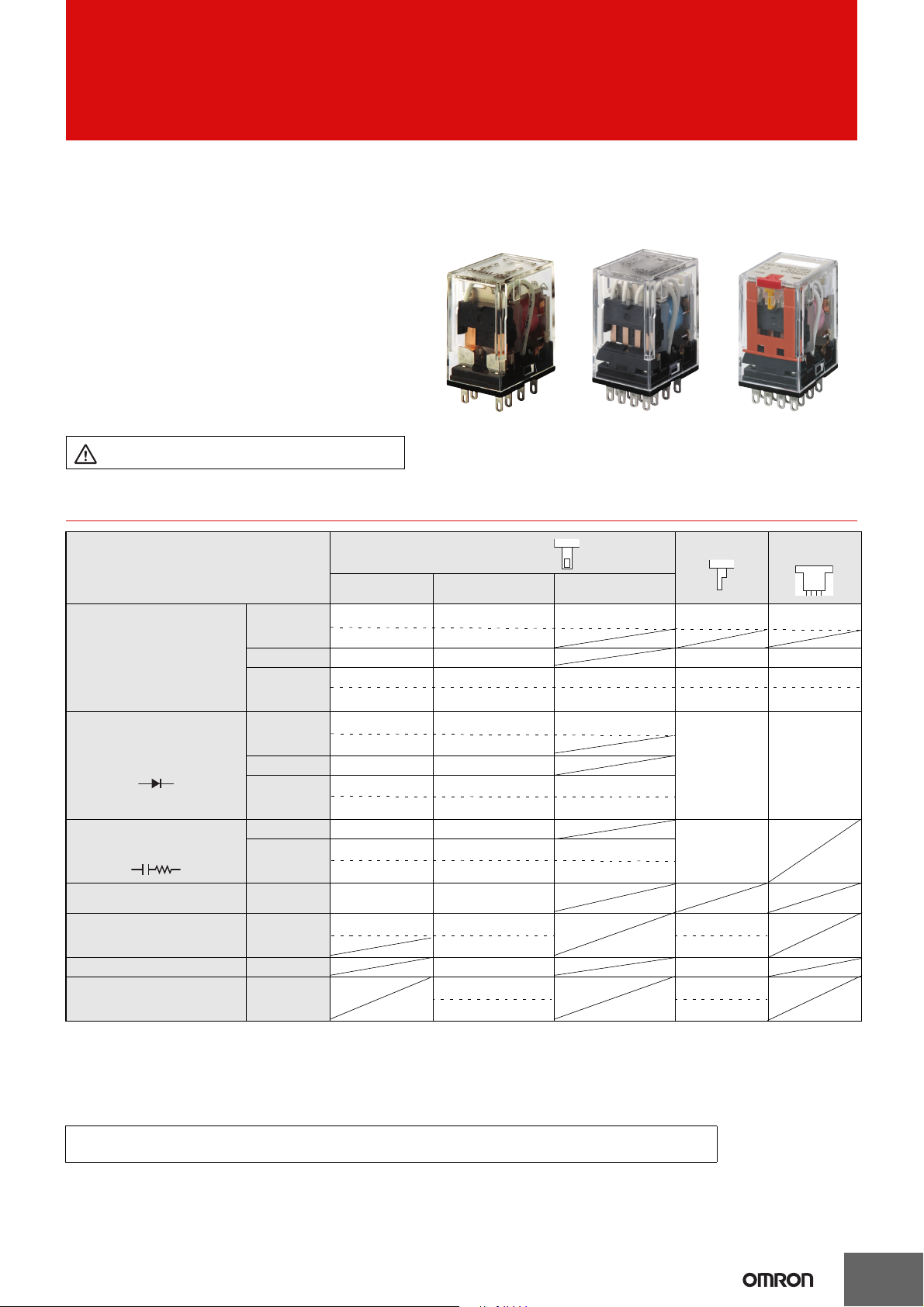

Miniature Power Relays
MY
New Latching Levers for Circuit Checking
Added to Our Best-selling
MY General-purpose Relays
• Now lead-free to protect the environment.
• VDE certification (Germany).
• Different colors of coil tape for AC and
DC models to more easily distinguish them.
• MY(S) models with latching levers added for
easier circuit checking.
Refer to the Common Relay Precautions.
Model Number Structure
Note: 1. The models in this table are UL/CSA certified. This is indicated with a certification mark on the products.
(This does not include models with high contact reliability or plastic sealed, latching, or hermetically sealed models.)
2. Models with an asterisk (*) next to them are new versions.
3. The standard models with plug-in terminals, models with coil surge absorption diodes, and models with coil surge absorption CR circuits were used in
combination with the PYF-E and PYFS (2-pole and 4-pole) for the EC Declaration of Conformity. These products display the CE Marking.
4. Products cannot be manufactured for the cells with a diagonal line. Ask your OMRON representative for details on manufacturing products for cells containing
“---” in the above table.
Structure
Relays with Plug-in Terminals
PCB terminals
Case-surface
mounting
Classification
Number of
poles
With operation
indicator
Without operation
indicator
With latching lever
Standard models (compliant with
Electrical Appliances and
Material Safety Act)
2
Bifurcated
MY2N*
MY2ZN
MY2*
MY2Z
MY2IN(S)* MY2-02 MY2F
3 MY3N MY3 MY3-02 MY3F
4
Bifurcated
MY4N*
MY4ZN*
MY4*
MY4Z*
MY4IN(S)*
MY4ZIN(S)*
MY4-02
MY4Z-02
MY4F
MY4ZF
Models with diode for coil surge
absorption (DC coil specification
only)
2
Bifurcated
MY2N-D2*
MY2ZN-D2
MY2-D*
MY2Z-D
MY2IN-D2(S)*
--- ---
3 MY3N-D2 MY3-D
4
Bifurcated
MY4N-D2*
MY4ZN-D2*
MY4-D*
MY4Z-D*
MY4IN-D2(S)*
MY4ZIN-D2(S)*
Models with CR circuit for coil
surge absorption (AC coil
specification only)
2 MY2N-CR* MY2-CR*
---
4
Bifurcated
MY4N-CR*
MY4ZN-CR*
MY4-CR*
MY4Z-CR*
MY4IN-CR(S)*
MY4ZIN-CR(S)*
Models with high contact
reliability
4 Bifurcated --- MY4Z-CBG
Plastic sealed models
4
Bifurcated
MYQ4N MYQ4
MYQ4Z
MYQ4-02
MYQ4Z-02
Latching models (coil latching) 2MY2K MY2K-02
Hermetic models
4
Bifurcated
MY4H
MY4ZH
MY4H-0
MY4ZH-0
Refer to Connection Socket and Mounting Bracket Selection Table on page 33 in Options for information on the
possible combinations of Models with Plug-in Terminals and Sockets.
