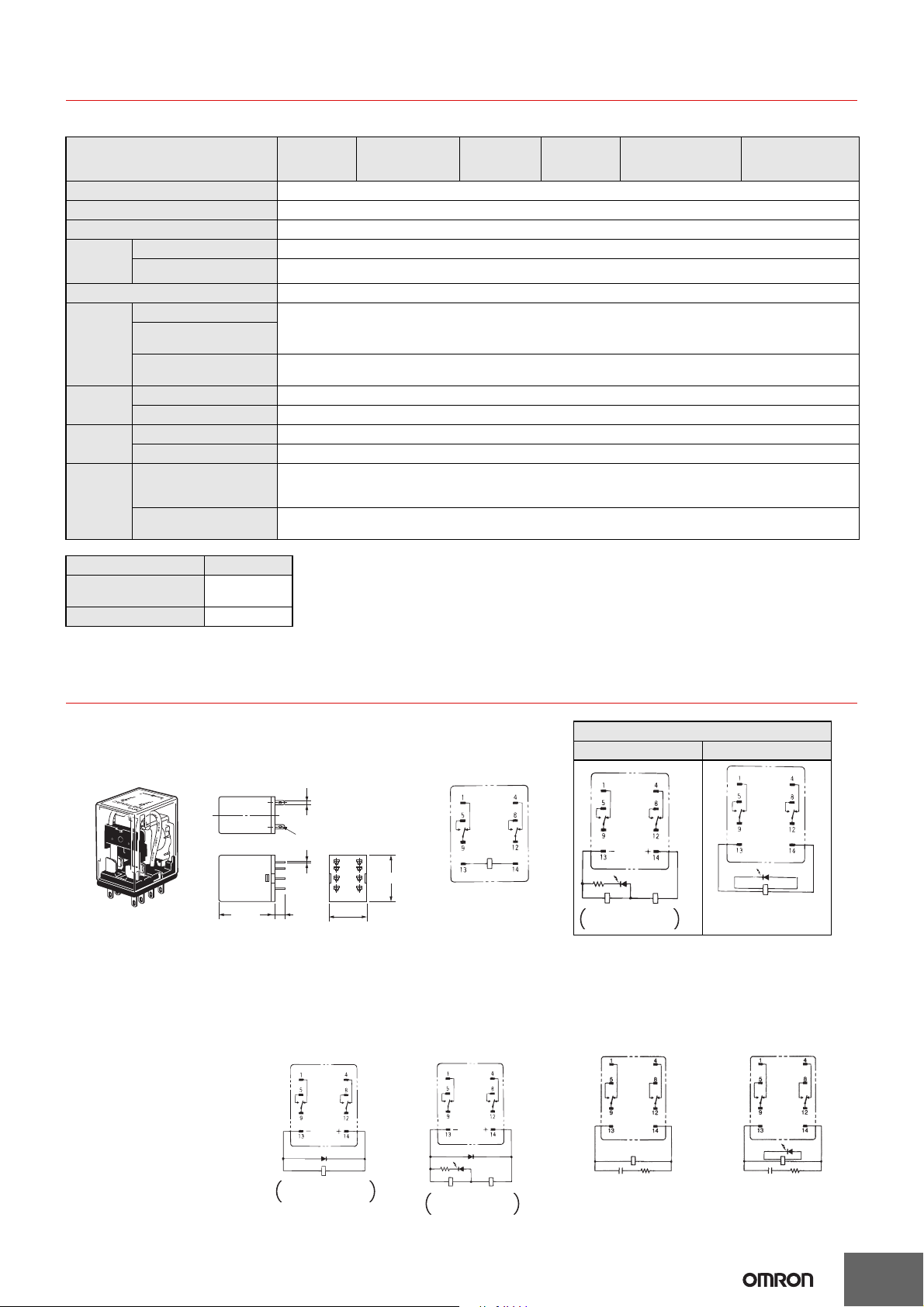

3
MY
Characteristics
Dimensions (Unit: mm)
Item Type
Standard
models
Models with built-
in operation
indicators
Models with
built-in CR
circuits
Models with
built-in
diodes
Model with built-in
operation indicator
and diode
Model with built-in
operation indicator
and CR circuit
Contact resistance
*1
50 mΩ max.
Operation time
*2
20 ms max.
Release time
*2
20 ms max.
Maximum
operating
frequency
Mechanical 18,000 operations/h
Rated load 1,800 operations/h
Insulation resistance
*3
100 MΩ min.
Dielectric
strength
Between coil and contacts
2,000 VAC at 50/60 Hz for 1 min.
Between contacts of
different polarity
Between contacts of the
same polarity
1,000 VAC at 50/60 Hz for 1 min.
Vibration
resistance
Destruction 10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude)
Malfunction 10 to 55 to 10 Hz, 0.5-mm single amplitude (1.0-mm double amplitude)
Shock
resistance
Destruction 1,000 m/s
2
Malfunction 200 m/s
2
Endurance
Mechanical
AC: 50,000,000 operations min.
DC: 100,000,000 operations min.
(switching frequency: 18,000 operations/h)
Electrical
*4
500,000 operations min.
(rated load, switching frequency: 1,800 operations/h)
Item Number of poles 2 poles Note: These are initial values.
Failure rate P value
(reference value)
*5
1 mA at 5 VDC
*1. Measurement conditions: 1 A at 5 VDC using the voltage drop method.
*2. Measurement conditions: With rated operating power applied.
Ambient temperature condition: 23° C
*3. Measurement conditions: For 500 VDC applied to the same location as for dielectric strength
measurement.
*4. Ambient temperature condition: 23°C
*5. This value was measured at a switching frequency of 120 operations per minute.
Weight Approx. 35 g
MY2-D MY2N-D2 MY2-CR MY2N-CR
(The coil has no polarity.) (The coil has no polarity.)
28 max.
2.6
0.5
21.5 max.
36 max. 6.4
Eight, 1.2-dia. × 2.2 oval holes
MY2, MY2N, MY2-D, MY2N-D2, MY2-CR,
and MY2N-CR
Terminal Arrangement/In-
ternal Connections
(Bottom View)
Standard Models
(The coil has no polarity.)
Note: 1. An AC model has coil disconnection self-
diagnosis.
2. For the DC models, check the coil polarity when
wiring and wire all connections correctly.
3. The indicator is red for AC and green for DC.
4. The operation indicator indicates the
energization of the coil and does not represent
contact operation.
MY2N
DC Models AC Models
Check the coil polarity when wiring
and wire all connections correctly.
(The coil has no polarity.)
Check the coil polarity when wiring
and wire all connections correctly.
Check the coil polarity when wiring
and wire all connections correctly.
