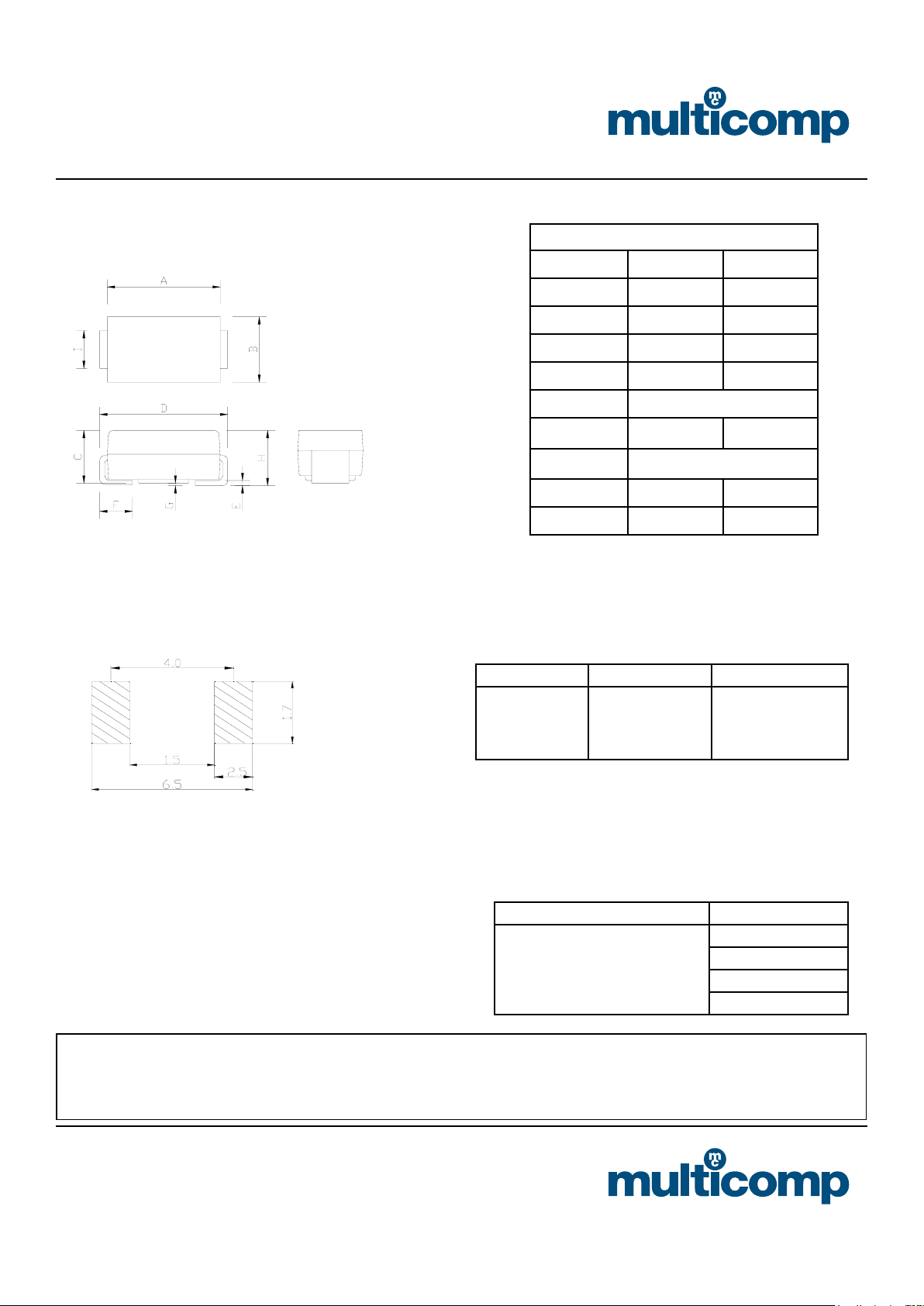

Surface Mount Rectifier
DO-214AC(SMA)
Dim. Min. Max.
A 4.25 4.65
B 2.4 2.8
C 1.85 2.15
D 4.85 5.35
E 0.2 Typ.
F 0.9 1.5
G 0.2 Max.
H 1.9 2.3
I 1.35 1.65
Dimensions : Millimetres
Dimensions : Millimetres
Package Outline Dimensions
Soldering Footprint
Device Package Shipping
RS1D-13-F
RS1J-13-F
RS1K-13-F
RS1M-13-F
DO-214AC(SMA) 5,000 / Tape & Reel
Package Information
Description Part Number
Surface Mount Rectier
RS1D-13-F
RS1J-13-F
RS1K-13-F
RS1M-13-F
Part Number Table
