RT7736
®
DS7736-04 September 2014 www.richtek.com
1
Copyright 2014 Richtek Technology Corporation. All rights reserved. is a registered trademark of Richtek Technology Corporation.
©
General Description
The RT7736 series is a high performance enhanced PWM
flyback controller with proprietary SmartJitter
TM
technology.
The innovative SmartJitter
TM
technology not only reduces
EMI emissions of SMPS when the system enters burst
switching green mode, but also eliminates output jittering
ripple.
The RT7736 is a current mode PWM controller including
built-in slope compensation, internal Leading Edge
Blanking (LEB) and cycle-by-cycle current limit. It provides
excellent green power performance, especially under light
load and no load conditions. It allows for simpler design
and reduces external component count.
This controller integrates comprehensive safety protection
functions for robust designs including input Under-Voltage
Lockout (UVLO), Over-Voltage Protection (OVP), Over-
Load Protection (OLP), Secondary Rectifier Short
Protection (SRSP), CS pin open protection and cycle-by-
cycle current limit.
The RT7736 is a cost-effective and compact solution for
NB adaptor applications. It is available in the SOT-23-6
package.
SmartJitter
TM
PWM Flyback Controller
Applications
Switching AC/DC Adaptor
DVD Open Frame Power Supply
Set-Top Box (STB)
ATX Standby Power
TV/Monitor Standby Power
PC Peripherals
NB Adaptor
Features
Proprietary SmartJitter
TM
Technology
Reducing EMI Emissions of SMPS
Output Jittering Ripple Elimination
No Load Input Power Under 100mW (RT7736G/R/L/E)
Accurate Over Load Protection
UVLO 9V/14.5V
PRO Pin for External Arbitrary OVP/OTP
IC ON/OFF Control (RT7736G/R/L)
BNO Pin for Brown-In/Out (RT7736B/D/F)
Soft Driving for EMI Noise Reduction
Driver Capability : 300mA/
−−
−−
−300mA
High Noise Immunity
RoHS Compliant and Halogen Free

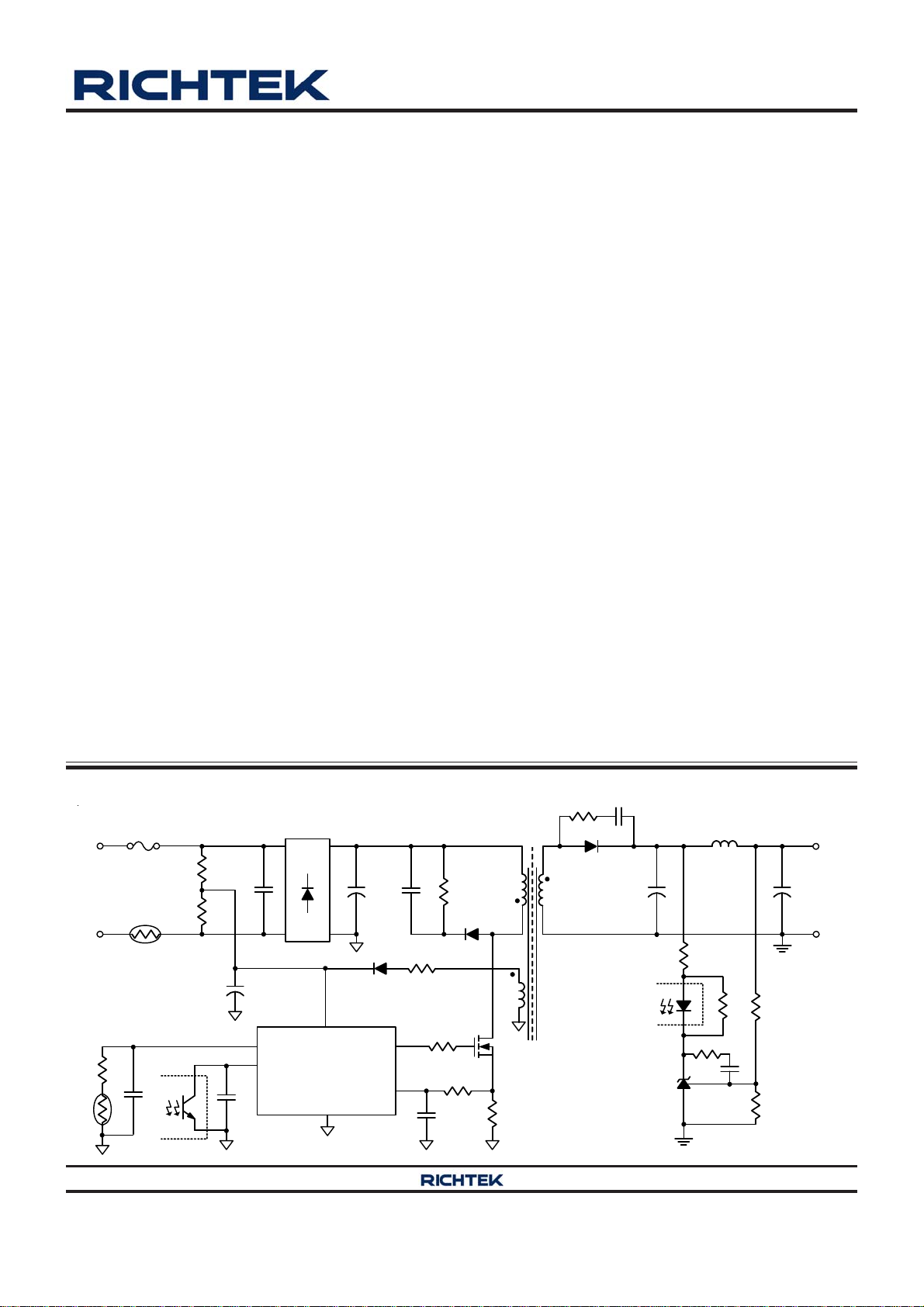

Simplified Application Circuit
AC Mains
(90V to 265V)
PRO
COMP
GND
GATE
CS
RT7736
VDD
+
+
Vo+
Vo-
