3
DS7736-04 September 2014
RT7736
www.richtek.com
©
Copyright 2014 Richtek Technology Corporation. All rights reserved. is a registered trademark of Richtek Technology Corporation.

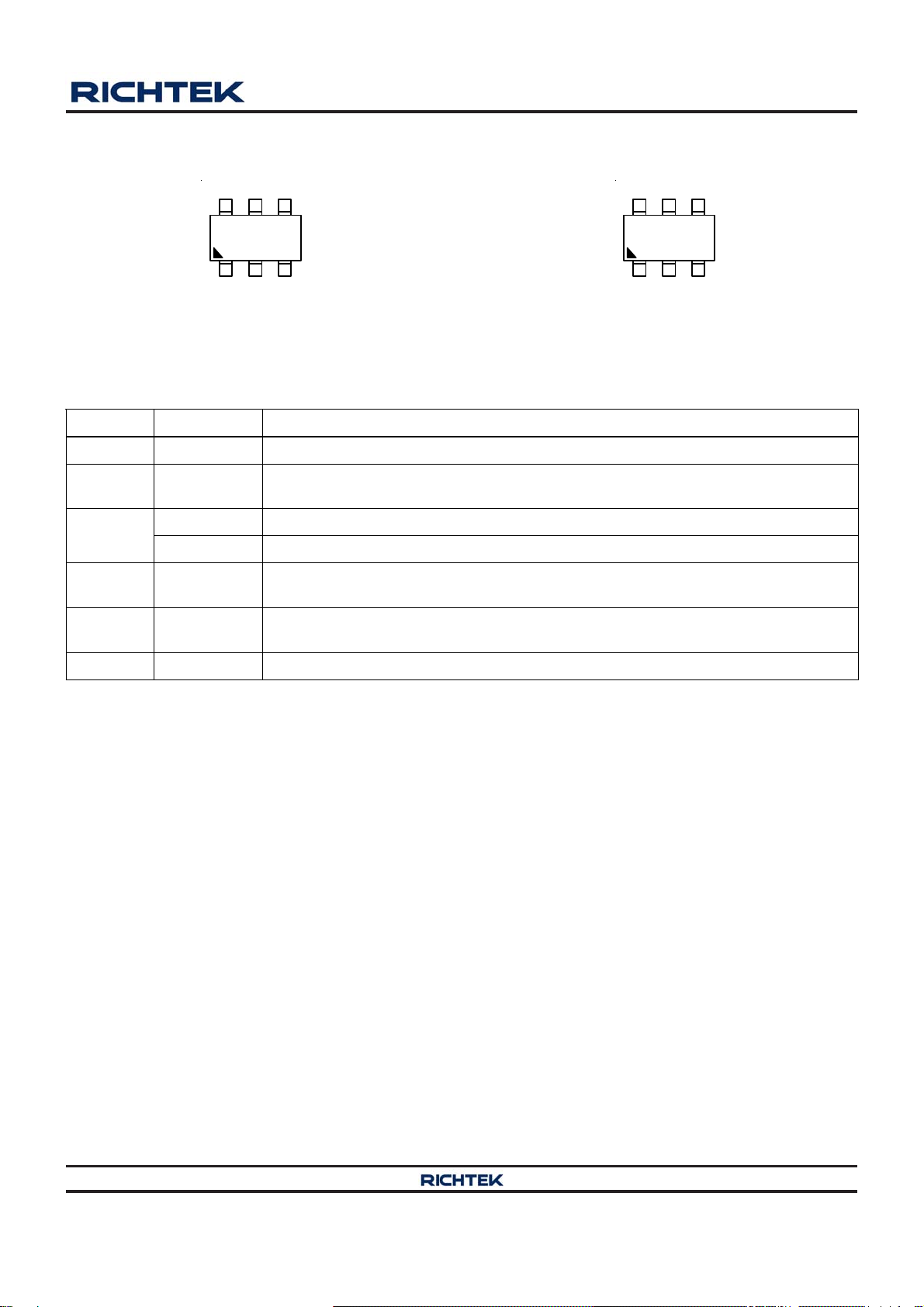

Pin Configurations
(TOP VIEW)
RT7736B/D/F
SOT-23-6
GND
COMP
BNO
GATE
VDD CS
4
23
56
RT7736G/R/L/E
SOT-23-6
GND
COMP
PRO
GATE
VDD CS
4
23
56
Pin No. Pin Name Pin Function
1 GND Ground of the Controller.
2 COMP
Feedback Voltage Input. Connect an opto-coupler to close the control loop and
achieve output voltage regulation.
3
PRO Protection Input for OVP, OTP or ON/OFF Control. (RT7736G/R/L/E)
BNO Brown-In/Out Detection Input for RT7736B/D/F Only.
4 CS
Current Sense Input. The current sense resistor between this pin and GND is used for
current limit setting.
5 VDD
Supply Voltage Input. The controller will be enabled when VDD exceeds V
TH_ON
(14.5V typ.) and disabled when VDD decreases lower than V
TH_OFF
(9V typ.)
6 GATE Gate Driver Output for External Power MOSFET.
Functional Pin Description
