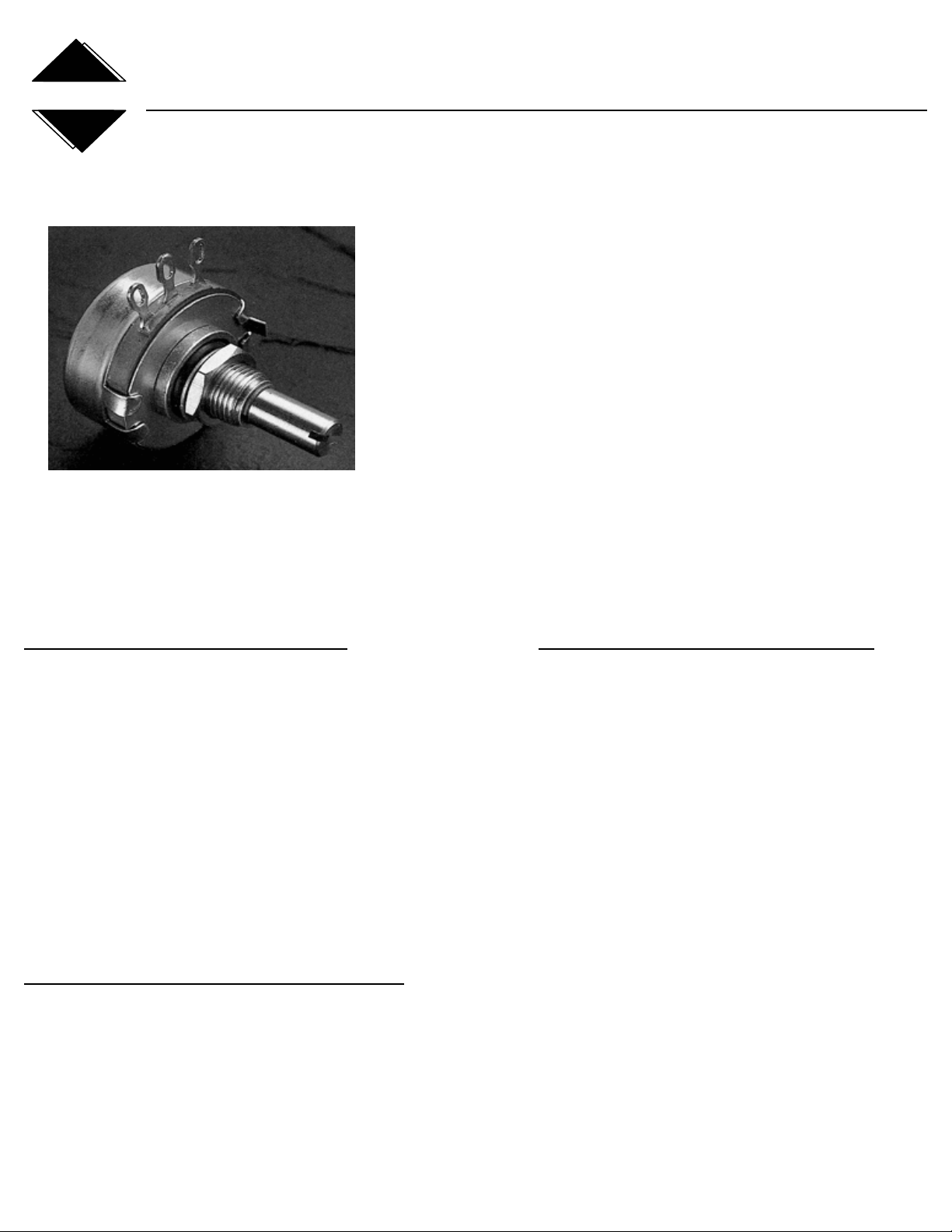

PRECISION MIL Style RV4
Precision series K/RV4 potentiometers are suitable for
both military and commercial applications. They can
easily be customized to meet special requirements.
FEATURES: OPTIONS:
• hot molded carbon element • custom shafts and bushings
• gold-plated terminals
• special tapers
• stainless-steel shaft and housing • fourth (center) terminal
• quality meeting or exceeding MIL-R-94 - QPL listed • high life
• attached switch
ELECTRICAL SPECIFICATIONS: MECHANICAL SPECIFICATIONS:
Resistance range, linear taper: 50 Ω to 5 Meg Ω Mechanical rotation: 314°
Resistance range, logarithmic taper: 150 Ω to 1 Meg Ω Operating torque: 1 oz/in to 6 oz/in
Resistance tolerance: ±10% or ±20% Rotational life: 25,000 cycles
Resistance taper: linear, logarithmic, reverse logarithmic;
other tapers by special order
Power rating: 2 watts at 70°C derated to 0 watts at 120°C
Insulation resistance:
dry: 10K Meg Ω
wet: 100K Meg Ω
Dielectric strength: 900 V RMS at sea level
Operating voltage: 500 V, subject to power rating
ENVIRONMENTAL SPECIFICATIONS:
Operating temperature: − 65°C to +125°C
Resistance to soldering heat: 350°C for 5 seconds
Humidity range: per MIL-R-94
V
ibration range: per MIL-R-94
Shock resistance: per MIL-R-94
Load life: 1000 hours at 70°C
Precision Series K - 2 Watt 1/4" shaft diameter
