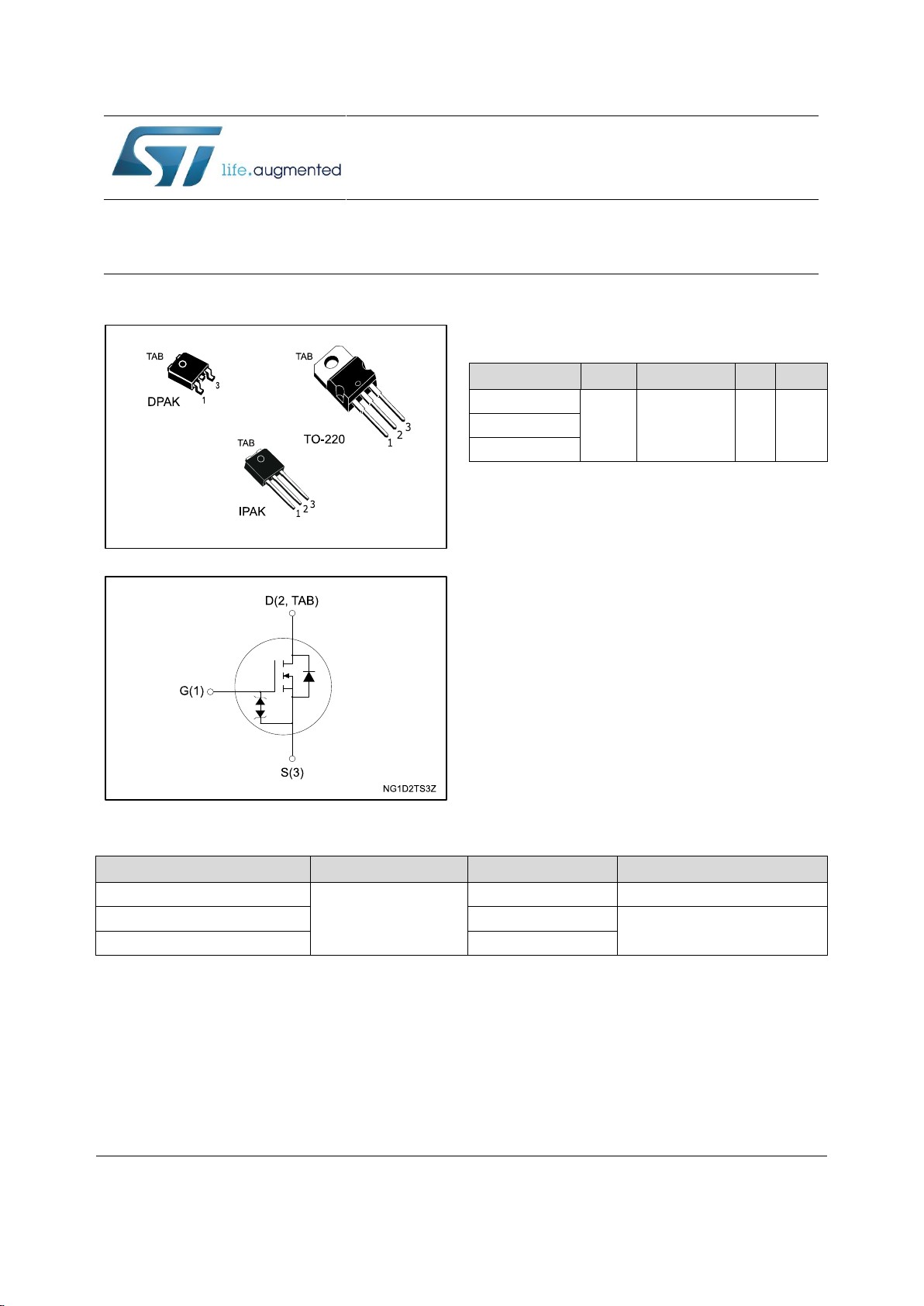

STD11N65M2, STP11N65M2,
STU11N65M2
N-channel 650 V, 0.6 Ω typ., 7 A MDmesh™ M2
Power MOSFET in DPAK, TO-220 and IPAK packages
Datasheet - production data
Figure 1: Internal schematic diagram
Features
Order code
V
DS
R
DS(on)
max.
I
D
P
TOT
STD11N65M2
650 V
0.68 Ω
7 A
85 W
STP11N65M2
STU11N65M2
Extremely low gate charge
Excellent output capacitance (C
OSS
) profile
100% avalanche tested
Zener-protected
Applications
Switching applications
Description
These devices are N-channel Power MOSFETs
developed using MDmesh™ M2 technology.
Thanks to their strip layout and improved vertical
structure, these devices exhibit low on-resistance
and optimized switching characteristics,
rendering them suitable for the most demanding
high efficiency converters.
Table 1: Device summary
Order code
Marking
Package
Packing
STD11N65M2
11N65M2
DPAK
Tape and reel
STP11N65M2
TO-220
Tube
STU11N65M2
IPAK
