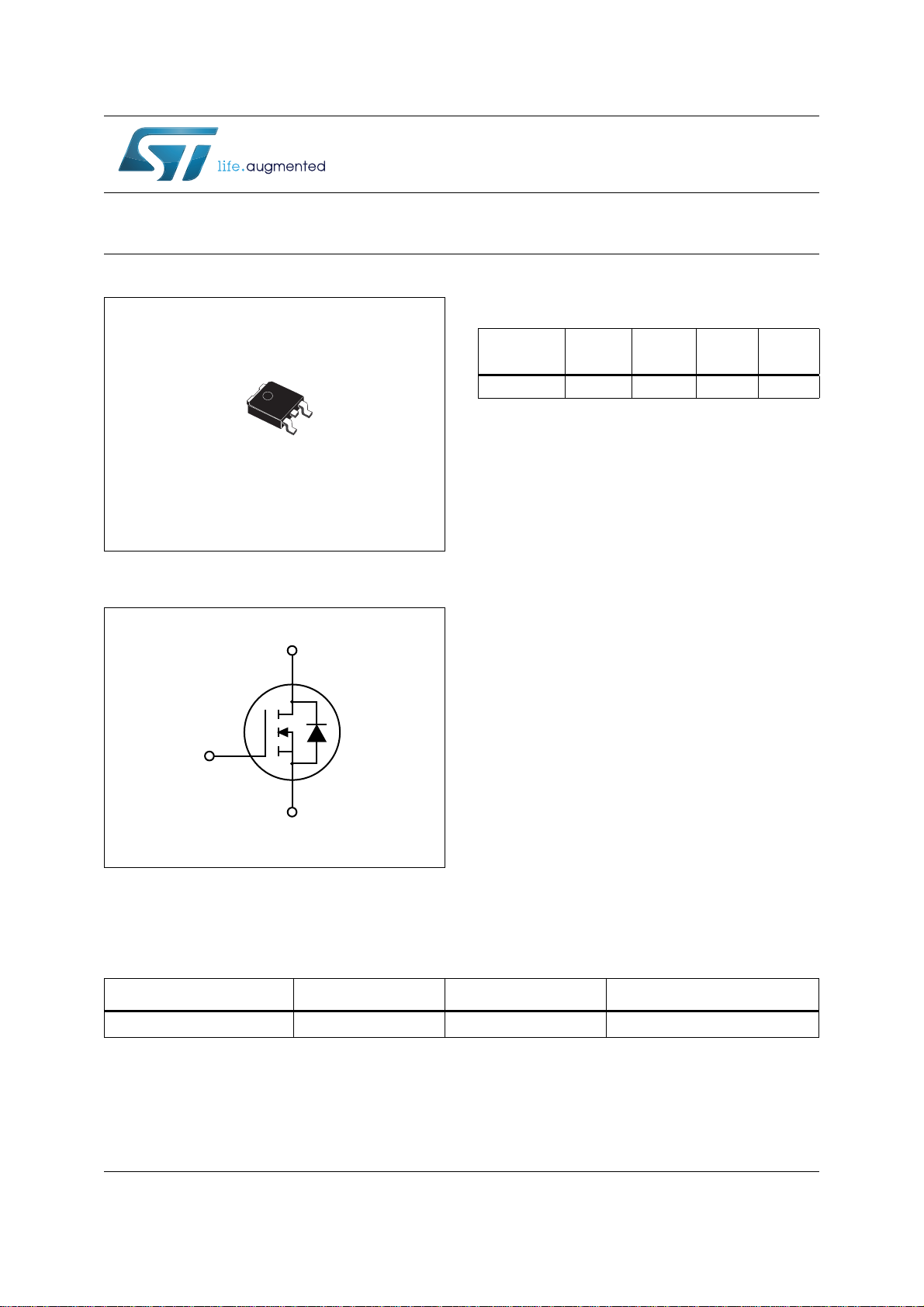

This is information on a product in full production.
May 2015 DocID024372 Rev 3 1/16
STD25NF20
Automotive-grade N-channel 200 V, 0.10 Ω typ., 18 A
STripFET™ Power MOSFET in a DPAK package
Datasheet
-
production data
Figure 1. Internal schematic diagram
Features
• Designed for automotive applications and
AEC-Q101 qualified
• Extremely low gate charge
• Exceptional dv/dt capability
• Low gate input resistance
• 100% avalanche tested
Applications
• Switching applications
Description
This N-channel enhancement mode Power
MOSFET benefits from the latest refinement of
STMicroelectronics' unique “single feature size“
strip-based process, which decreases the critical
alignment steps to offer exceptional
manufacturing reproducibility. The result is a
transistor with extremely high packing density for
low on-resistance, rugged avalanche
characteristics and low gate charge.
DPAK
1
3
TAB
$0Y
'7$%
*
6
Order code V
DS
R
DS(on)
max
I
D
P
TOT
STD25NF20 200 V 0.125 Ω 18 A 110 W
Table 1. Device summary
Order code Marking Package Packing
STD25NF20 25NF20 DPAK Tape and reel
