June 2016
DocID025318 Rev 4
1/22
This is information on a product in full production.
www.st.com
STD5N60M2, STP5N60M2,
STU5N60M2
N-channel 600 V, 1.3 Ω typ., 3.5 A MDmesh™ M2
Power MOSFET in DPAK, TO-220 and IPAK packages
Datasheet - production data

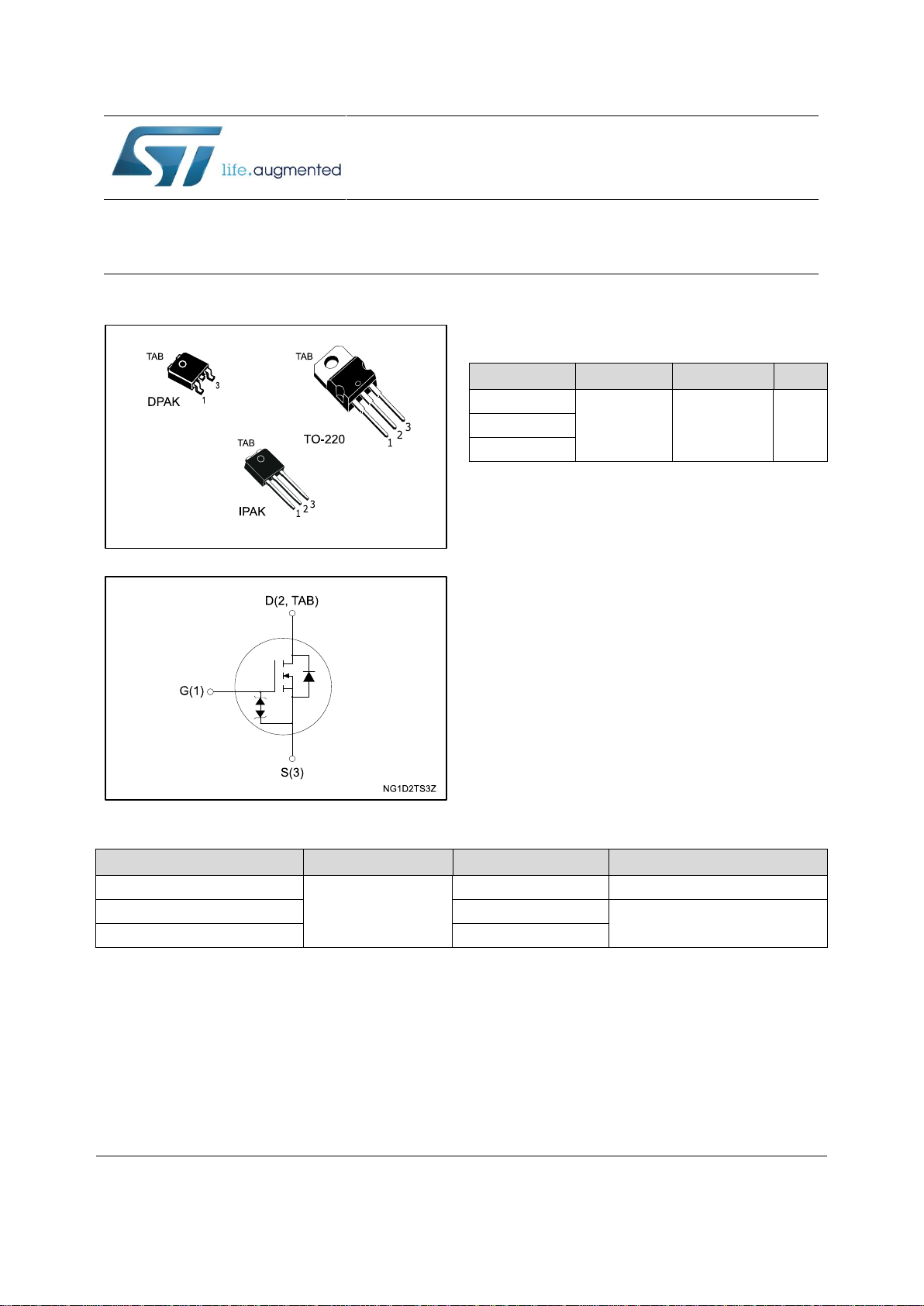

Figure 1: Internal schematic diagram
Features
Order code
V
DS
@ T
Jmax
R
DS(on)
max.
I
D
STD5N60M2
650 V
1.4 Ω
3.5 A
STP5N60M2
STU5N60M2
Extremely low gate charge
Excellent output capacitance (C
OSS
) profile
100% avalanche tested
Zener-protected
Applications
Switching applications
Description
These devices are N-channel Power MOSFETs
developed using MDmesh™ M2 technology.
Thanks to their strip layout and improved vertical
structure, these devices exhibit low on-resistance
and optimized switching characteristics,
rendering them suitable for the most demanding
high efficiency converters.
Table 1: Device summary
Order code
Marking
Package
Packing
STD5N60M2
5N60M2
DPAK
Tape and reel
STP5N60M2
TO-220
Tube
STU5N60M2
IPAK
