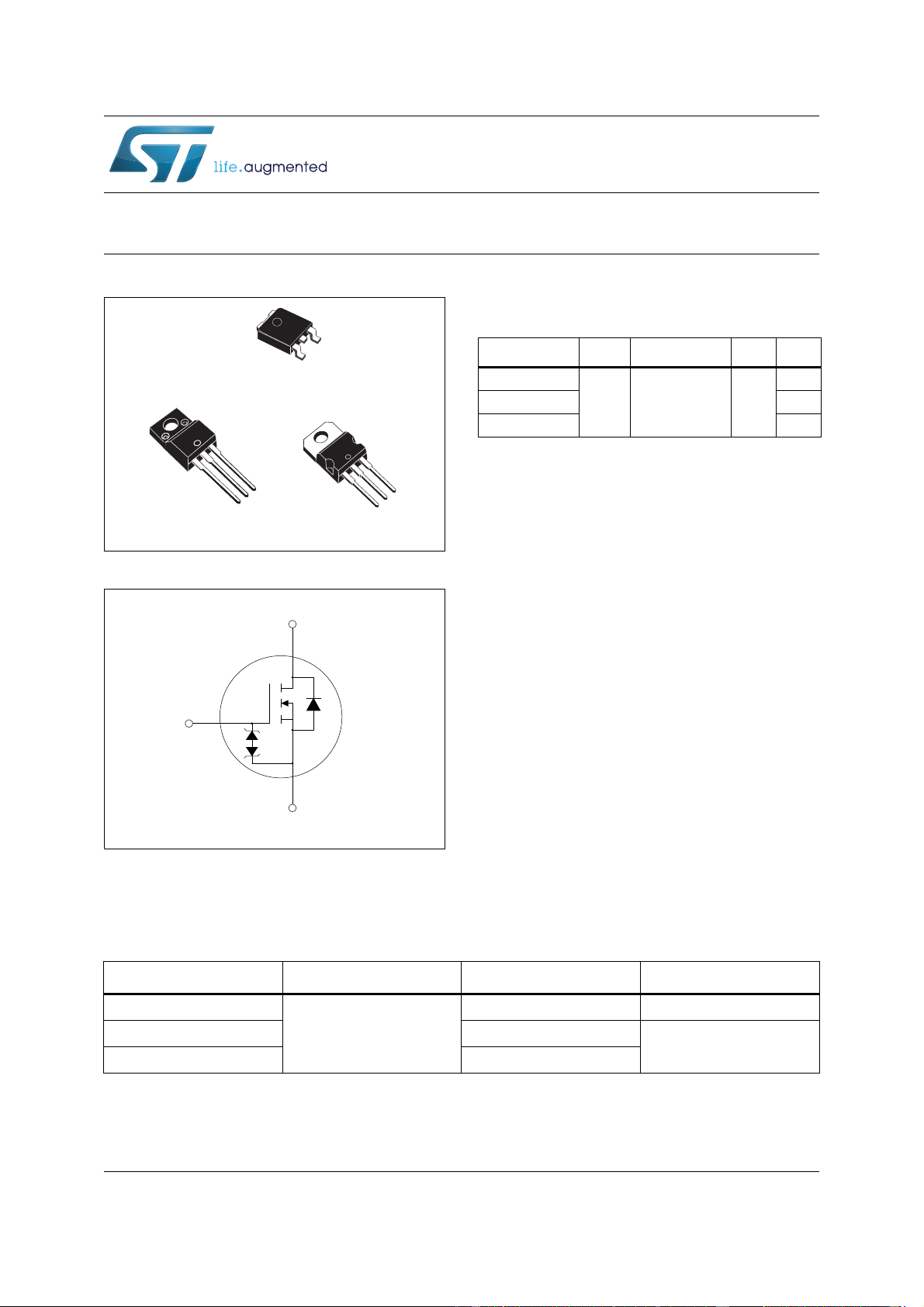

This is information on a product in full production.
September 2013 DocID024639 Rev 3 1/19
19
STD5N95K5, STF5N95K5,
STP5N95K5
N-channel 950 V, 2 Ω typ., 3.5 A Zener-protected SuperMESH™ 5
Power MOSFETs in DPAK, TO-220FP and TO-220 packages
Datasheet
−
production data
Figure 1. Internal schematic diagram
Features
• TO-220 worldwide best R
DS(on)
• Worldwide best FOM (figure of merit)
• Ultra low gate charge
• 100% avalanche tested
• Zener-protected
Applications
• Switching applications
Description
These N-channel Zener-protected Power
MOSFETs are designed using ST’s revolutionary
avalanche-rugged very high voltage
SuperMESH™ 5 technology, based on an
innovative proprietary vertical structure. The
result is a dramatic reduction in on-resistance,
and ultra-low gate charge for applications which
require superior power density and high
efficiency.
'7$%
*
6
AM01476v1
TO-220
TO-220FP
1
2
3
1
2
3
TAB
1
3
TAB
DPAK
Order codes V
DS
R
DS(on)
max I
D
P
TOT
STD5N95K5
950 V 2.5 Ω 3.5 A
70 W
STF5N95K5 25 W
STP5N95K5 70 W
Table 1. Device summary
Order codes Marking Package Packaging
STD5N95K5
5N95K5
DPAK Tape and reel
STF5N95K5 TO-220FP
Tube
STP5N95K5 TO-220
www.st.com
