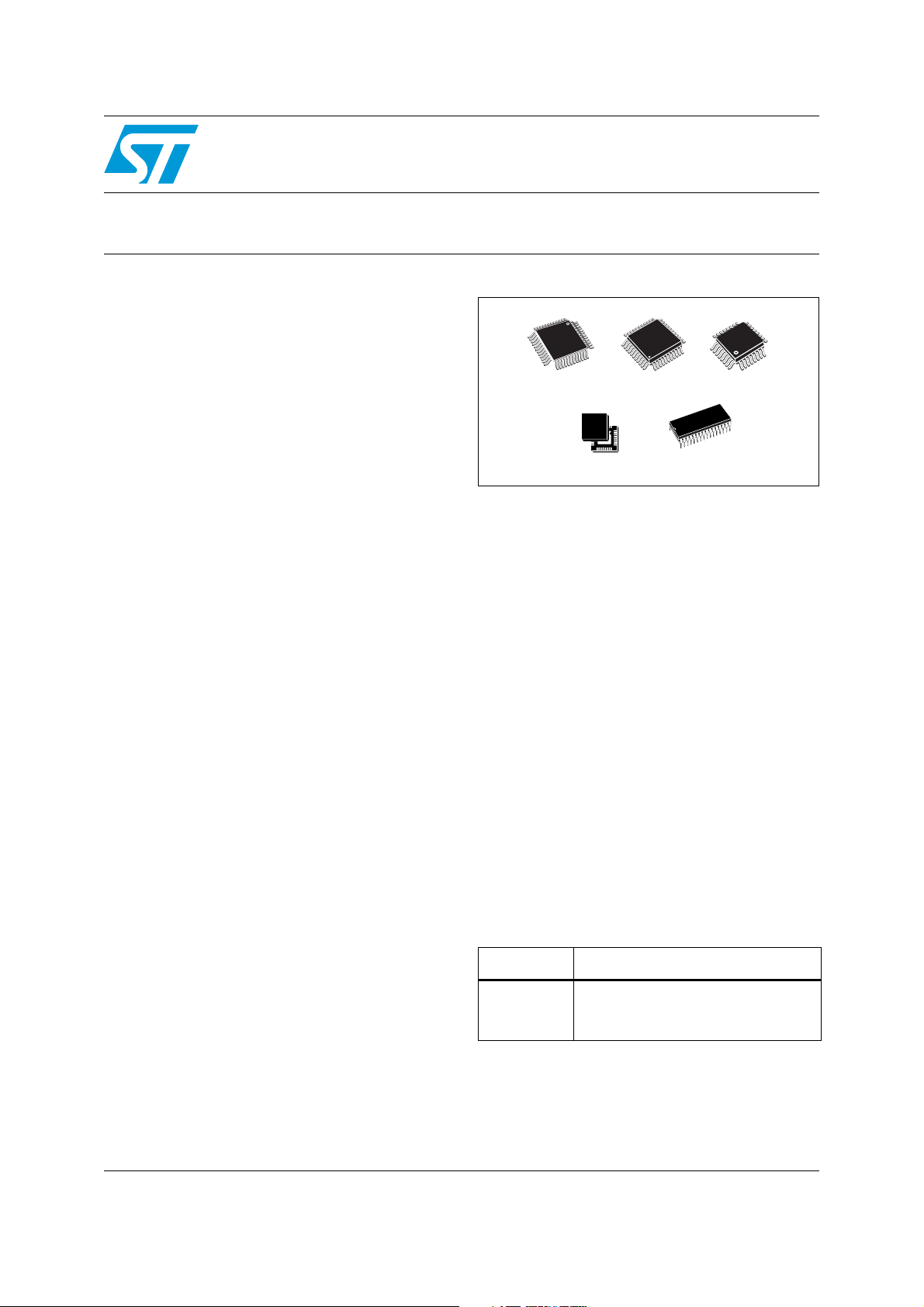

June 2009 Doc ID 14771 Rev 8 1/99
1
STM8S105xx
Access line, 16 MHz STM8S 8-bit MCU, up to 32 Kbytes Flash,
integrated EEPROM,10-bit ADC, timers, UART, SPI, I²C
Features
■
Core
– 16 MHz advanced STM8 core with Harvard
architecture and 3-stage pipeline
– Extended instruction set
■
Memories
– Medium-density Flash/EEPROM:
– Program memory up to 32 Kbytes; data
retention 20 years at 55°C after 10 kcycles
– Data memory up to 1 Kbytes true data
EEPROM; endurance 300 kcycles
– RAM: Up to 2 Kbytes
■
Clock, reset and supply management
– 2.95 V to 5.5 V operating voltage
– Flexible clock control, 4 master clock
sources:
– Low power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low power 128 kHz RC
– Clock security system with clock monitor
– Power management:
– Low power modes (wait, active-halt, halt)
– Switch-off peripheral clocks individually
– Permanently active, low consumption
power-on and power-down reset
■
Interrupt management
– Nested interrupt controller with 32
interrupts
– Up to 37 external interrupts on 6 vectors
■
Timers
– 2x 16-bit general purpose timers, with 2+3
CAPCOM channels (IC, OC or PWM)
– Advanced control timer: 16-bit, 4 CAPCOM
channels, 3 complementary outputs, dead-
time insertion and flexible synchronization
– 8-bit basic timer with 8-bit prescaler
– Auto wake-up timer
– Two watchdog timers: Window watchdog
and independent watchdog
■
Communications interfaces
– UART with clock output for synchronous
operation, Smartcard, IrDA, LIN
– SPI interface up to 8 Mbit/s
–I
2
C interface up to 400 Kbit/s
■
Analog-to-digital converter (ADC)
– 10-bit,
±
1 LSB ADC with up to 10
multiplexed channels, scan mode and
analog watchdog
■
I/Os
– Up to 38 I/Os on a 48-pin package
including 16 high sink outputs
– Highly robust I/O design, immune against
current injection
■
Development support
– Embedded single wire interface module
(SWIM) for fast on-chip programming and
non intrusive debugging
Table 1. Device summary
Reference Part number
STM8S105xx
STM8S105K4, STM8S105K6,
STM8S105S4, STM8S105S6,
STM8S105C4, STM8S105C6
LQFP48 7x7
LQFP32 7x7
VFQFPN32 5x5
LQFP44 10x10
32
1
SDIP32 400 ml
www.st.com
