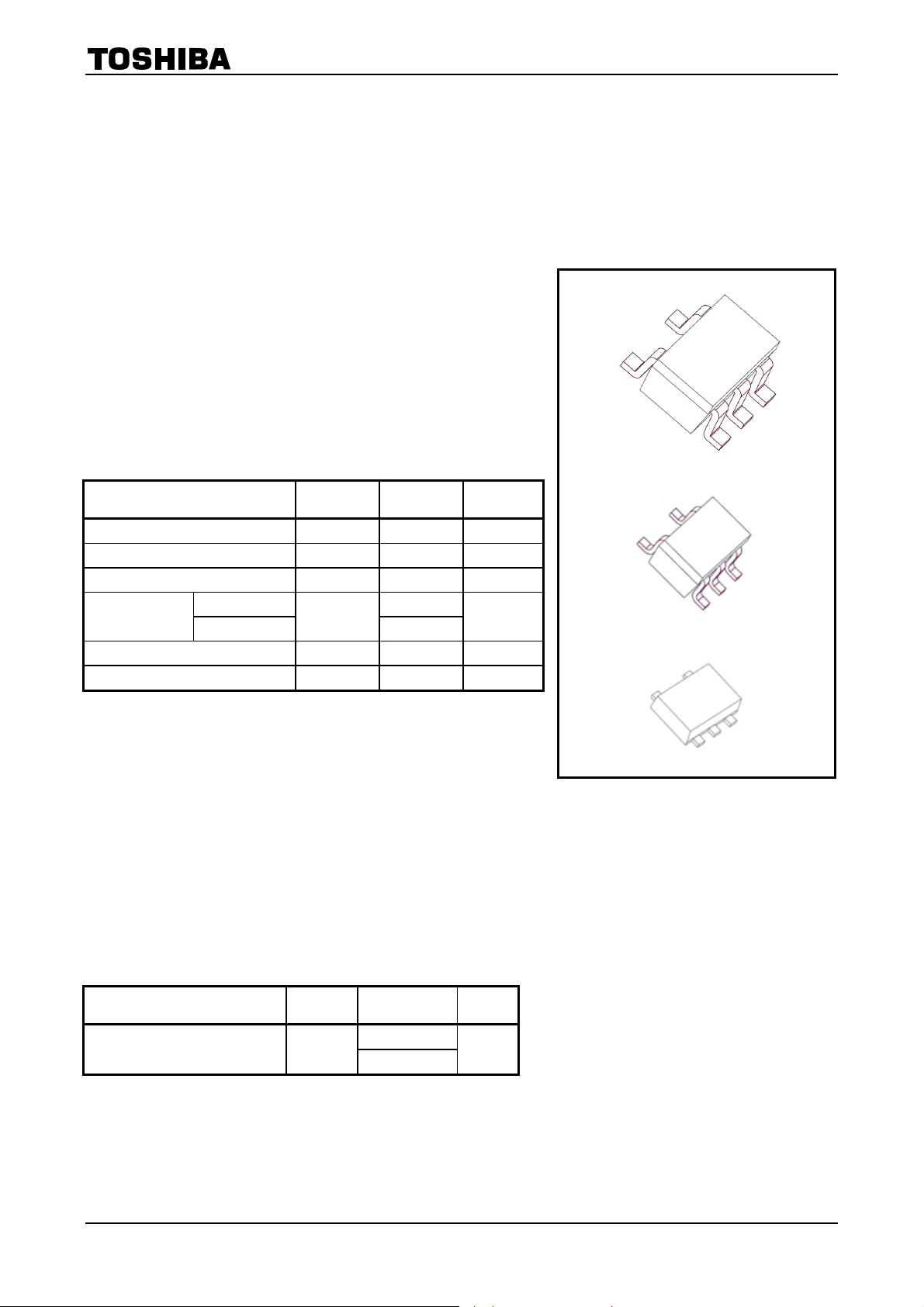

TC75S101F/FU/FE
2011-04-22
1
TOSHIBA CMOS Linear Integrated Circuit Silicon Monolithic
TC75S101F,TC75S101FU,TC75S101FE
Single Operational Amplifier (Input and Output Full Range)
Features
Input and Output Full Range
Low-input offset voltage : V
IO
= 3.0 mV (max.)
Low-input bias current : I
I
= 0.1 pA (typ.)
Built-in phase-compensated op-amp, obviating the need for any
external device
Ultra-small package
Absolute Maximum Ratings (Ta = 25°C)
Product device does not use these for open-loop configuration.
Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling
Precautions”/”Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated
failure rate, etc)
Operating Conditions
TC75S101F
TC75S101FU
TC75S101FE
Weight
SSOP5-P-0.95 : 14 mg (typ.)
SSOP5-P-0.65A : 6.2 mg (typ.)
SON5-P-0.50 : 3.0 mg (typ.)
Characteristics Symbol Rating Unit
Supply voltage V
DD
, V
SS
6 V
Differential input voltage DV
IN
±6 V
Input voltage V
IN
V
DD
to V
SS
V
TC75S101F/FU 200
Power dissipation
TC75S101FE
P
D
100
mW
Operating temperature T
opr
-40 to 85 °C
Storage temperature T
stg
-55 to 125 °C
Characteristics Symbol Rating Unit
1.5 to 5.5
Supply voltage V
DD
, V
SS
±0.75 to 2.75
V
(SMV)
(USV)
(ESV)
SON5-P-0.50
SSOP5-P-0.95
SSOP5-P-0.65
A
