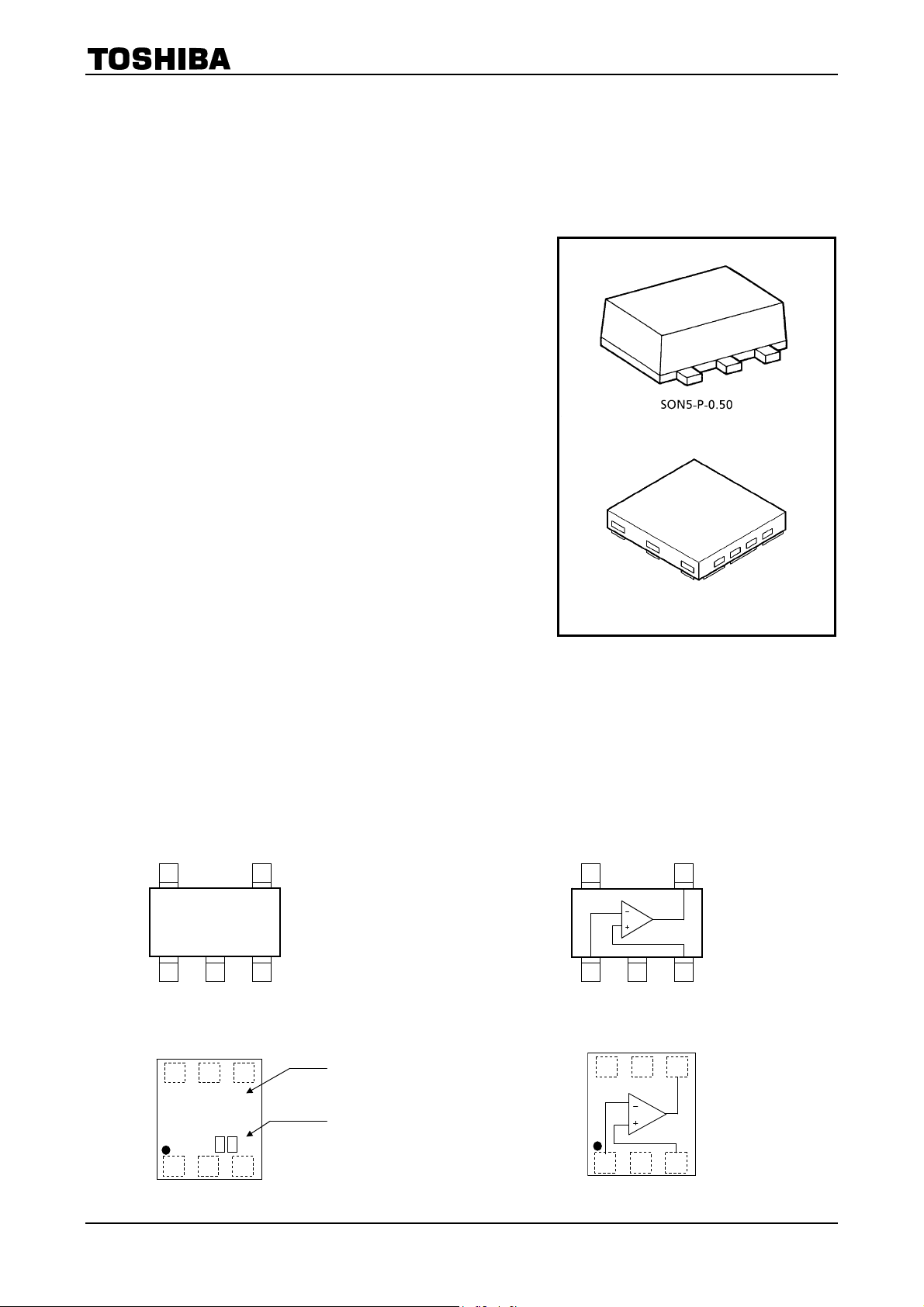

TC75S58AFE/AFC
2009-01-16
1
TOSHIBA CMOS Linear Integrated Circuit Silicon Monolithic
TC75S58AFE,TC75S58AFC
Single Comparator (Open-Drain Output)
The TC75S58AFE and TC75S58AFC are CMOS general-purpose
single comparators. The devices can operate from a single supply
voltage and are designed for a lower supply-current than
conventional general-purpose bipolar comparators. The output is
designed for Open-Drain Output and can supply a higher voltage
than the power supply. Therefore, it is possible to pull-up the
voltage to a level higher than that of the power supply. The
Open-Drain Output can be wired-OR with another Open-Drain
Output circuit.
* Output voltage should not exceed the maximum rating.
Feature
• Low Supply Current: I
DD
= 10 μA (typ.)
• Single Power Supply Operation
• Wide Common Mode Input : V
SS
to V
DD
− 0.9 V
• Open-Drain Output Circuit
• Low Input Bias Current
• Small Package
Marking
(top view) Pin Assignment (top view)
TC75S58AFE
TC75S58AFC
TC75S58AFE
TC75S58AFC
CSON6-P-0.45
Weight
SON5-P-0.50 : 0.003 g (typ.)
CSON6-P-0.45 : 0.002 g (typ.)
V
DD
5
IN (+)
4
1 3
V
SS
2
OUT
IN (−)
6 5 4
1 2 3
IN (-)
V
ss
IN (+)
OUT V
DD
NC
T
G
6 5 4
1 2 3
Marking
Monthly Indication
T G
4 5
1 2 3
TC75S58AFE
TC75S58AFC
