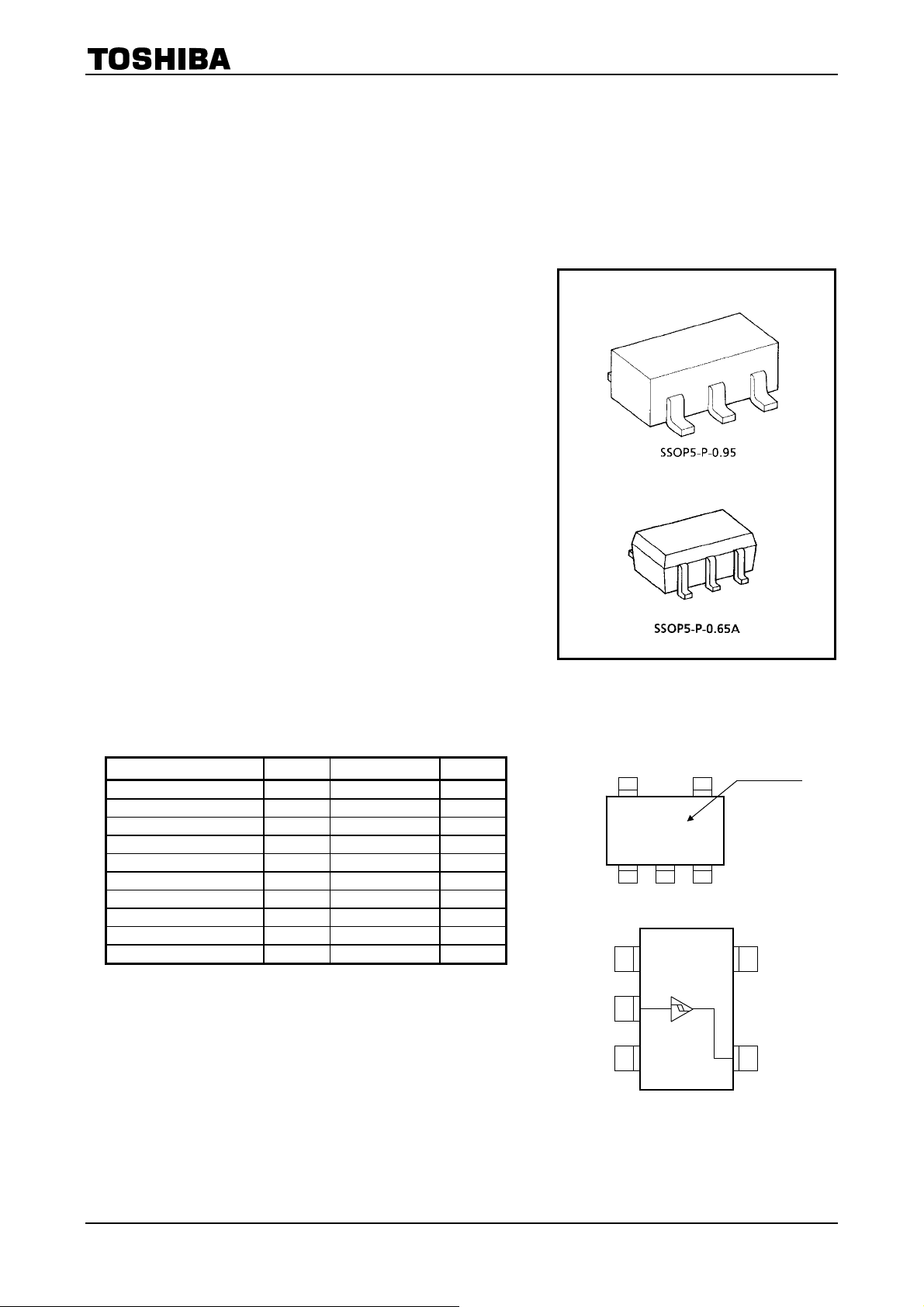

TC7SET17F/FU
2007-11-01
1
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC7SET17F,TC7SET17FU
Schmitt Non-Inverter
Features
• High speed ................................. t
pd
= 5.0 ns (typ.)
at V
CC
= 5 V
• Low power dissipation .............. I
CC
= 2 μA (max)
at Ta = 25°C
• Compatible with TTL outputs.
• 5.5V tolerant input.
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics Symbol Rating Unit
Supply voltage range V
CC
−0.5~7.0 V
DC input voltage V
IN
−0.5~7.0 V
DC output voltage V
OUT
−0.5~V
CC
+ 0.5 V
Input diode current I
IK
−20 mA
Output diode current I
OK
±20 mA
DC output current I
OUT
±25 mA
DC V
CC
/ground current I
CC
±50 mA
Power dissipation P
D
200 mW
Storage temperature T
stg
−65~150 °C
Lead temperature (10 s) T
L
260 °C
Note: Using continuously under heavy loads (e.g. the application
of high temperature/current/voltage and the significant
change in temperature, etc.) may cause this product to
decrease in the reliability significantly even if the operating
conditions (i.e. operating temperature/current/voltage, etc.)
are within the absolute maximum ratings and the operating
ranges.
Please design the appropriate reliability upon reviewing the
Toshiba Semiconductor Reliability Handbook (“Handling
Precautions”/Derating Concept and Methods) and individual
reliability data (i.e. reliability test report and estimated failure
rate, etc).
TC7SET17F
TC7SET17FU
Weight
SSOP5-P-0.95 : 0.016 g (typ.)
SSOP5-P-0.65A : 0.006 g (typ.)
GND
NC
IN A
1
2
3
5
4
V
CC
OUT Y
Pin Assignment
(top view)
Type name
G L
Marking
