描述:
STMICROELECTRONICS TIP36C 单晶体管 双极, PNP, 100 V, 3 MHz, 125 W, 25 A, 50 hFE
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
引脚图在P4Hot
电气规格在P2
导航目录
TIP36C数据手册
Page:
of 4 Go
若手册格式错乱，请下载阅览PDF原文件
C
omplemen
t
ary
Power
T
r
ansis
t
or
www
.element14.com
www
.far
nell.com
www
.newark.com
Page <4>
14/02/13 V1.0

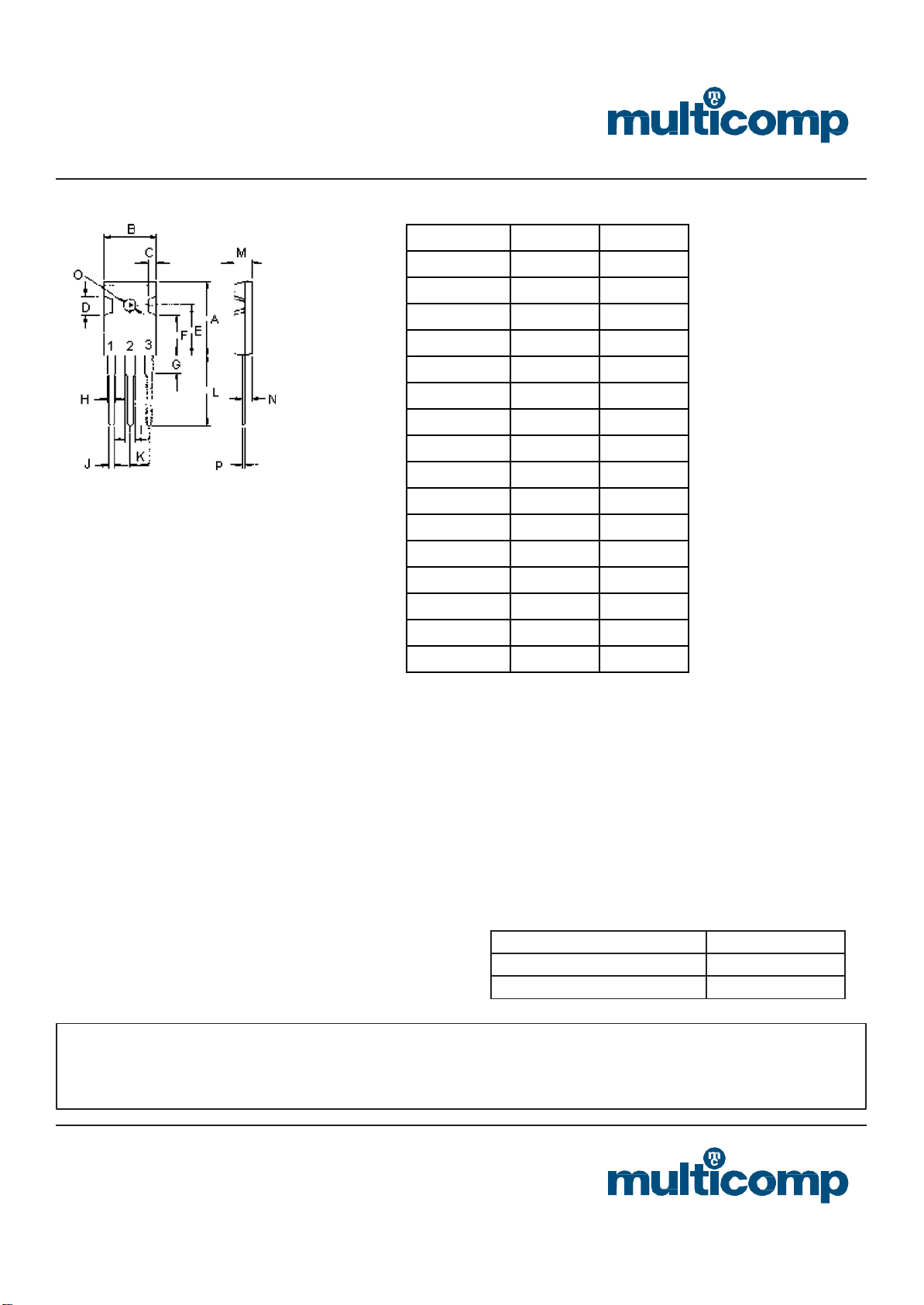

Dimensions
Min.
Max.
A
20.63 22.38
B 15.38 16.2
C 1.9 2.7
D 5.1 6.1
E 14.81 15.22
F
11.72 12.84
G 4.2 4.5
H 1.82 2.46
I
2.92 3.23
J 0.89 1.53
K
5.26 5.66
L 18.5 21.5
M 4.68 5.36
N 2.4 2.8
O 3.25 3.65
P 0.55 0.7
Pin Configuration:
1. Base
2. Collector
3. Emitter
Dimensions : Millimetres
Part Number Table
Description Part Number
Transistor, NPN, TO-247 TIP35C
Transistor, PNP, TO-247 TIP36C
Important Notice : This data sheet and its contents (the “Information”) belong to the members of the Premier Farnell group of companies (the “Group”) or are licensed to it. No licence is granted
for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any
error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any
assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence.
Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012.
