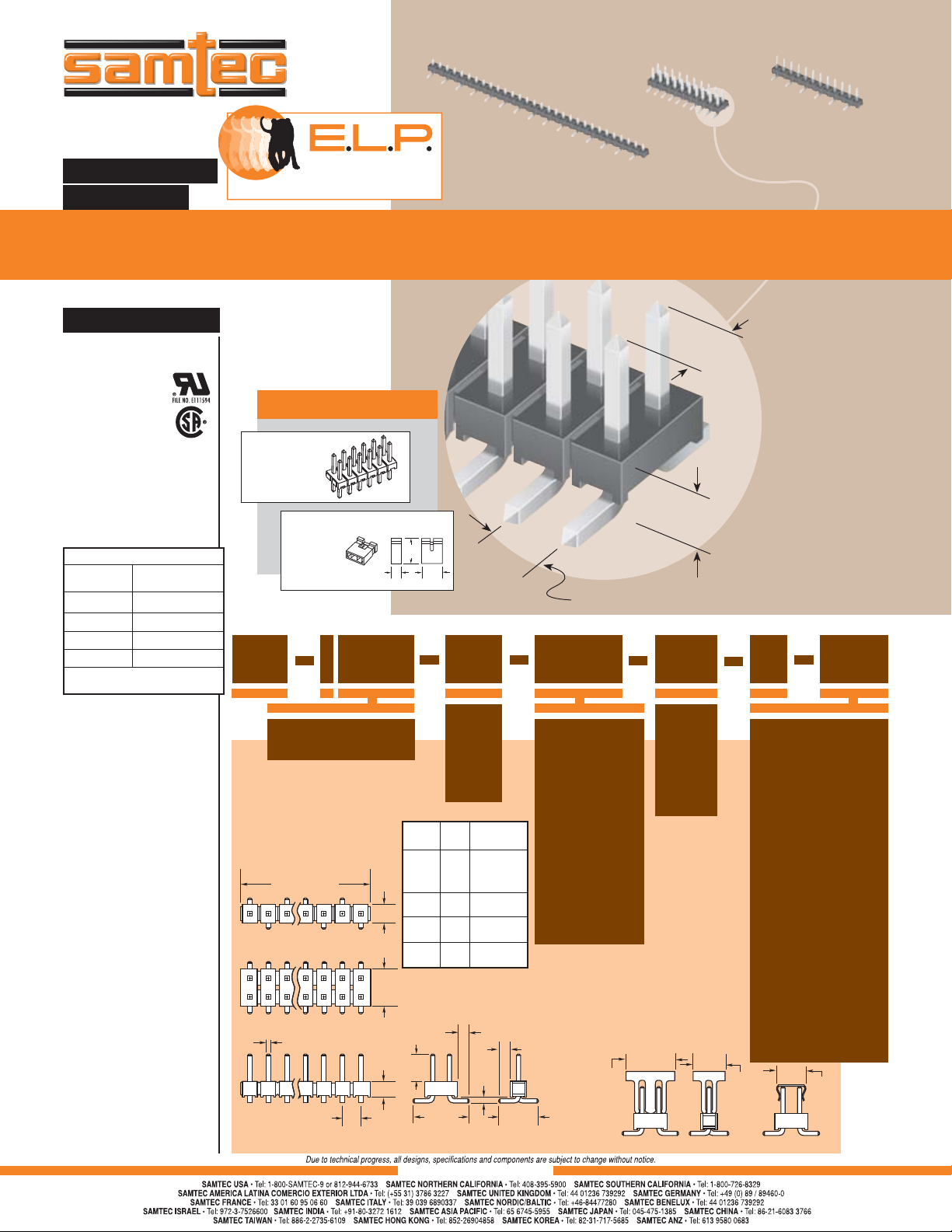

(2,00mm) .0787"
TMM SERIES
TMM–130–05–L–S–SM
(2,00mm)
.0787" pitch
Available with optional
• Pick & Place Pads
• Alignment pins
• Tape & reel packaging
(2,00mm) .0787" pitch
(2,77mm)
.109" Low Profi le
TMM–110–01–T–D–SM
TMM–112–01–F–S–SM
WWW.SAMTEC.COM
TMM
Mates with:
CLT, SQT, SQW, ESQT,
TLE, SMM, MMS,
TCSD, TLSD
1
NO. PINS
PER ROW
LEAD
STYLE
OTHER
OPTION
PLATING
OPTION
ROW
OPTION
SM
–S
= Single
Row
–D
= Double
Row
Specify
LEAD
STYLE
from
chart
below.
–A
= Alignment Pin
(Metal or plastic at
Samtec’s discretion)
(5 positions minimum)
(–D only)
–“XXX”
= Polarized Position
(Specify position of
omitted pin)
–M
= Metal Pick & Place Pad
(4 positions minimum)
(-T plating not available)
(–D only)
–P
= Pick & Place Pad
(3 positions minimum)
–TR
= Tape & Reel Pkg.
(3 positions minimum)
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
02 thru 40
(5,08)
.200
x
(10,16)
.400
(5,00)
.197
x
(8,00)
.315
(6,60)
.260
(4,83)
.190
(1,27)
.050
(1,27)
.050
TYP
(1,27)
.050 TYP
A
(5,72)
.225
x
(3,56)
.140
(3,94)
.155
(1,50)
.059
(2,00)
.0787
(0,50) .020 SQ
No. of positions x
(2,00) .0787
(1,97)
.078
01 79
02 80
40 01
–P
–D
–S
–M
For complete specifi cations and
recommended PCB layouts
see www.samtec.com?TMM
Insulator Material:
Black Liquid
Crystal Polymer
Terminal Material:
Phosphor Bronze
Plating:
Sn or Au over 50µ" (1,27µm) Ni
Operating Temp Range:
-55°C to +105°C with Tin;
-55°C to +125°C with Gold
Voltage Rating:
500 VAC mated with SQW
450 VAC mated with SQT
RoHS Compliant:
Ye s
Processing:
Lead–Free Solderable:
Ye s
SMT Lead Coplanarity:
(0,15mm) .006" max
A
LEAD
STYLE
–01
MATES
WITH
SQT, SQW,
ESQT, TLE,
SMM, MMS,
TCSD
–04
(1,91)
.075
(3,20)
.126
CLT
–05
(1,65)
.065
F-212
ALSO AVAILABLE
Through-
Hole
(4,45)
.175
(3,99)
.157
(1,95)
.077
2mm Shunt
Specify
2SN–BK–G
for 2mm
shunt with
Gold plating.
CLT-BE
–06
(4,27)
.168
–F
= Gold fl ash on post,
Matte Tin on tail
–L
= 10µ" (0,25µm)
Gold on post,
Matte Tin on tail
–S
= 30µ" (0,76µm)
Gold on post,
Matte Tin on tail
–T
= Matte Tin
SPECIFICATIONS
AMBIENT
TEMP
3.9A
3.5A
3A
2A
CURRENT RATING
Mated with
SMM
20°C
40°C
60°C
95°C
6 POSITIONS (2x3)
POWERED
LOW PROFILE SMT HEADER
EXTENDED LIFE PRODUCT
10 year Mixed Flowing Gas with 30µ" Gold
TM
1,000 cycles when mated with SMM
Note:
Other Gold plating
options available.
Contact Samtec.
