1V+ 8 SCL
2D+ 7 SDA
3D± 6 ALERT/THERM2
4THERM 5 GND
Not to scale
3
TMP411
www.ti.com
SBOS383D –DECEMBER 2006–REVISED DECEMBER 2016
Product Folder Links: TMP411
Submit Documentation FeedbackCopyright © 2006–2016, Texas Instruments Incorporated

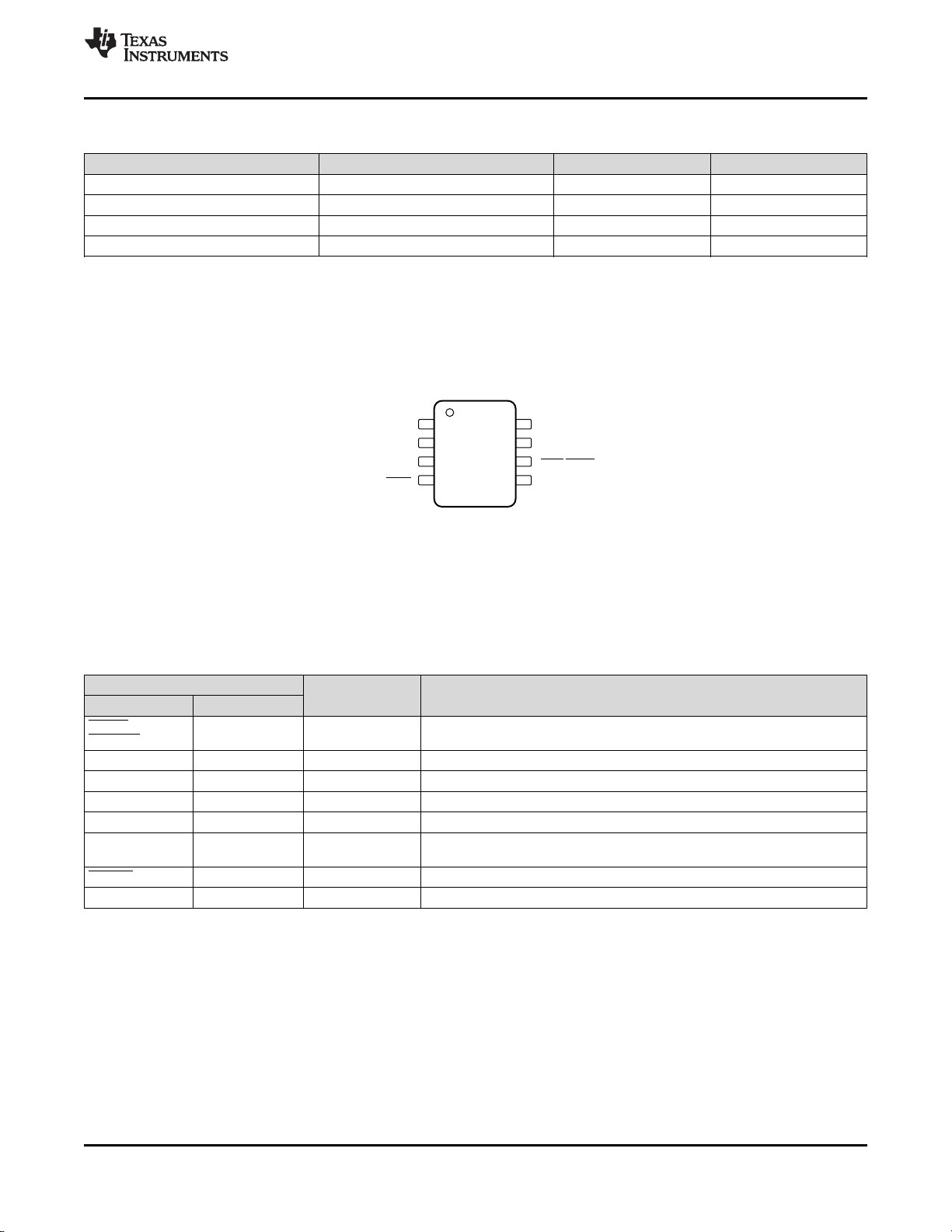

5 Device Comparison Table
PART NUMBER I
2
C BINARY ADDRESS I
2
C HEX ADDRESS OFFSET REGISTERS
TMP411A 100 1100b 4Ch No
TMP411B 100 1101b 4Dh No
TMP411C 100 1110b 4Eh No
TMP411E 100 1100b 4Ch Yes
6 Pin Configuration and Functions
DGK and D Packages
8-Pin VSSOP, SOIC
Top View
Pin Functions
PIN
I/O DESCRIPTION
NAME NO.
ALERT/
THERM2
6 Digital output
Alert (reconfigurable as second thermal flag), active low, open-drain; requires
pullup resistor to V+
D+ 2 Analog input Positive connection to remote temperature sensor
D– 3 Analog input Negative connection to remote temperature sensor
GND 5 Ground Ground
SCL 8 Digital input Serial clock line for SMBus, open-drain; requires pull-up resistor to V+
SDA 7
Bidrectional digital
input-output
Serial data line for SMBus, open-drain; requires pull-up resistor to V+
THERM 4 Digital output Thermal flag, active low, open-drain; requires pull-up resistor to V+
V+ 1 Power supply Positive supply (2.7 V to 5.5 V)
