USB Type-C
Connector
SSRX1P
SSRX1N
SSTX1P
SSTX1N
SSRX2N
SSRX2P
SSTX2N
SSTX2P
DMB
DPB
SBU1
CC2
SBU2
CC1
DPT
DMT
TPD4E05U06
TPD4E05U06
VBUS
VBUS
TPD1E01B04 (x4)
TPD1E01B04 (x4)
Copyright © 2016, Texas Instruments Incorporated
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPD1E01B04
SLVSDG3C –MARCH 2016–REVISED DECEMBER 2016
TPD1E01B04 1-Channel ESD Protection Diode for USB Type-C and Thunderbolt 3
1
1 Features
1
• IEC 61000-4-2 Level 4 ESD Protection
– ±15-kV Contact Discharge
– ±17-kV Air Gap Discharge
• IEC 61000-4-4 EFT Protection
– 80 A (5/50 ns)
• IEC 61000-4-5 Surge Protection
– 2.5 A (8/20 µs)
• IO Capacitance:
– 0.18 to 0.20 pF (Typical)
– 0.20 to 0.23 pF (Maximum)
• DC Breakdown Voltage: 6.4 V (Typical)
• Ultra Low Leakage Current: 10-nA (Maximum)
• Low ESD Clamping Voltage: 15 V at 16 A TLP
• Low Insertion Loss: 26.9 GHz (–3 dB Bandwidth,
DPL)
• Supports High Speed Interfaces up to 20 Gbps
• Industrial Temperature Range: –40°C to +125°C
• Industry Standard 0201 and 0402 footprints
2 Applications
• End Equipment
– Laptops and Desktops
– Mobile and Tablets
– Set-Top Boxes
– TV and Monitors
– USB Dongles
– Docking Stations
• Interfaces
– USB Type-C
– Thunderbolt 3
– USB 3.1 Gen 2
– HDMI 2.0/1.4
– USB 3.0
– DisplayPort 1.3
– PCI Express 3
3 Description
The TPD1E01B04 is a bidirectional TVS ESD
protection diode array for USB Type-C and
Thunderbolt 3 circuit protection. The TPD1E01B04 is
rated to dissipate ESD strikes at the maximum level
specified in the IEC 61000-4-2 international standard
(Level 4).
This device features a 0.18 to 0.20-pF (typical) IO
capacitance making it ideal for protecting high-speed
interfaces up to 20 Gbps such as USB 3.1 Gen2 and
Thunderbolt 3. The low dynamic resistance and low
clamping voltage ensure system level protection
against transient events.
The TPD1E01B04 is offered in the industry standard
0201 (DPL) package and 0402 (DPY) packages.
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
TPD1E01B04
X2SON (2) 0.60 mm x 0.30 mm
X1SON (2) 1.00 mm x 0.60 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.

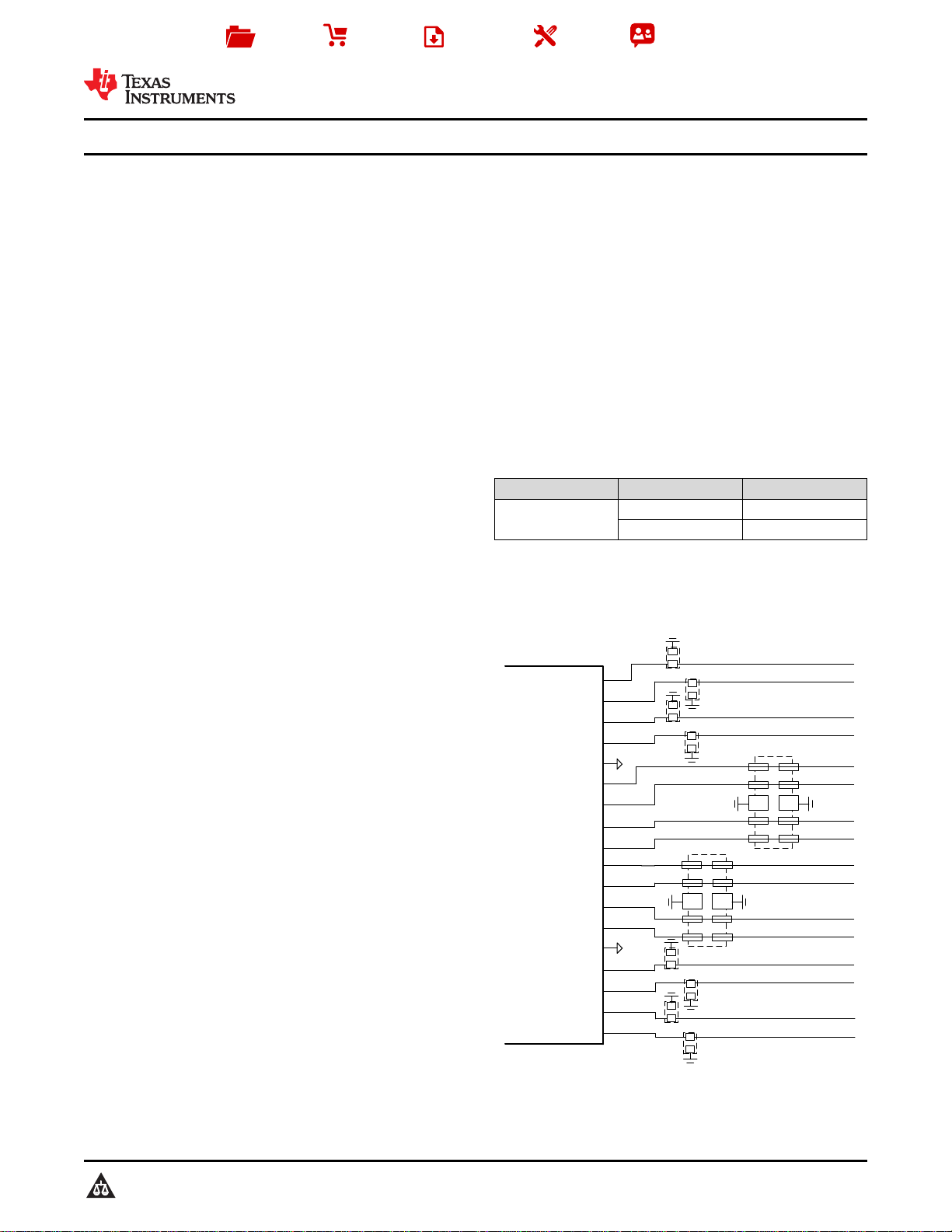

Typical Application
