www.ti.com
6 Kit Operation
6.1 TSC2005EVM-PDK Block Diagram
USB
J7
J11 J12
J21 J22
J1 J2
USB-MODEVM
TSC2005EVM
J13
J3
J23
TSC2005
X+
X-
Y+
Y-
AUX
VREF
SCLK
/CS
SDI
SDO
/PINTDAV
/RESET
EEPROM
SCL
SDA
TAS1020B
ControlInterface
(SPI,I2C)
6.2 Quick Start
Kit Operation
The following section provides information on using the TSC2005EVM-PDK, including setup, program
installation, and program usage.
A block diagram of the TSC2005EVM-PDK is shown in Figure 1 . The evaluation kit consists of two circuit
boards connected together. The motherboard is designated as the USB-MODEVM Interface board; the
daughtercard is the TSC2005EVM.

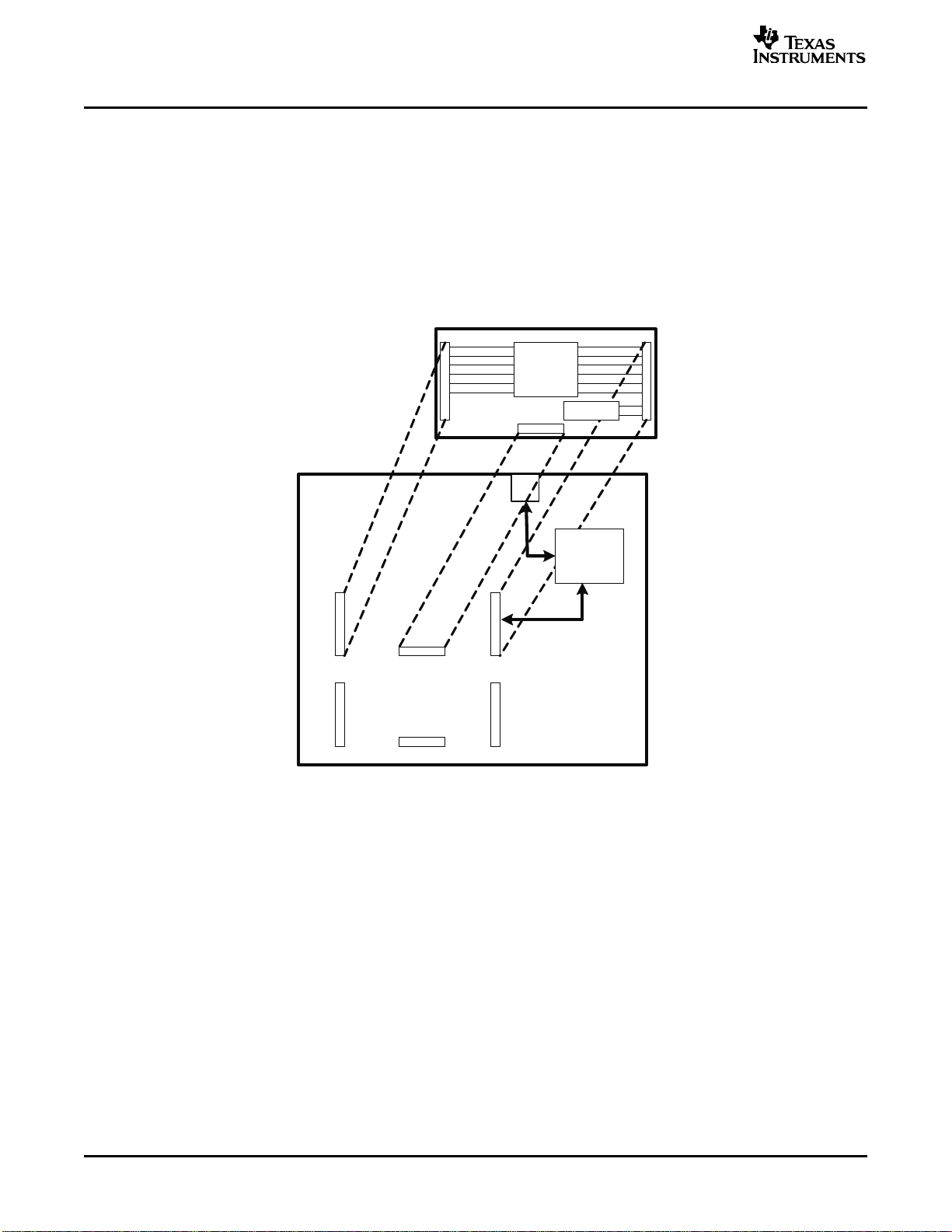

Figure 1. TSC2005EVM-PDK Block Diagram
The USB-MODEVM Interface board is intended to be used in USB mode, where control of the installed
EVM is accomplished using the onboard USB controller device. However, provision is made for driving all
the buses (I2C and/or SPI) externally. The source of these signals is controlled by SW2 on the
USB-MODEVM. For more details, see the USB-MODEVM Interface Board schematic in Section 7.2.
Ensure that the TSC2005EVM is installed on the USB-MODEVM Interface Board. The TSC2005EVM
should be installed in the topmost position, using J11, J12, and J13 on the USB-MODEVM, as shown in
Figure 1 .
Place the CD-ROM into your PC's CD-ROM drive. Locate the Setup program on the disk, and execute it.
The Setup program installs the TSC2005 evaluation software on your PC. Follow the instructions and
prompts given.
When the installation completes, click Finish on the TSC2005EVM installer window. You may be prompted
to restart your computer.
6 TSC2005EVM and TSC2005EVM-PDK SLAU191 – September 2006
Submit Documentation Feedback
