FEATURES
D Same Pinout as ADS7846
D 2.2V to 5.25V Operation
D 1.5V to 5.25V Digital I/O
D Internal 2.5V Reference
D Direct Battery Measurement (0V to 6V)
D On-Chip Temperature Measurement
D Touch-Pressure Measurement
D QSPI and SPI 3-Wire Interface
D Auto Power-Down
D Exceeds IEC 61000-4-2 ESD Requirements
− +15kV Contact Discharge
− No External Components Needed
D Available In TSSOP-16, QFN-16, and
VFBGA-48 Packages
APPLICATIONS
D Personal Digital Assistants
D Portable Instruments
D Point-of-Sale Terminals
D Pagers
D Touch Screen Monitors
D Cellular Phones
US Patent No. 6246394
DESCRIPTION
The TSC2046E is the next-generation version of the
ADS7846 4-wire touch screen controller, supporting a
low-voltage I/O interface from 1.5V to 5.25V. The
TSC2046E is 100% pin-compatible with the existing
ADS7846, and drops into the same socket. This design
allows for an easy upgrade of current applications to the
new version. The TSC2046E also has an on-chip 2.5V
reference that can be used for the auxiliary input, battery
monitor, and temperature measurement modes. The
reference can also be powered down when not used to
conserve power. The internal reference operates down to
a supply voltage of 2.7V, while monitoring the battery
voltage from 0V to 6V.
The low-power consumption of < 0.75mW typ at 2.7V
(reference off), high-speed (up to 125kHz sample rate),
and on-chip drivers make the TSC2046E an ideal choice
for battery-operated systems such as personal digital
assistants (PDAs) with resistive touch screens, pagers,
cellular phones, and other portable equipment. The
TSC2046E is available in TSSOP-16, QFN-16, and
VFBGA-48 packages and is specified over the –40°C to
+85°C temperature range.

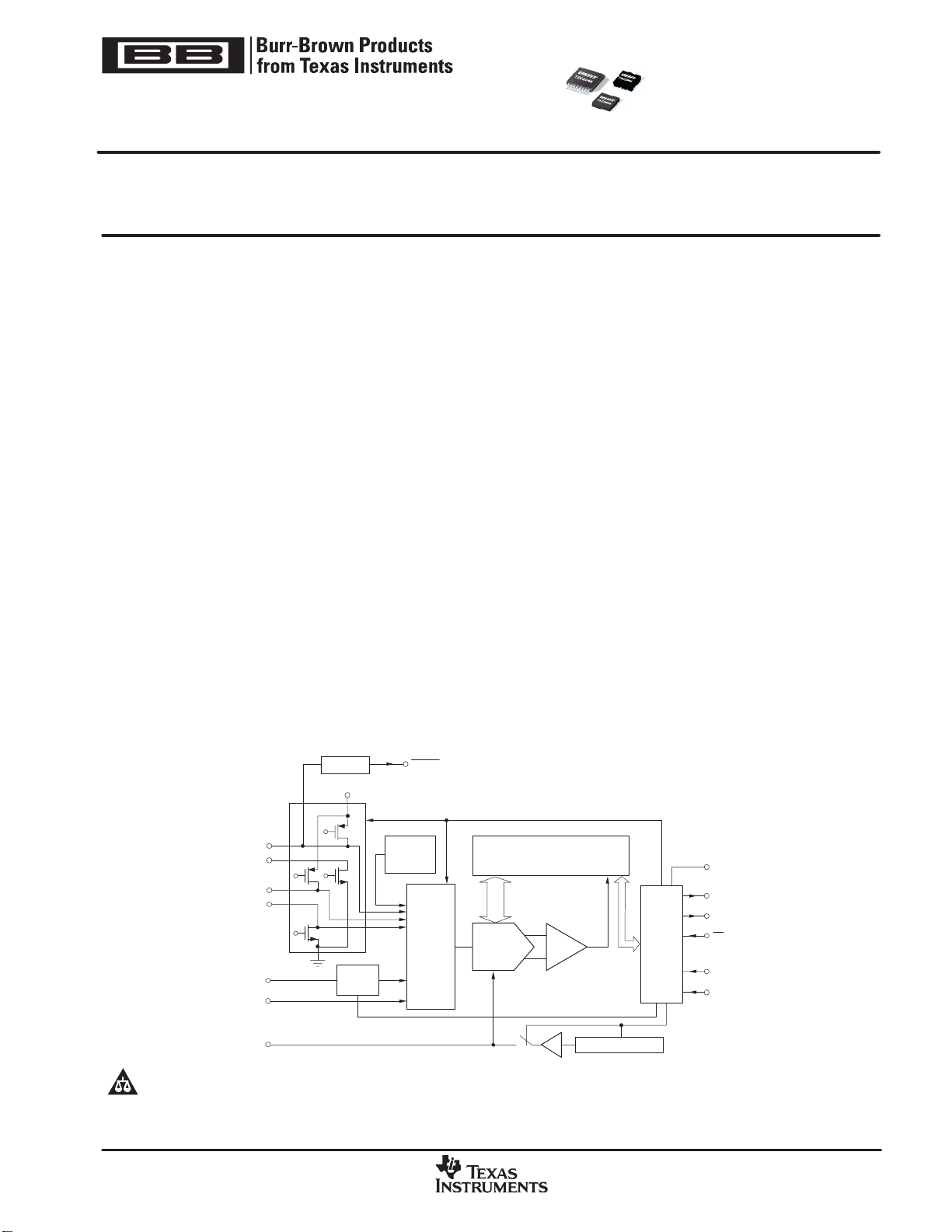

CDAC
Internal2.5V Reference
SAR
TSC2046E
Comparator
6−Channel
MUX
Serial
Data
In/Out
Temperature
Sensor
Pen Detect
Battery
Monitor
DOUT
BUSY
CS
DCLK
DIN
V
BAT
AUX
V
REF
+V
CC
IOVDD
X+
X
−
Y+
Y−
PENIRQ
! !
www.ti.com
Copyright 2007−2008, Texas Instruments Incorporated
SPI and QSPI are trademarks of Motorola Inc.
Microwire is a trademark of National Semiconductor Corporation.
All other trademarks are the property of their respective owners.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments
semiconductor products and disclaimers thereto appears at the end of this data sheet.
TSC2046E
SBAS417B − JUNE 2007 − REVISED JANUARY 2008
Low Voltage I/O
TOUCH SCREEN CONTROLLER
