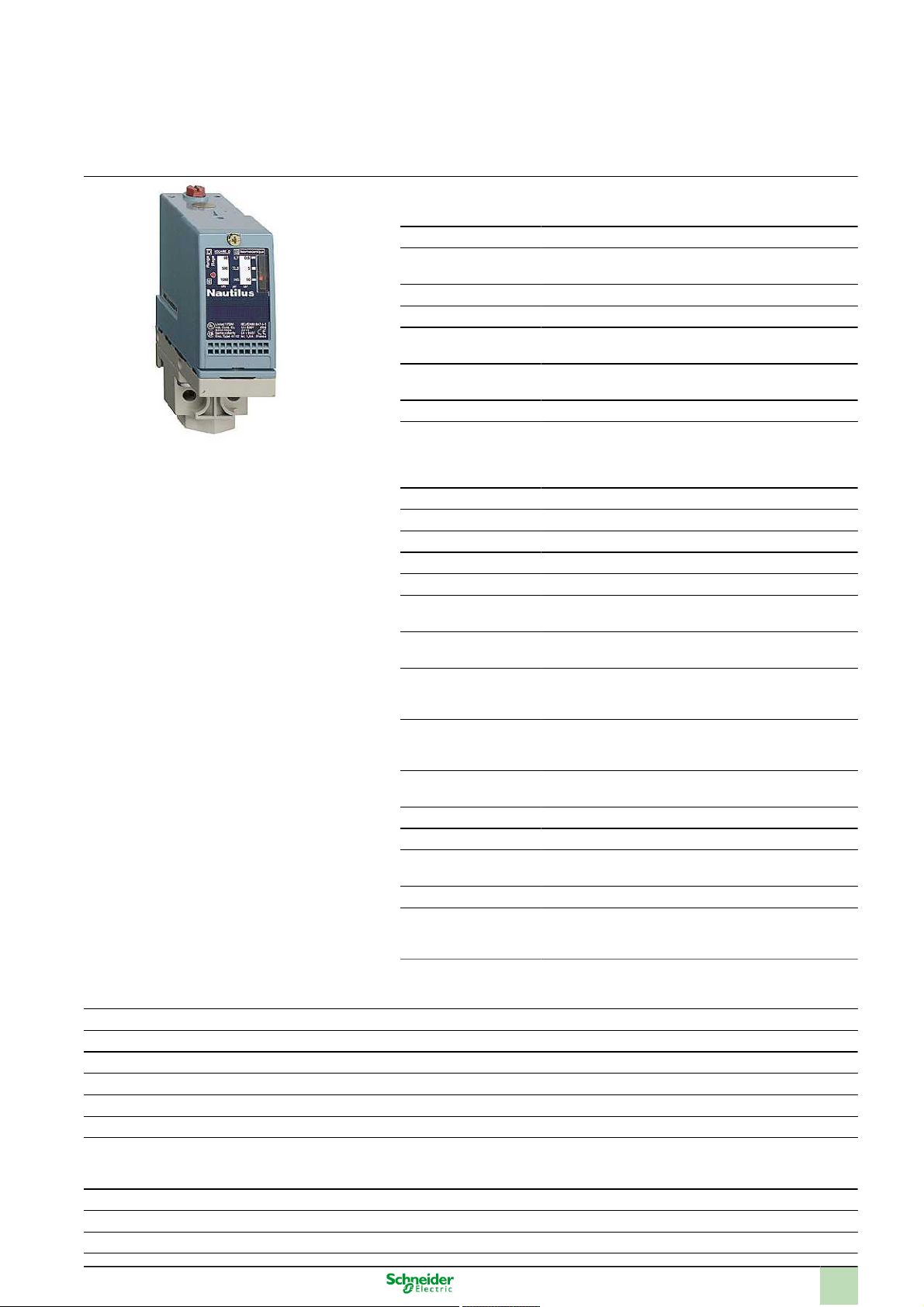

Product data sheet
Characteristics
XMLA020A2S11
pressure switch XMLA 20 bar - fixed scale 1
threshold - 1 C/O
Main
Range of product OsiSense XM
Product or component
type
Electromechanical pressure sensor
Pressure sensor type Electromechanical pressure sensor
Pressure sensor name XMLA
Cable entry 1 entry tapped for Pg 13.5 cable gland, cable outer
diameter: 9...13 mm
Contacts type and com-
position
1 C/O
Electrical circuit type Control circuit
Controlled fluid Air (0...70 °C)
Fresh water (0...70 °C)
Hydraulic oil (0...70 °C)
Sea water (0...70 °C)
Electrical connection Screw-clamps terminals 1 x 0.2...2 x 2.5 mm²
Fluid connection type G 1/4 (female) conforming to ISO 228
Pressure sensor size 20 bar
Scale type Fixed differential
Local display With
Pressure switch type of
operation
Detection of 1 single threshold
Product specific appli-
cation
-
Adjustable range of
switching point on rising
pressure
1...20 bar
Adjustable range of
switching point on falling
pressure
0.6...19 bar
Maximum permissible
accidental pressure
45 bar
Destruction pressure 90 bar
Pressure actuator Diaphragm
Materials in contact
with fluid
Nitrile
Zinc alloy
Enclosure material Zinc alloy
[In] rated current B300, AC-15 (Ue = 120 V
B300, AC-15 (Ue = 240 V
R300, DC-13 (Ue = 250 V
Complementary
Natural differential at low setting 0.4 bar (+/- 0.2 bar)
Natural differential at high setting 1 bar (+/- 0.1 bar)
Maximum permissible pressure - per cycle 25 bar
Terminal block type 4 terminals
Operating rate < 120 cyc/mn at > 0 °C
Repeat accuracy < 2 %
[Ui] rated insulation voltage 300 V conforming to CSA C22-2 No 14
300 V conforming to UL 508
500 V conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1
Auxiliary contacts operation Snap action
Contacts material Silver contacts
