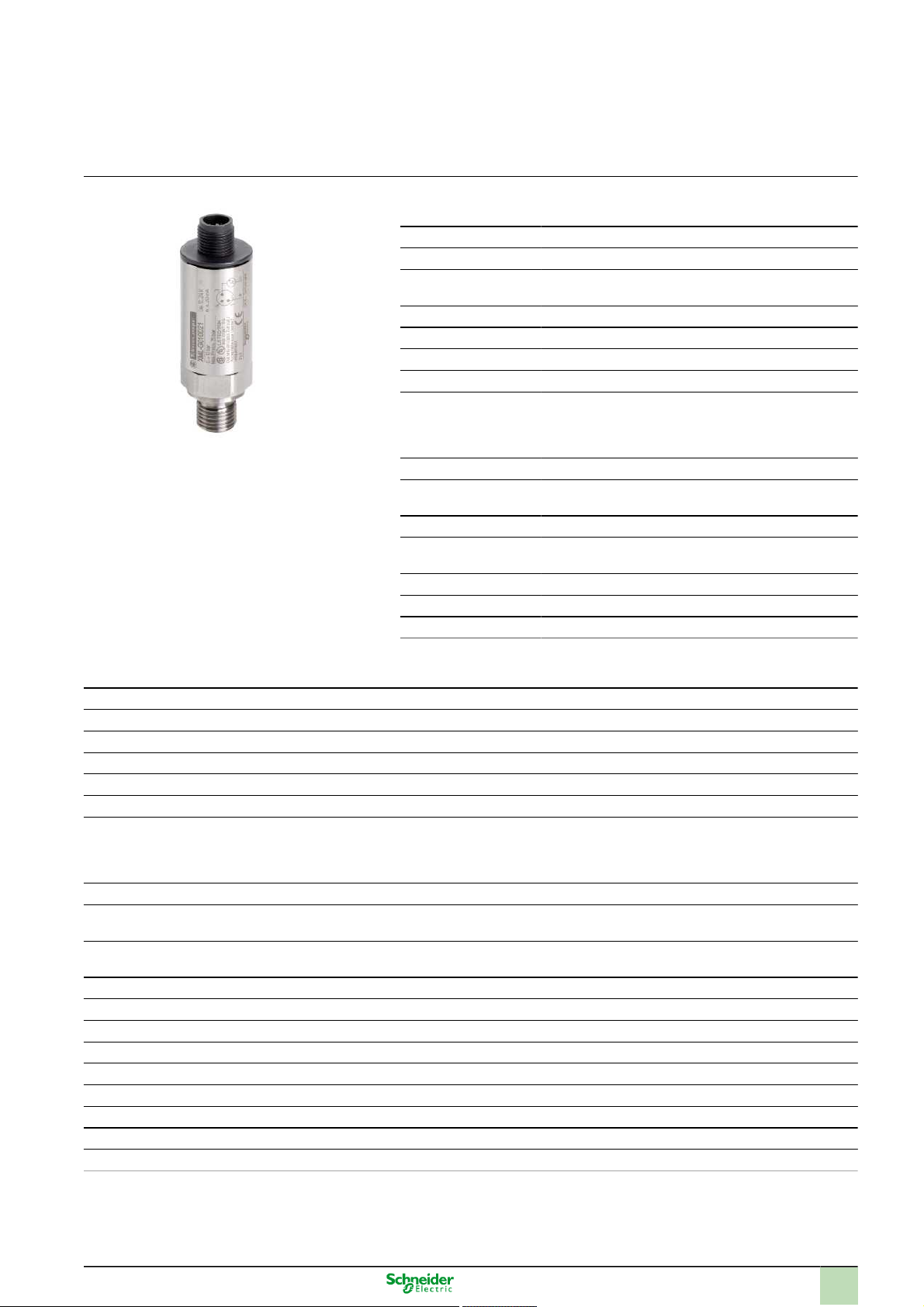

Product data sheet
Characteristics
XMLG001D21
pressure sensor XMLG - 0..1 bar - G 1/4A
(male) - 24 V - 4..20 mA - set of 1
Main
Commercial Status Commercialised
Range of product OsiSense XM
Product or component
type
Electronic pressure sensors
Pressure sensor type Pressure transmitter
Pressure sensor name XMLG
Pressure sensor size 1 bar
Fluid connection type G 1/4A (male) conforming to ISO 228
Controlled fluid Fresh water (0...125 °C)
Hydraulic oil (-15...125 °C)
Corrosive fluid (-15...125 °C)
Air (-15...125 °C)
Type of output signal Analogue
Analogue output func-
tion
4...20 mA, 2 wires
Electrical connection 3 pins 1 male connector M12
[Us] rated supply volt-
age
12/24 V DC, voltage limits: 8...33 V
Quantity per set Set of 1
Type of packing Individual
Diameter 22.8 mm
Complementary
Pressure setting range 0...1 bar
Maximum permissible accidental pressure 2.7 bar
Destruction pressure 3 bar
Local display Without
Electrical circuit type Control circuit
Current consumption < 20 mA
Materials in contact with fluid Ceramic
FPM
PPS
Stainless steel type AISI 303
Operating position Any position
Protection type Load short-circuit
Reverse polarity
Surge withstand 500 kV (12 Ohm) conforming to EN/IEC 61000-4-5
1 kV (42 Ohm) conforming to EN/IEC 61000-4-5
[Uimp] rated impulse withstand voltage 0.5 kV
Response time on output < 2 ms
Drift of the sensitivity +/- 0.015 % of measuring range/°C
Drift of the zero point +/- 0.015 % of measuring range/°C
Measurement accuracy +/- 0.3 % of the measuring range
Repeat accuracy +/- 0.1 % of the measuring range
Mechanical durability >= 10000000 cycles
Product weight 0.095 kg
Height 72 mm
