4 www.honeywell.com/sensing

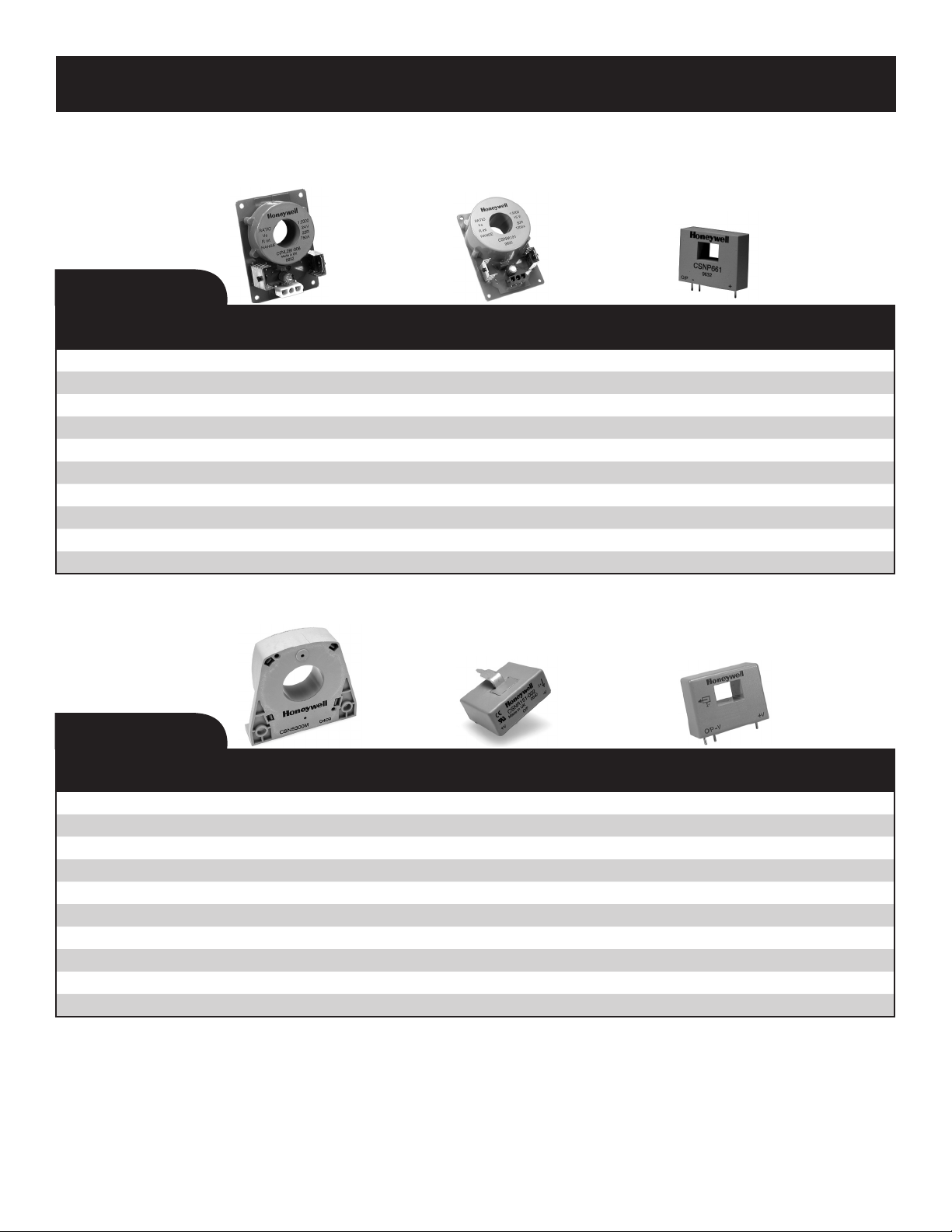

Current Sensors Line Guide
CSNL Series CSNM Series CSNP Series
Sensed current range ±600 A ±1000 A ±90 A
Sensed current type ac, dc ac, dc ac, dc
Output current current current
Coil turns 2000 3000 1000
Response time < 0.5 µs < 1 µs < 0.5 µs
Accuracy ±0.5 % ±0.5 % ±0.5 %
Mounting panel panel PCB on 3 pins
Pinout style Molex (3-way) Molex (3-way) offset
Operating temperature -40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F]
Supply voltage ±12.0 Vdc to ±18.0 Vdc ±12.0 Vdc to ±18.0 Vdc ±12.0 Vdc to ±15.0 Vdc
Closed Loop
Current Sensors
CSNS Series CSNR Series CSNT Series
Sensed current range ±320 A, ±600 A ±200 A ±150 A
Sensed current type ac, dc, impulse ac, dc ac, dc
Output current current current
Coil turns 2000 1000, 2000 2000
Response time < 0.5 µs < 0.5 µs < 0.5 µs
Accuracy ±0.5 % ±0.5 % ±0.5 %
Mounting panel PCB on 3 pins PCB on 3 pins
Pinout style Molex (3-way) center, offset offset
Operating temperature -40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F]
Supply voltage ±12 Vdc to ±18 Vdc ±12.0 Vdc to ±15.0 Vdc ±12.0 Vdc to ±15.0 Vdc
Closed Loop
Current Sensors
