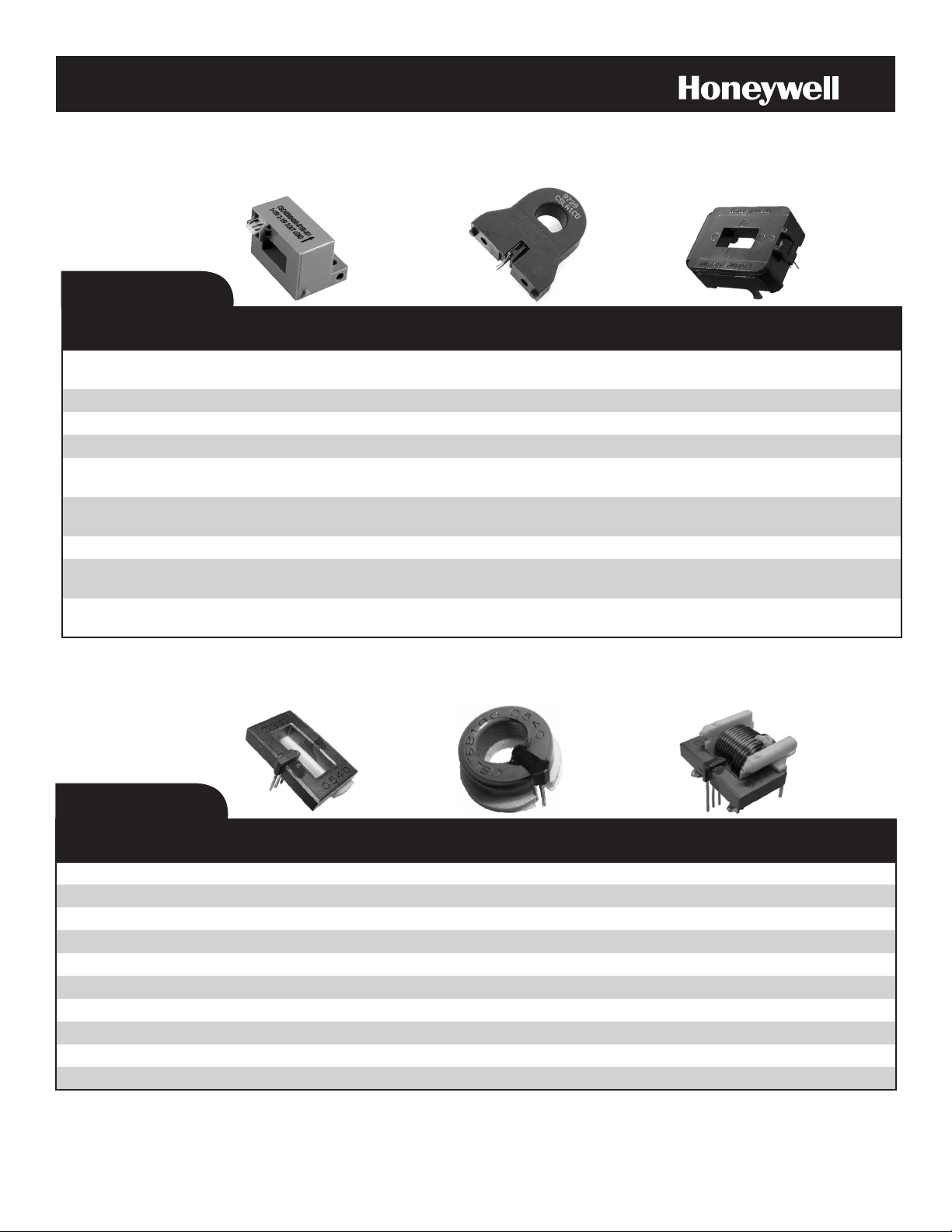

CSLS Series CSLT Series CSLW Series
Sensed current range ±60 A ±100 A ±1 A, ±5 A, ±40 mA, ±200 mA
Sensed current type ac, dc ac, dc ac, dc
Output sink/source sink/source sink/source
Coil turns – – 12, 60, 300, 1500
Response time 3 µs 3 µs 3 µs
Sensitivity 15 mV/AT ±2 mV/AT @ 5 Vdc 15 mV/AT ±2 mV/AT @ 5 Vdc various
Mounting PCB PCB PCB
Pinout style 3-pin 3-pin 5-pin
Operating temperature -25 °C to 100 °C [-13 °F to 212 °F] -25 °C to 100 °C [-13 °F to 212 °F] -25 °C to 100 °C [-13 °F to 212 °F]
Supply voltage 4.5 Vdc to 10.5 Vdc 4.5 Vdc to 10.5 Vdc 4.5 Vdc to 10.5 Vdc
Open Loop
Current Sensors
CSCA-A Series CSLA Series CSLH Series
Sensed current range
±150 A, ±300 A
±600 A, ±900 A
±57 A to ±950 A ±9 A, ±45 A
Sensed current type ac, dc, impulse ac, dc ac, dc
Output voltage voltage sink/source
Response time 3 µs to 7 µs 3 µs, 8 µs 3 µs
Sensitivity – various
18.5 mV N* ±3.5 mV N* @ 5 Vdc or
282 mV N* -42, +82 mV N* @ 10 Vdc
Mounting
Molex connector
Gallant connector
PCB on 3-pins PCB on 3-pins
Pinout style – 3-pin 3-pin
Operating temperature
-10 °C to 80 °C
[14 °F to 176 °F]
-25 °C to 85 °C
[-13 °F to 185 °F]
-25 °C to 85 °C
[-13 °F to 185 °F]
Supply voltage ±15 Vdc ±5 %
8 Vdc to 16 Vdc
6 Vdc to 12 Vdc
4.5 Vdc to 10.5 Vdc
N = Number of turns
Open Loop
Current Sensors
