5

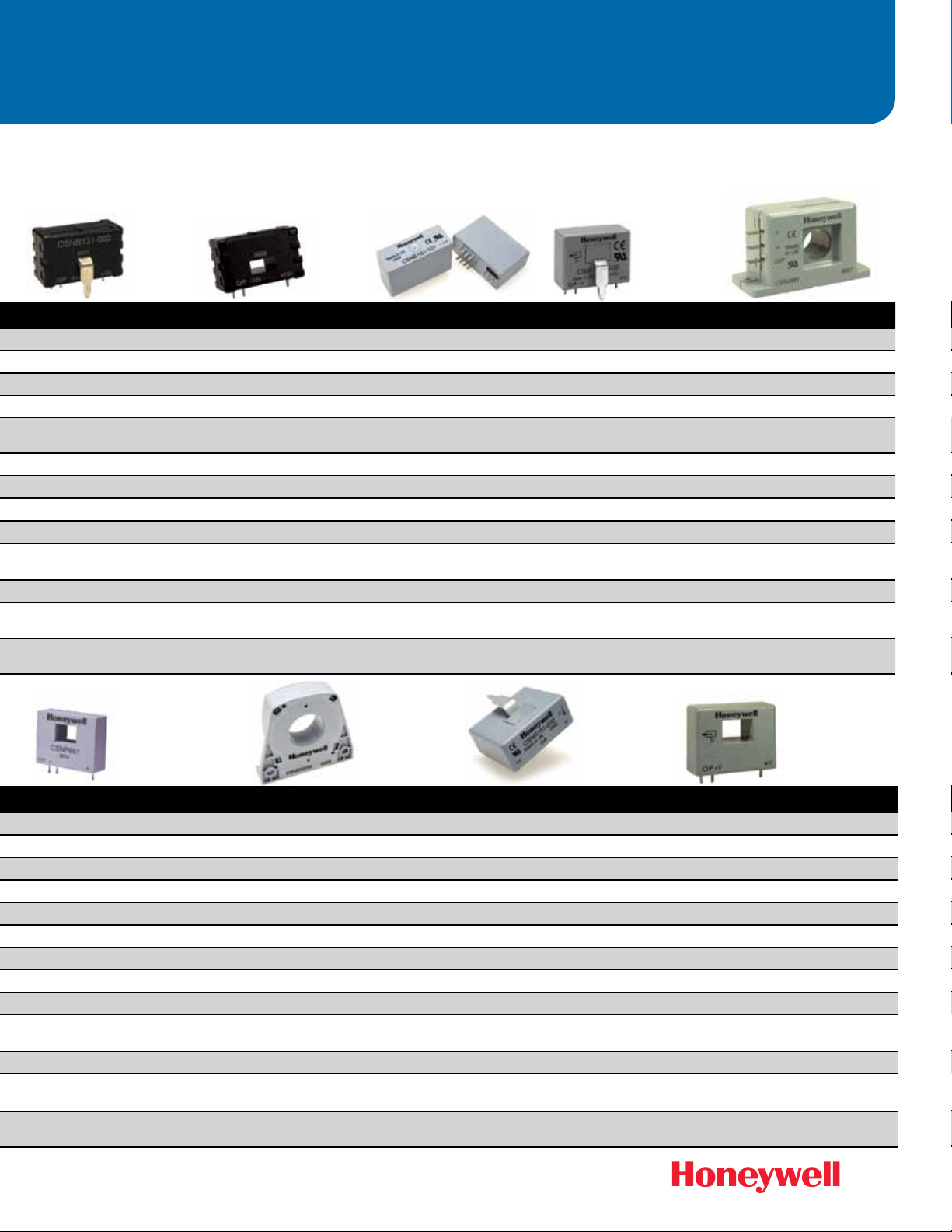

Series CSNK CSNL CSNM CSNP CSNS CSNR CSNT
Rated current
500 A 300 A 500 A 50 A 100 A, 200 A, 300 A 125 A 50 A
Sensing current range
±1200 A ±600 A ±1000 A ±90 A ±320 A, ±600 A ±200 A ±150 A
Sensed current type
ac, dc, impulse ac, dc ac, dc ac, dc ac, dc, impulse ac, dc ac, dc
Output
current current current current current current current
Coil turns
5000 (50 Ohm coil) 2000 3000 1000 2000 1000, 2000 2000
Response time
< 1 µs < 0.5 µs < 1 µs < 0.5 µs < 0.5 µs < 0.5 µs < 0.5 µs
Accuracy
±0.5 % ±0.5 % ±0.5 % ±0.5 % ±0.5 % ±0.5 % ±0.5 %
Mounting
panel panel panel pcb on 3 pins panel pcb on 3 pins pcb on 3 pins
Pinout style
Molex (3-way) Molex (3-way) Molex (3-way) offset Molex (3-way) center, offset offset
Operating
temperature range
-40 °C to 85 °C
[-40 °F to 185 °F]
-40 °C to 85 °C
[-40 °F to 185 °F]
-40 °C to 85 °C
[-40 °F to 185 °F]
-40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F]
Supply voltage
±15 Vdc to ±18 Vdc ±12.0 Vdc to ±18.0 Vdc ±12.0 Vdc to ±18.0 Vdc ±12.0 Vdc to ±15.0 Vdc ±12 Vdc to ±18 Vdc ±12.0 Vdc to ±15.0 Vdc ±12.0 Vdc to ±15.0 Vdc
Measurements
(H x W x D)
58,0 mm x 93,0 mm x 112,0 mm
[2.28 in x 3.66 in x 4.41 in]
95,0 mm x 45,0 mm x 21,5 mm
[3.75 in x 1.81 in x 0.85 in]
110,0 mm x 64,0 mm x 31,0 mm
[4.33 in x 2.52 in x 1.22 in]
29,6 mm x 27,94 mm x 14,45 mm
[1.165 in x 1.10 in x 0.569 in]
67,5 mm x 60,7 mm x 19,0 mm
[2.66 in x 2.39 in x 0.75 in]
29,6 mm x 25,4 mm x 14,45 mm
[1.165 in x 1.0 in x 0.569 in]
29,6 mm x 27,94 mm x 14,45 mm
[1.165 in x 1.10 in x 0.569 in]
Features
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
Series CSNX CSNA CSNF CSNB CSNC CSNE CSNG CSNJ
Rated current
25 A 50 A 100 A 50 A 50 A 25 A, 50 A 100 A 300 A
Sensing current range
±56 A ±70 A, ±90 A, ±100 A ±150 A, ±180 A, ±200 A ±100 A ±90 A ±36 A, ±90 A ±180 A, ±200 A ±600 A
Sensed current type
ac, dc, impulse ac, dc, impulse ac, dc, impulse ac, dc ac, dc ac, dc, impulse ac, dc ac, dc, impulse
Output
current current current current current current current current
Coil turns
2000 (50 Ohm coil)
1000 (90 or 50 Ohm coil)
2000 (160 or 130 Ohm coil)
1000 (30 Ohm coil)
2000 (100 Ohm coil)
2000 1000 (50 Ohm coil) 1000 (110 Ohm or 66 Ohm coil) 2000 2000
Response time
< 0.2 µs < 1 µs < 0.5 µs < 1 µs < 1 µs < 1 µs < 0.5 µs < 0.5 µs
Accuracy
±0.24 % ±0.5 % ±0.5 % ±0.5 % ±0.5 % ±0.5 % ±0.5 % ±0.5 %
Mounting
pcb on 11-pins pcb on 3-pins pcb on 3-pins pcb on 3 pins pcb on 3 pins pcb on 13 pins pcb on 3 pins panel
Pinout style
unipolar offset center offset offset 5-pin offset spade terminals (x 3)
Operating
temperature range
-40 °C to 85 °C
[-40 °F to 185 °F]
0 °C to 70 °C
[32 °F to 158 °F]
-40 °C to 85 °C
[-40 °F to 185 °F]
0 °C to 70 °C [32 °F to 158 °F] -25 °C to 85 °C [-13 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F] -40 °C to 85 °C [-40 °F to 185 °F]
Supply voltage
4.75 Vdc to 5.25 Vdc ±13 Vdc, ±15 Vdc ±12 Vdc to ±15 Vdc ±15.0 Vdc ±13.0 Vdc ±12 Vdc to ±15 Vdc ±15.0 Vdc ±12.0 Vdc to ±18.0 Vdc
Measurements
(H x W x D)
25,45 mm x 34,0 mm x 12,55 mm
[1.002 in x 1.34 in x 0.494 in]
25,70 mm x 40,5 mm x 18,0 mm
[1.012 in x 1.595 in x 0.709 in]
29,6 mm x 25,4 mm x 14,45 mm
[1.165 in x 1.0 in x 0.569 in]
25,70 mm x 40,5 mm x 18,0 mm
[1.012 in x 1.595 in x 0.709 in]
25,70 mm x 40,5 mm x 18,0 mm
[1.012 in x 1.595 in x 0.709 in]
20,3 mm x 31,8 mm x 12,7 mm
[0.80 in x 1.25 in x 0.5 in]
29,6 mm x 27,94 mm x 14,45 mm
[1.165 in x 1.10 in x 0.569 in]
58,0 mm x 93,0 mm x 112,0 mm
[2.28 in x 3.66 in x 4.41 in]
Features
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
rapid response; reduced overshoot;
high overload capability
Current Sensors
Closed Loop
