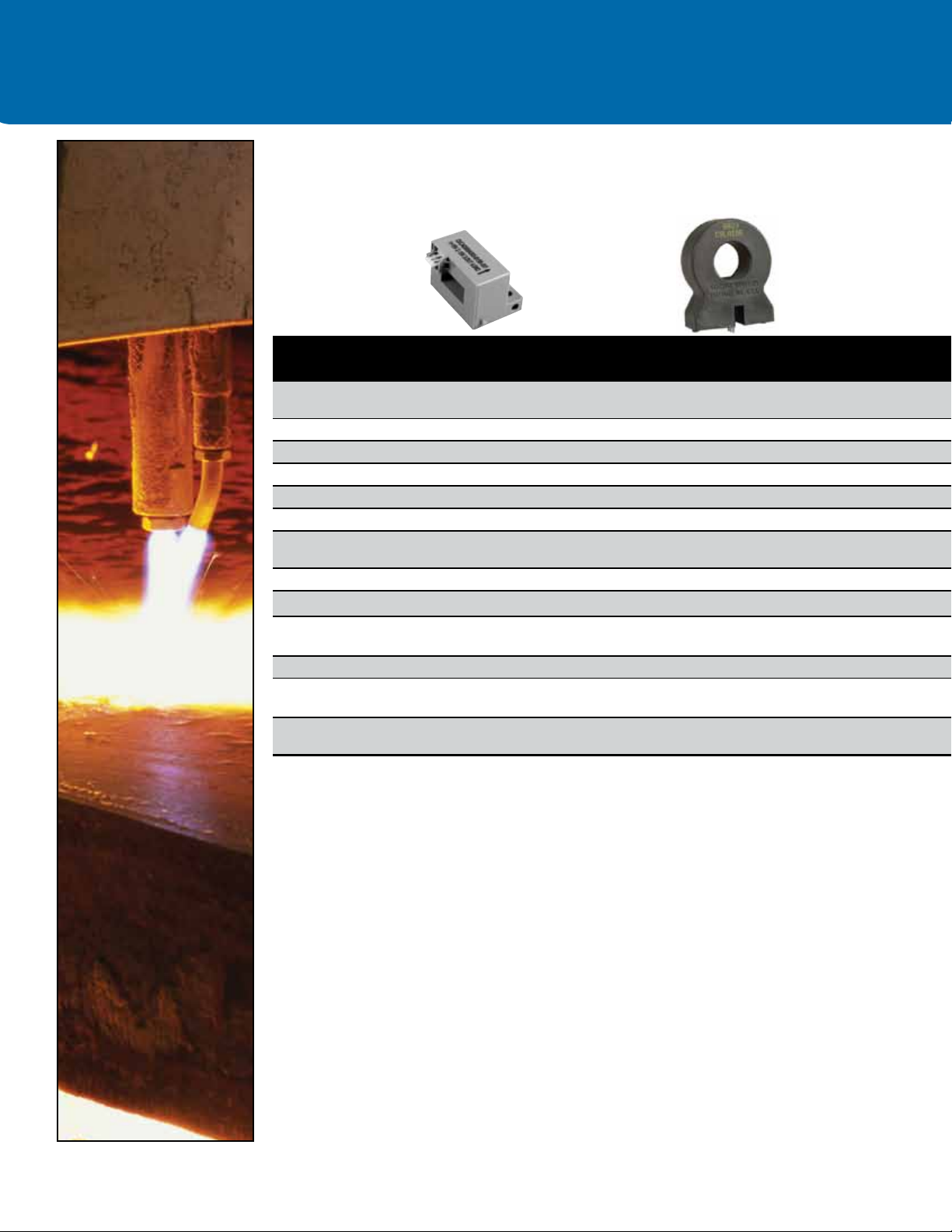

6 www.honeywell.com/sensing
Open-Loop
Series
CSCA-A CSLA CSLH CSLS CSLT CSLW
Rated current
50 A, 75 A, 100 A, 200 A, 300 A, 400 A, 500 A,
600 A
–
– – – –
Sensing current range
±150 A, ±300 A, ±600 A, ±900 A ±57 A to ±950 A ±9 A, ±45 A ±60 A ±100 A ±1 A, ±5 A, ±40 mA, ±200 mA
Sensed current type
ac, dc, impulse ac, dc ac, dc ac, dc ac, dc ac, dc
Output
voltage voltage sink/source sink/source sink/source sink/source
Coil turns
– – – – – 12, 60, 300, 1500
Response time
3 µs to 7 µs 3 µs, 8 µs 3 µs 3 µs 3 µs 3 µs
Accuracy
– various
18.5 mV N* ±3.5 mV N* @ 5 Vdc;
282 mV N* -42, +82 mV N* @ 10 Vdc
15 mV/AT ±2 mV/AT @ 5 Vdc 15 mV/AT ±2 mV/AT @ 5 Vdc various
Mounting
Molex connector; Gallant connector pcb on 3-pins pcb on 3-pins pcb pcb pcb
Pinout style
Molex/Gallant 3-pin 3-pin 3-pin 3-pin 5-pin
Operating
temperature range
-10 °C to 80 °C [14 °F to 176 °F] -25 °C to 85 °C [-13 °F to 185 °F] -25 °C to 85 °C [-13 °F to 185 °F] -25 °C to 100 °C [-13 °F to 212 °F] -25 °C to 100 °C [-13 °F to 212 °F] -25 °C to 100 °C [-13 °F to 212 °F]
Supply voltage
±15 Vdc ±5 % 8 Vdc to 16 Vdc; 6 Vdc to 12 Vdc 4.5 Vdc to 10.5 Vdc 4.5 Vdc to 10.5 Vdc 4.5 Vdc to 10.5 Vdc 4.5 Vdc to 10.5 Vdc
Measurements
(H x W x D)
29,0 mm x 40 mm x 20,4 mm
[1.14 in x 1.57 in x 0.80 in]
44,4 mm x 30,5 mm x 14,2 mm
[1.75 in x 1.40 in x 0.56 in]
19,8 mm x 24,6 mm x 8,9 mm
[0.78 in x 0.97 in x 0.35 in]
10,0 mm x 16,4 mm x 4,6 mm
[0.4 in x 0.65 in x 0.18 in]
Ø 10,6 mm x 9 mm
[Ø 0.42 in x 0.35 in]
14,0 mm x 16,2 mm x 11,4 mm
[0.55 in x 0.64 in x 0.45 in]
Features
competitive cost/performance ratio; low power
consumption; large primary aperture
enhanced response time; output voltage isolated
from input; minimum energy dissipation
linear ratiometric output; sinking or sourc-
ing output; no insertion loss
linear ratiometric output; sinking or sourc-
ing output; no insertion loss
linear ratiometric output; sinking or sourc-
ing output; no insertion loss
linear ratiometric output; sinking or sourcing
output; no insertion loss
*number of turns
Open loop current sensors provide output voltage proportional to measured current
without using feedback control. They are often preferred in battery powered circuits
due to their compact size and lower power consumption. Potential applications include
welding machines, variable speed drives, UPS and overcurrent protection.
Current Sensors
Open Loop
