Te
1

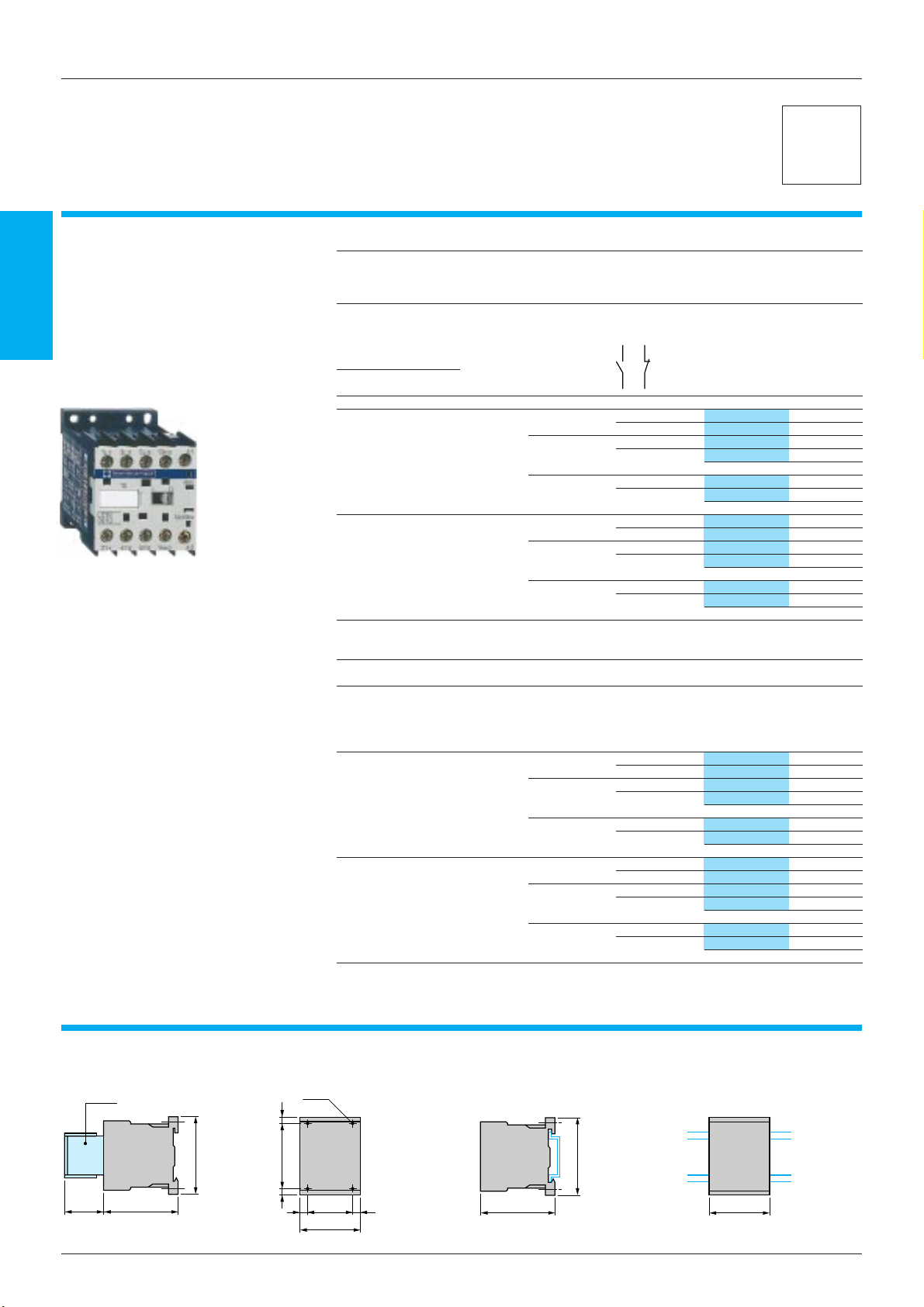

Mini contactors
K 3-pole contactors for motor control, 6 and 9 A
Utilisation category AC-3
Control circuit : a.c.
References
a.c. control contactors
(1)
- Mounting on 35 mm " rail or Ø 4 mm screw fixing.
- Screws in open “ready-to-tighten” position.
Standard power ratings Rated Type of
Instantaneous
Basic reference. Weight
of 3-phase motors operational connection auxiliary Complete with code
50/60 Hz in category voltage contacts indicating control
AC-3 in AC-3 circuit voltage (2)
up to
220 V 380 V 440/500 V 400 V
230 V 415 V 660/690 V
kW kW kW A N/O N/C kg
1.5 2.2 3 6 Screw clamp 1 – LC1-K0610ii 0.180
–1 LC1-K0601ii 0.180
Faston 1 – LC1-K06107ii 0.180
1 x 6.35 – 1 LC1-K06017ii 0.180
or 2 x 2.8
Solder pins 1 – LC1-K06105ii 0.210
for printed – 1 LC1-K06015ii 0.210
circuit board
2.2 4 4 9 Screw clamp 1 – LC1-K0910ii 0.180
–1 LC1-K0901ii 0.180
Faston 1 – LC1-K09107ii 0.180
1 x 6.35 – 1 LC1-K09017ii 0.180
or 2 x 2.8
Solder pins 1 – LC1-K09105ii 0.210
for printed – 1 LC1-K09015ii 0.210
circuit board
a.c. control contactors for use in sensitive environments
(1)
Recommended for use in areas sensitive to noise, high interference mains supplies, etc.
- Coil with rectifier incorporated, suppressor fitted as standard.
- Mounting on 35 mm " rail or Ø 4 mm screw fixing.
- Screws in the open “ready-to-tighten” position.
1.5 2.2 3 6 Screw clamp 1 – LC7-K0610ii 0.225
–1 LC7-K0601ii 0.225
Faston 1 – LC7-K06107ii 0.225
1 x 6.35 – 1 LC7-K06017ii 0.225
or 2 x 2.8
Solder pins 1 – LC7-K06105
ii
ii
ii 0.255
for printed – 1 LC7-K06015ii 0.255
circuit board
2.2 4 4 9 Screw clamp 1 – LC7-K0910ii 0.225
–1 LC7-K0901ii 0.225
Faston 1 – LC7-K09107ii 0.225
1 x 6.35 – 1 LC7-K09017ii 0.225
or 2 x 2.8
Solder pins 1 – LC7-K09105ii 0.255
for printed – 1 LC7-K09015ii 0.255
circuit board
(1) Add-on auxiliary contact blocks and accessories, see pages 1/8 to 1/11.
(2) Standard control circuit voltages, see page opposite.
Contactors
LC1-K, LC7-K, LP1-K
On panel On mounting rail AM1-DP200 or AM1-DE200 (" 35 mm)
57
58
45
5731
LA1-K
58
50==
35
45
=
=
4xØ4
cc
cc
c
LC1-K0610ii
