Module Description
www.ti.com
6
SWRU493A–November 2016–Revised November 2016
Submit Documentation Feedback
Copyright © 2016, Texas Instruments Incorporated
CC256xCQFN-EM
2 Module Description
The CC256xC QFN EM board is the development environment for the CC256x family and plugs into TI's
MSP432™ LaunchPad™ through the BOOST-CCEMADAPTER board.
This family is based on TI's CC256xC integrated circuit and uses a host controller interface (HCI), a cost-
effective and flexible means for implementing a Bluetooth network. The HCI reduces BOM cost by
eliminating redundant processing capacity and gives designers the flexibility to work with a controller of
their choice, because the Bluetooth stack resides and executes on the host processor of the application.

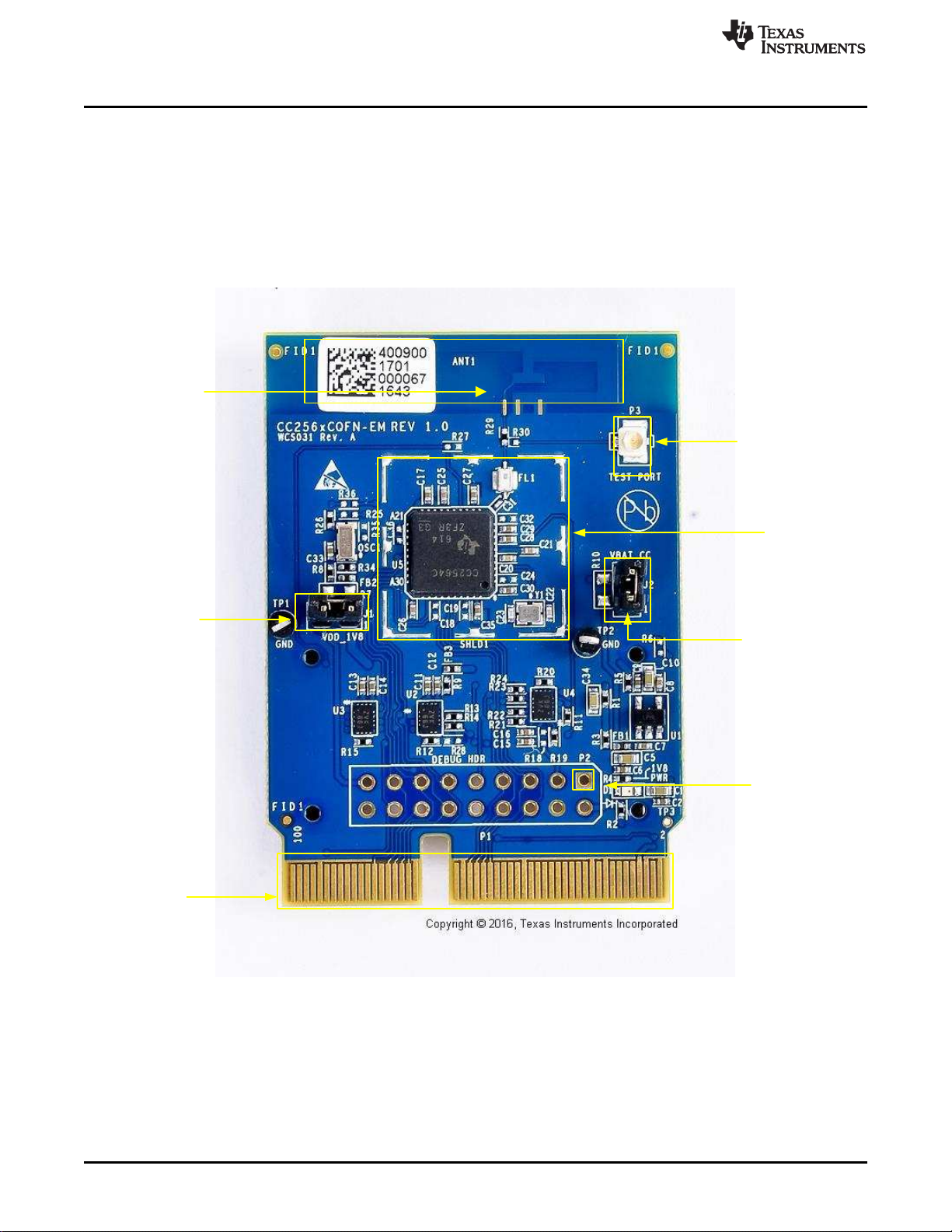

Figure 2 highlights various aspects of the CC256xCQFN-EM board.
Figure 2. CC2564xCQFN-EM Highlights
The CC256xCQFN-EM board is intended for evaluation purposes and works with TI's Hardware
Development Kit. See Section 6 for more information.
To help implement this reference design, schematics and layout files are available on the CC256x Main
Wiki page.
