SWRA124 Page 4 of 15
2.1 Debug Interface AC Characteristics
T
A
= -40°C to 85°C, VDD=3.0V if nothing else stated.
Parameter Min Typ Max Unit Condition/Note
CC2430,
CC2431
31.25
CC1110,
CC2510
38.46
Debug
clock
period:
CC2511 41.67
ns See item 1 Figure 2
Debug data setup 5 ns See item 2 Figure 2
Debug data hold 5 ns See item 3 Figure 2
Clock to data delay 10 ns See item 4 Figure 2, load = 10 pF
RESET_N inactive
after P2_2 rising
10 ns See item 5 Figure 2
Table 1: Debug Interface AC Characteristics
1
3
2
DEBUG CLK
P2_2
DEBUG DATA
P2_1
DEBUG DATA
P2_1
4
5
RESET_N

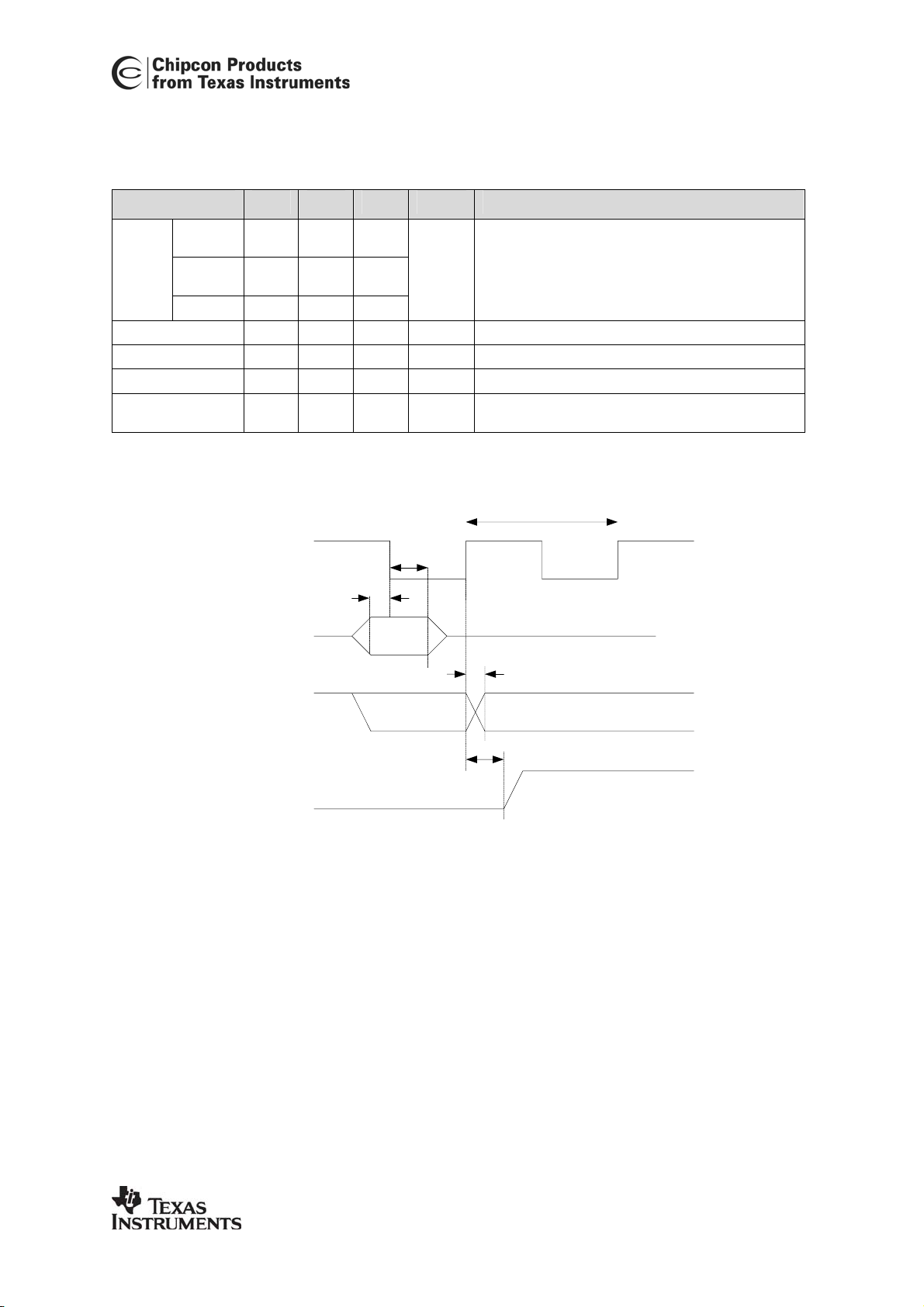

Figure 2: Debug Interface AC Characteristics
2.2 Debug Lock Bit
For software code security the Debug Interface may be locked. When the Debug Lock bit,
DBGLOCK
, is
set all debug commands except CHIP_ERASE, READ_STATUS and GET_CHIP_ID are disabled and
will not function.
The CHIP_ERASE command is used to clear the Debug Lock bit.
