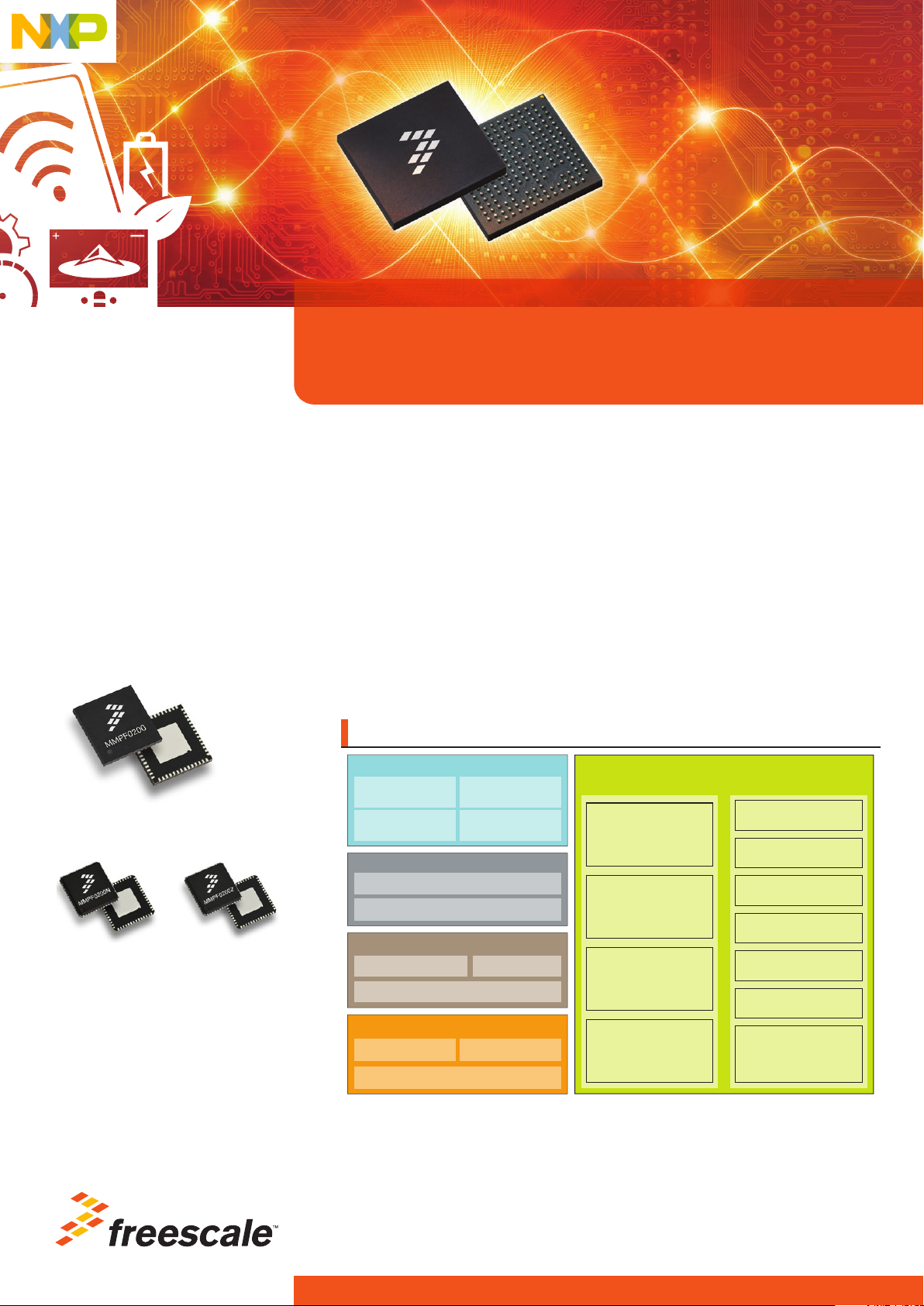

12-Channel Configurable PMIC
The MMPF0200 power management integrated circuit (PMIC) features a configurable
architecture that supports numerous outputs with various current ratings as well as
programmable voltage and sequencing. This enables the MMPF0200 to power the core
processor, memory and peripherals to provide a single-chip system power solution for multiple
applications, reducing design complexity and lowering overall bill of materials. The high-
performance architecture offers improved efficiency across the complete output range and
delivers advanced functionality for consumer, industrial and automotive applications.
The MMPF0200 is ideally suited to the i.MX 6SoloLite, i.MX 6Solo and i.MX 6DualLite
applications processors, for which it is incorporated into multiple reference designs. This
provides customers a platform-level solution from a single supplier to enable faster time to
market and reduced engineering effort. Use MMPF0100 for i.MX 6Dual and i.MX 6Quad
applications processors.
PF Series
MMPF0200
Target Applications
• Automotive infotainment
• Home energy management
• Home security systems
• Human-machine interface
• IP headphones
• IPTV
• Portable medical devices
• Tablets
OTP Startup Configuration Power Generation
Switching Regulators
SW1A/B
(0.3 to 1.875 V, 2.5 A)
SW2
(0.4 to 3.3 V, 1.5 A)
SW3A/B
(0.4 to 3.3 V)
Configurable 2.5 A or
1.25 A+1.25 A
Boost Regulator
(5 to 5.15 V, 600 mA)
USB OTG Supply
Linear Regulators
VGEN1
(0.8 to 1.55 V, 100 mA)
VGEN2
(0.8 to 1.55 V, 250 mA)
VGEN3
(1.8 to 3.3 V, 100 mA)
VGEN4
(1.8 to 3.3 V, 350 mA)
VGEN5
(1.8 to 3.3 V, 100 mA)
VGEN6
(1.8 to 3.3 V, 200 mA)
VSNVS
(1 to 3 V, 400 µA)
RTC Supply with Coin Cell
Charger
OTP Prototyping
(Try Before Buy)
Voltage
Sequence and
Timing
Phasing and
Frequency Selection
DDR Voltage Reference
Parallel MCU Interface
Thermal Current Limit
Short Circuit
Regulator Control
I
2
C Communication and Registers
Internal Core Voltage Reference
Bias and References
Logic and Control
Fault Detection and Protection
PF0200 Functional Internal Block Diagram
PF0200 Functional Internal Block Diagram
MMPF0200 PMIC Package for Consumer
MMPF0200N
(Extended Industrial)
Wettable Flank
Package
MMPF0200Z
(Automotive) Wettable
Flank Package
