PIC16F62X
DS30034D-page 6 Preliminary 2002 Microchip Technology Inc.
2.3.1 LOAD DATA FOR PROGRAM
MEMORY
Load data for program memory receives a 14-bit word,
and readies it to be programmed at the PC location.
See Figure 2-4 for timing details.

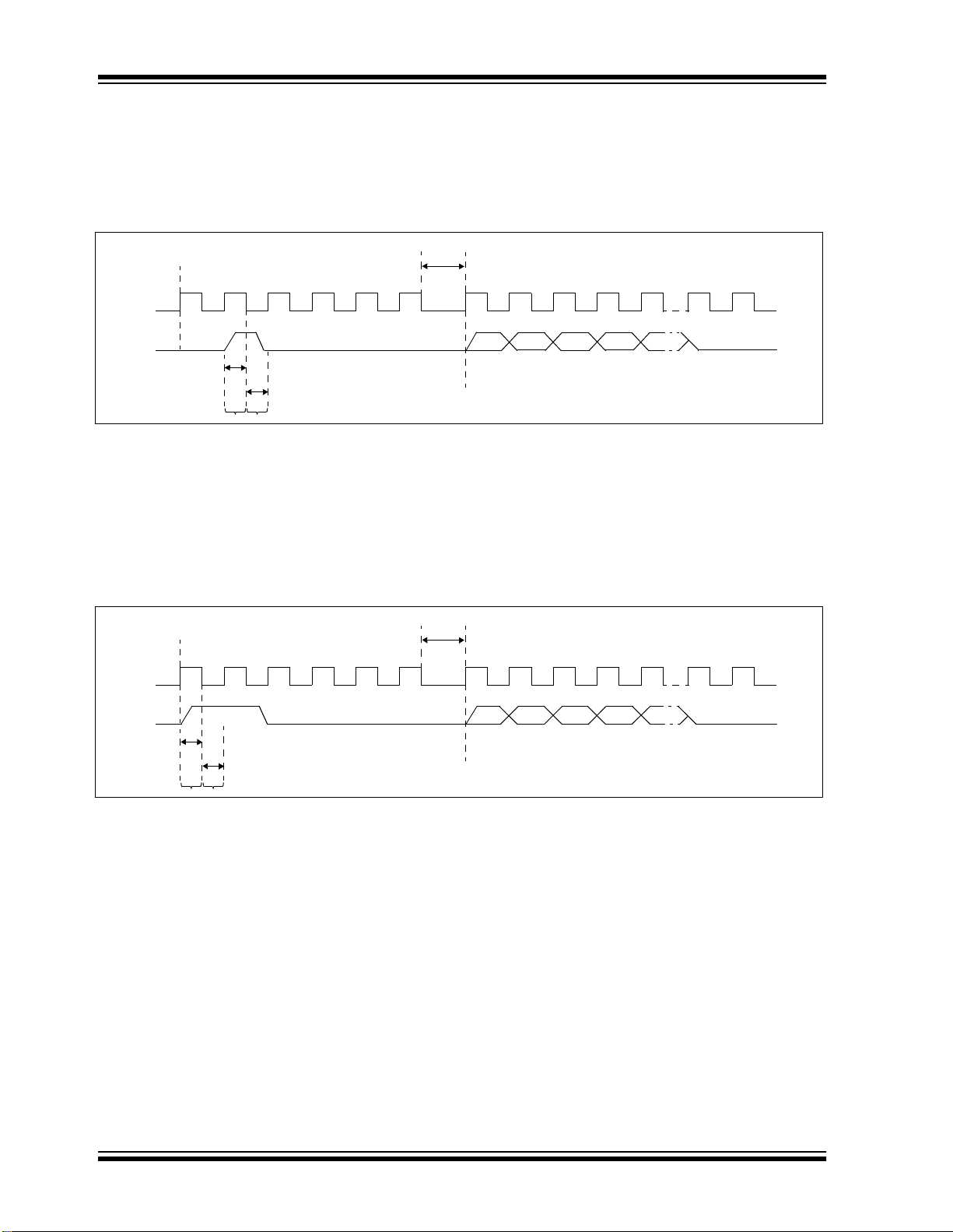

FIGURE 2-4: LOAD DATA COMMAND FOR PROGRAM MEMORY
2.3.2 LOAD DATA FOR DATA MEMORY
Load data for data memory receives an 8-bit byte, and
readies it to be programmed into data memory at loca-
tion specified by the lower 7 bits of the PC. Though the
data byte is only 8-bits wide, all 16 clock cycles are
required to allow the programming module to reset
properly.
FIGURE 2-5: LOAD DATA COMMAND FOR DATA MEMORY
Tset 1
Thld1
Tdly2
12 34 56
010000
12 3 4 515
16
stp_bit
RB6
(CLOCK)
RB7
(DATA)
X
X
XX
Tset1
Thld1
Tdly2
12 34 56
110000
12 3 4 515
16
stp_bit
RB6
(CLOCK)
RB7
(DATA)
X
XX
X
