PIC18F97J60 FAMILY
DS39688D-page 6 © 2009 Microchip Technology Inc.

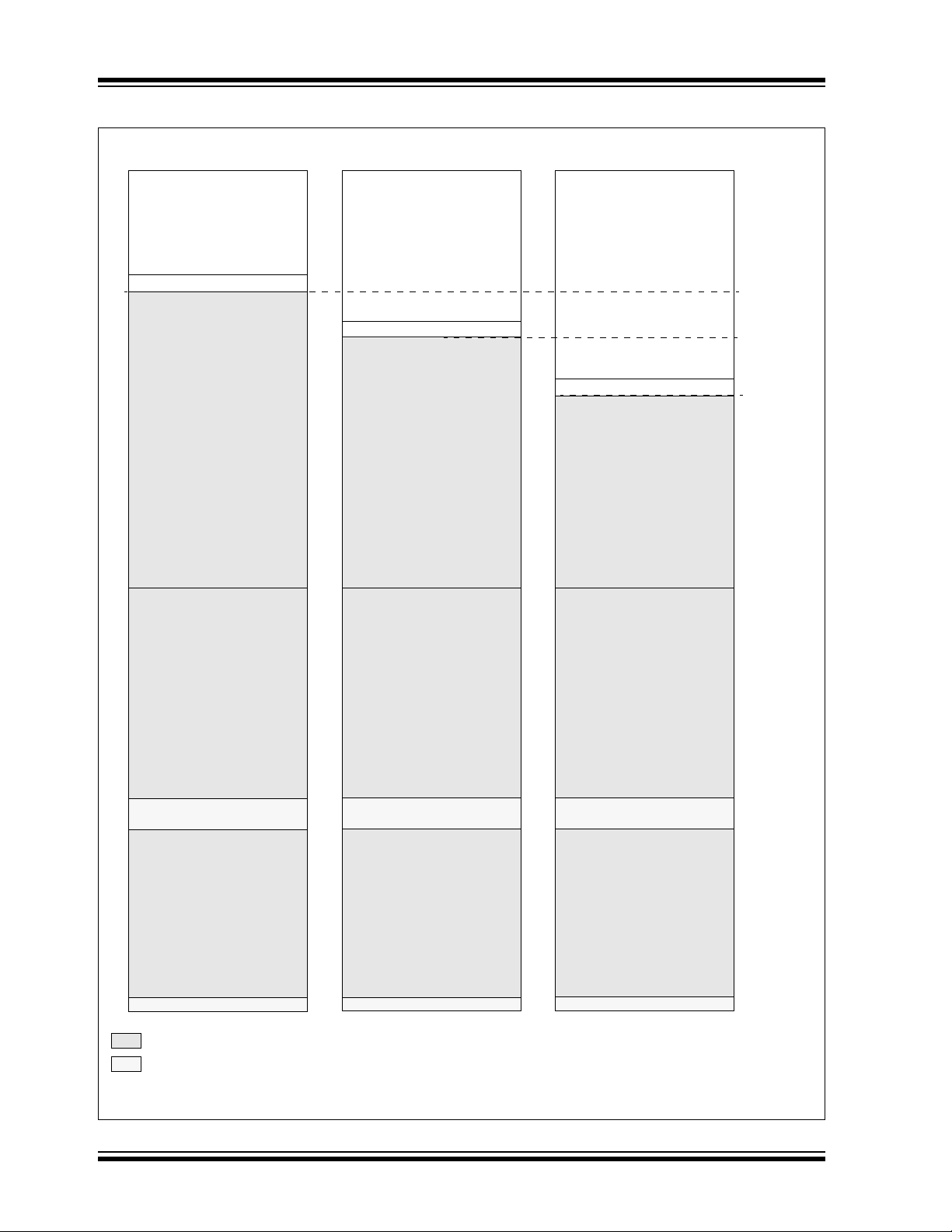

FIGURE 2-5: MEMORY MAPS FOR PIC18F97J60 FAMILY DEVICES
Note: Sizes of memory areas are not to scale. Sizes of accessible memory areas are enhanced to show detail.
Code Memory
Unimplemented
Read as ‘0’
Configuration
Space
Code Memory
Unimplemented
Read as ‘0’
Configuration
Space
000000h
1FFFFFh
3FFFFFh
01FFFFh
2FFFFFh
017FFFh
200000h
300000h
300005h
3FFFFEh
Configuration
Words
Configuration
Words
Device IDs
Device IDs
Configuration
Space
Configuration
Space
Memory spaces are unimplemented or unavailable in normal execution mode and read as ‘0’.
Memory spaces are read-only (Device IDs) or cannot be directly programmed by ICSP™ (Configuration Words).
Flash Configuration Words
Flash Configuration Words
Code Memory
Unimplemented
Read as ‘0’
Configuration
Space
Configuration
Words
Device IDs
Configuration
Space
Flash Configuration Words
00FFFFh
PIC18FX6J60 (64 Kbytes)
PIC18FX6J65 (96 Kbytes) PIC18FX7J60 (128 Kbytes)
