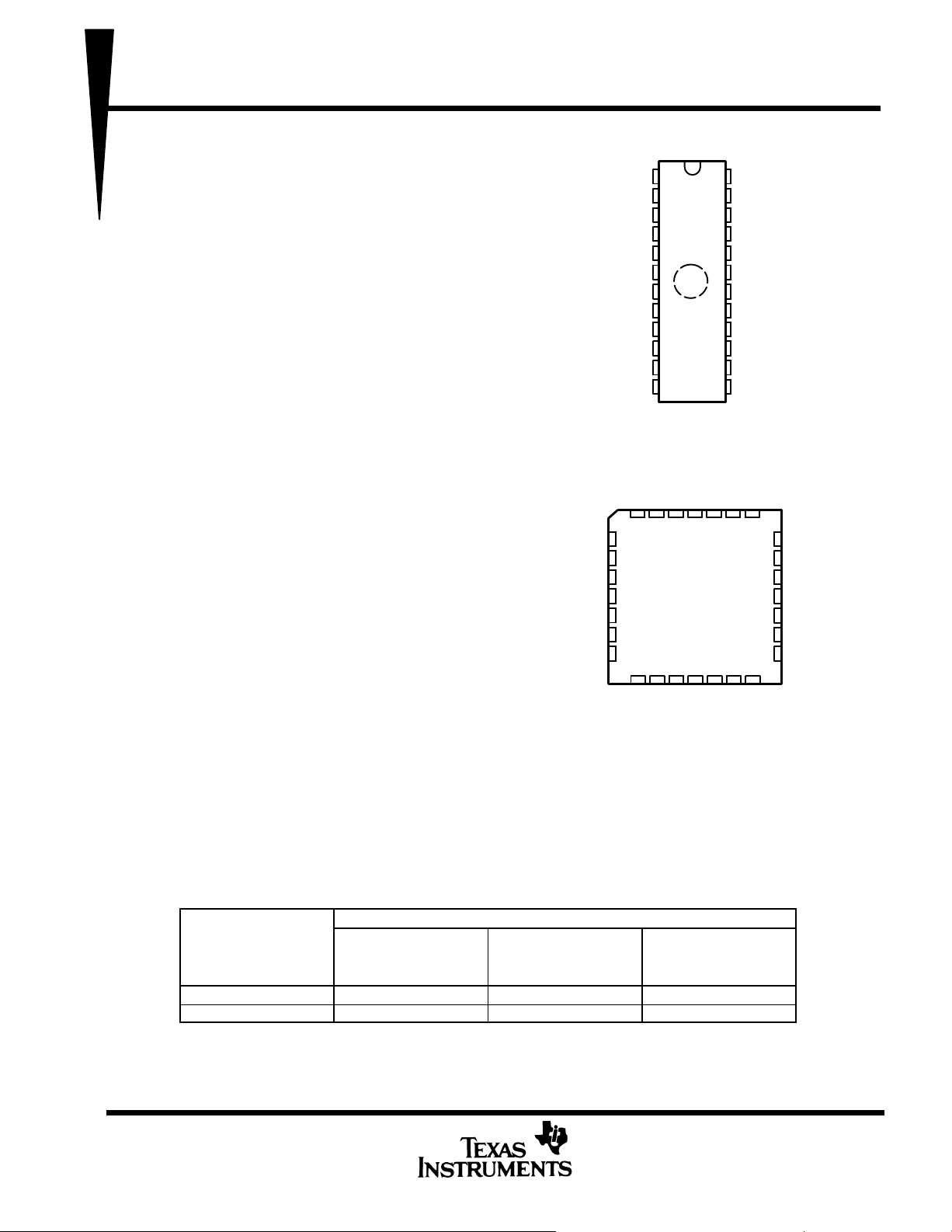

PLASTIC
DUAL-IN-LINE
(NT)
PLASTIC
CHIP CARRIER
(FN)
CERAMIC WINDOWED
DUAL-IN-LINE
(JTL)
TICPAL22V10Z-25C, TICPAL22V10Z-30I
EPIC™ CMOS PROGRAMMABLE ARRAY LOGIC CIRCUITS
SRPS007D − D3323, SEPTEMBER 1989 − REVISED DECEMBER 2010
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Copyright © 2010, Texas Instruments Incorporated
1
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
• 24-Pin Advanced CMOS PLD
• Virtually Zero Standby Power
• Propagation Delay Time:
I, I/O to I/O in the Turbo Mode
-25C . . . 25 ns Max
-30I . . . 30 ns Max
I, I/O to I/O in the Zero-Power Mode
-25C . . . 35 ns Max
-30I . . . 40 ns Max
CLK to Q
-25C . . . 15 ns Max
-30I . . . 20 ns Max
• Variable Product Term Distribution Allows
More Complex Functions to Be
Implemented
• Each Output Is User-Programmable for
Registered or Combinatorial Operation,
Polarity, and Output Enable Control
• Extra Terms Provide Logical Synchronous
Set and Asynchronous Reset Capability
• Preload Capability on All Registered
Outputs Allow for Improved Device Testing
• UV Light Erasable Cell Technology Allows
for:
Reconfigurable Logic
Reprogrammable Cells
Full Factory Testing for High
Programming Yield
• Programmable Design Security Bit
Prevents Copying of Logic Stored in Device
• Package Options Include Plastic
Dual-In-Line and Clip Carrier [for
One-Time-Programmable (OTP) Devices]
and Ceramic Dual-In-Line Windowed
Package
.
AVAILABLE OPTIONS
PACKAGE TYPE
T
A
RANGE
0°C to 75°C TICPAL22V10Z-25CJTL TICPAL22V10Z-25CNT TICPAL22V10Z-25CFN
−40°C to 85°C NA TICPAL22V10Z-30INT TICPAL22V10Z-30IFN
EPIC is a trademark of Texas Instruments Incorporated.
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
CLK/I
I
I
I
I
I
I
I
I
I
I
GND
V
CC
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I/O/Q
I
JTL AND NT PACKAGE
(TOP VIEW)
3212827
12 13
5
6
7
8
9
10
11
25
24
23
22
21
20
19
I/O/Q
I/O/Q
I/O/Q
NC
I/O/Q
I/O/Q
I/O/Q
I
I
I
NC
I
I
I
426
14 15 16 17 18
I
I
GND
NC
I
I/O/Q
I/O/Q
I
I
CLK/I
NC
I/O/Q
I/O/Q
FN PACKAGE
(TOP VIEW)
NC
− No internal connection
Pin assignments in operating mode
V
CC
