TMP122, TMP124
2
SBOS272B
www.ti.com

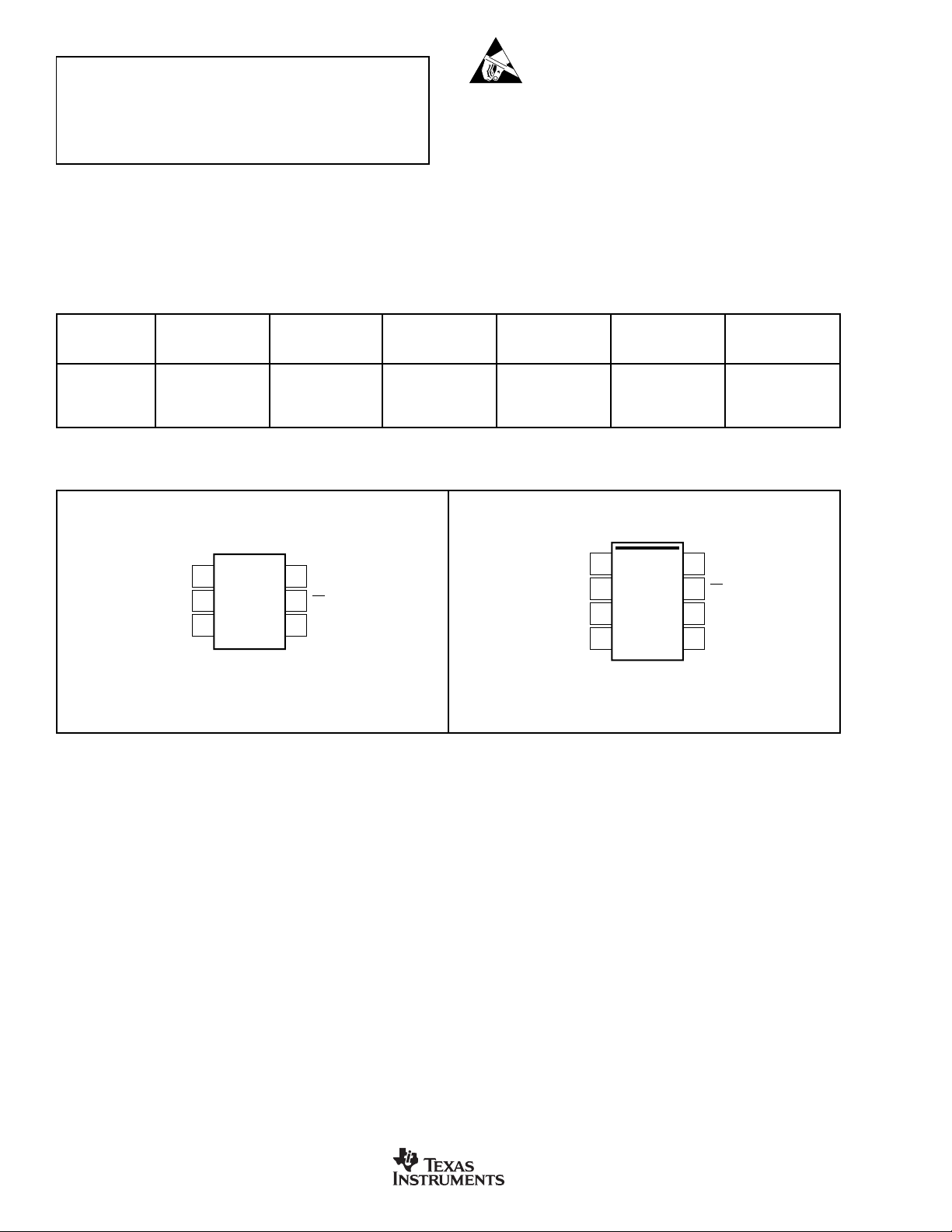

ABSOLUTE MAXIMUM RATINGS
(1)
Power Supply, V+.................................................................................. 7V
Input Voltage
(2)
....................................................................... –0.3V to 7V
Input Current..................................................................................... 10mA
Operating Temperature Range ......................................–55°C to +150°C
Storage Temperature Range .........................................–60°C to +150°C
Junction Temperature (T
J
Max) .................................................... +150°C
Lead Temperature (soldering)....................................................... +300°C
NOTES: (1) Stresses above those listed under “Absolute Maximum Ratings”
may cause permanent damage to the device. Exposure to absolute maximum
conditions for extended periods may affect device reliability. (2) Input voltage
rating applies to all TMP122 and TMP124 input voltages.
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Texas Instru-
ments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may be
more susceptible to damage because very small parametric
changes could cause the device not to meet its published
specifications.
SPECIFIED
PACKAGE TEMPERATURE PACKAGE ORDERING TRANSPORT
PRODUCT PACKAGE-LEAD DESIGNATOR
(1)
RANGE MARKING NUMBER MEDIA, QUANTITY
TMP122 SOT23-6 DBV –40°C to +125°C T122 TMP122AIDBVT Tape and Reel, 250
"" "" "TMP122AIDBVR Tape and Reel, 3000
TMP124 SO-8 D –40°C to +125°C T124 TMP124AID Rails, 100
"" "" "TMP124AIDR Tape and Reel, 2500
PACKAGE/ORDERING INFORMATION
NOTE: (1) For the most current specifications and package information, refer to our web site at www.ti.com.
PIN CONFIGURATIONS
Top View SOT23-6
ALERT
GND
V+
SO/I
CS
SCK
1
2
3
6
5
4
T122
TMP122
Top View SO-8
SI/O
SC
NC
GND
V+
CS
NC
ALERT
1
2
3
4
8
7
6
5
T124
TMP124
NC = No Connection
