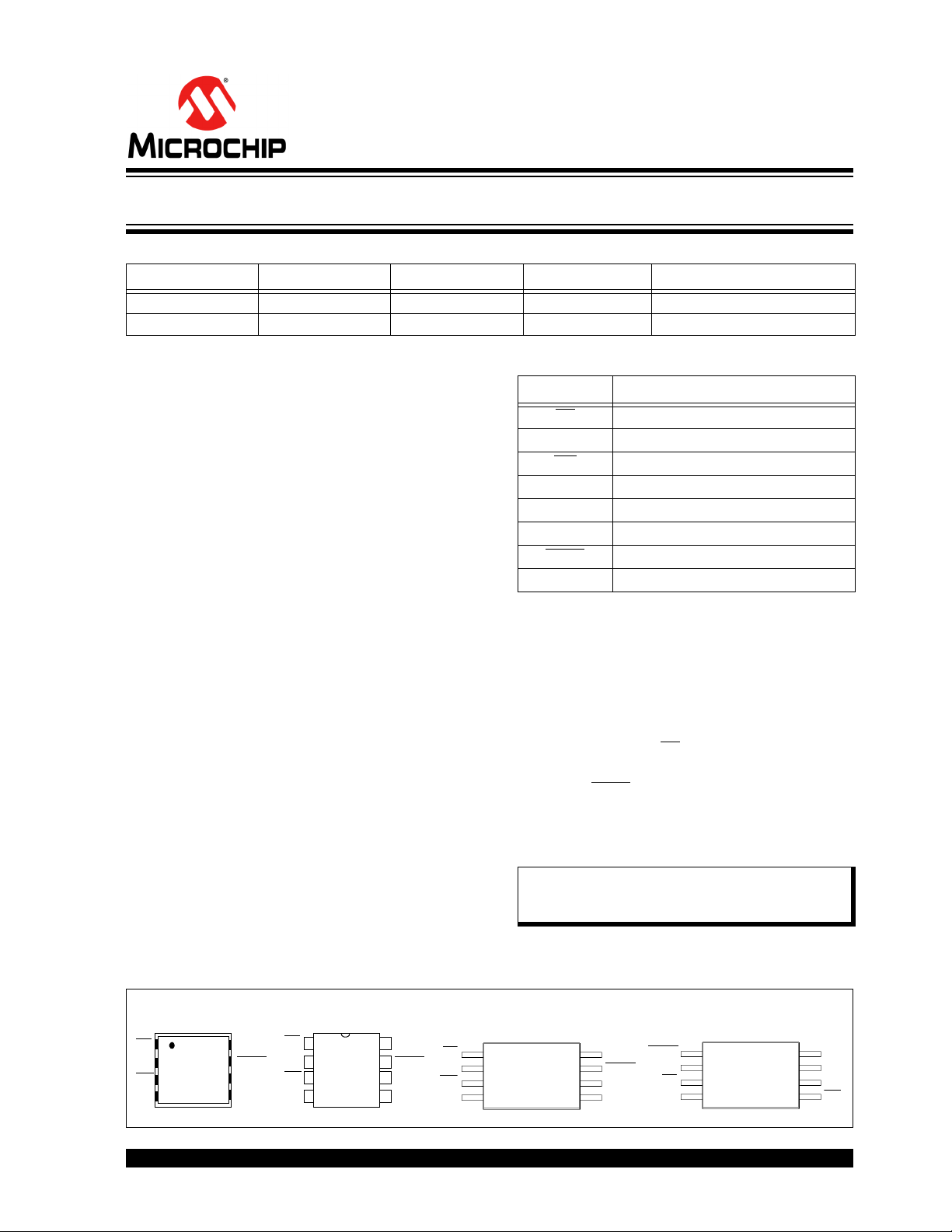

2003-2019 Microchip Technology Inc. DS20001831F-page 1
25AA128/25LC128
Device Selection Table
Features
• Maximum Clock: 10 MHz
• Low-Power CMOS Technology:
- Write current (maximum): 5 mA at 5.5V,
10 MHz
- Read current: 5 mA at 5.5V, 10 MHz
- Standby current: 5 µA at 5.5V
• 16,384 x 8-Bit Organization
• 64-Byte Page
• Self-Timed Erase and Write Cycles
(5 ms maximum)
• Block Write Protection:
- Protect none, 1/4, 1/2 or all of array
• Built-In Write Protection:
- Power-on/off data protection circuitry
- Write enable latch
- Write-protect pin
• Sequential Read
• High Reliability:
- Endurance: 1,000,000 erase/write cycles
- Data retention: >200 years
- ESD protection: >4000V
• RoHS Compliant
• Temperature Ranges;
• Automotive AEC-Q100 Qualified
Packages
• 8-Lead DFN, 8-Lead PDIP, 8-Lead SOIC,
8-Lead SOIJ and 8-Lead TSSOP
Pin Function Table
Description
The Microchip Technology Inc. 25XX128
(1)
is a
128 Kbit Serial Electrically Erasable PROM. The mem-
ory is accessed via a simple Serial Peripheral Interface
(SPI) compatible serial bus. The bus signals required
are a clock input (SCK) plus separate data in (SI) and
data out (SO) lines. Access to the device is controlled
through a Chip Select (CS
) input.
Communication to the device can be paused via the
hold pin (HOLD
). While the device is paused,
transitions on its inputs will be ignored, with the
exception of Chip Select, allowing the host to service
higher priority interrupts.
Part Number V
CC Range Page Size Temp. Ranges Packages
25AA128 1.8V-5.5V 64 Byte I MF, P, SN, SM, ST
25LC128 2.5V-5.5V 64 Byte I, E MF, P, SN, SM, ST
- Industrial (I): -40Cto +85C
- Extended (E): -40°C to +125°C
Name Function
CS
Chip Select Input
SO Serial Data Output
WP
Write-Protect
V
SS Ground
SI Serial Data Input
SCK Serial Clock Input
HOLD
Hold Input
V
CC Supply Voltage
Note 1: 25XX128 is used in this document as a
generic part number for the 25AA128/
25LC128 devices.
1
2
3
4
8
7
6
5
8-Lead TSSOP
8-Lead DFN
VSS
HOLD
SCK
SI
V
CC
(Top View)
(Top View)
1
2
3
4
8
7
6
5
8-Lead PDIP/SOIC/SOIJ
(Top View)
HOLD
SCK
SI
V
CC
1
2
3
4
8
7
6
5
HOLD
SCK
SI
V
CC
CS
SO
WP
VSS
CS
SO
WP
VSS
CS
SO
WP
1
2
3
4
8
7
6
5
8-Lead X-Rotated TSSOP
(Top View)
SI
V
SS
WP
SO
V
CC
CS
1
2
3
4
8
7
6
5
SCK
HOLD
128K SPI Bus Serial EEPROM
