UG-461 Software User Guide
Rev. 0 | Page 4 of 32
BOARD CONFIGURATION WINDOW
There are two ways to open the Board Configuration window:
• Click Configure (see Figure 3).
• Click the image of the ezLINX hardware platform on the
bottom left of any window in the application software (see
Figure 4).
The Board Configuration window is divided into three
sections that allow setting the network features, updating the
firmware, and the enabling/disabling the transceivers. The
buttons near the bottom of the window depend on which
method is used to open the Board Configuration window. If
the window is accessed by clicking Configure, the buttons
appear as Use Changes, View Configuration, and Cancel
Changes. If the window is accessed by clicking the image of the
ezLINX hardware platform, the buttons appear as Connect,
View Configuration, and Configure.
10959-003

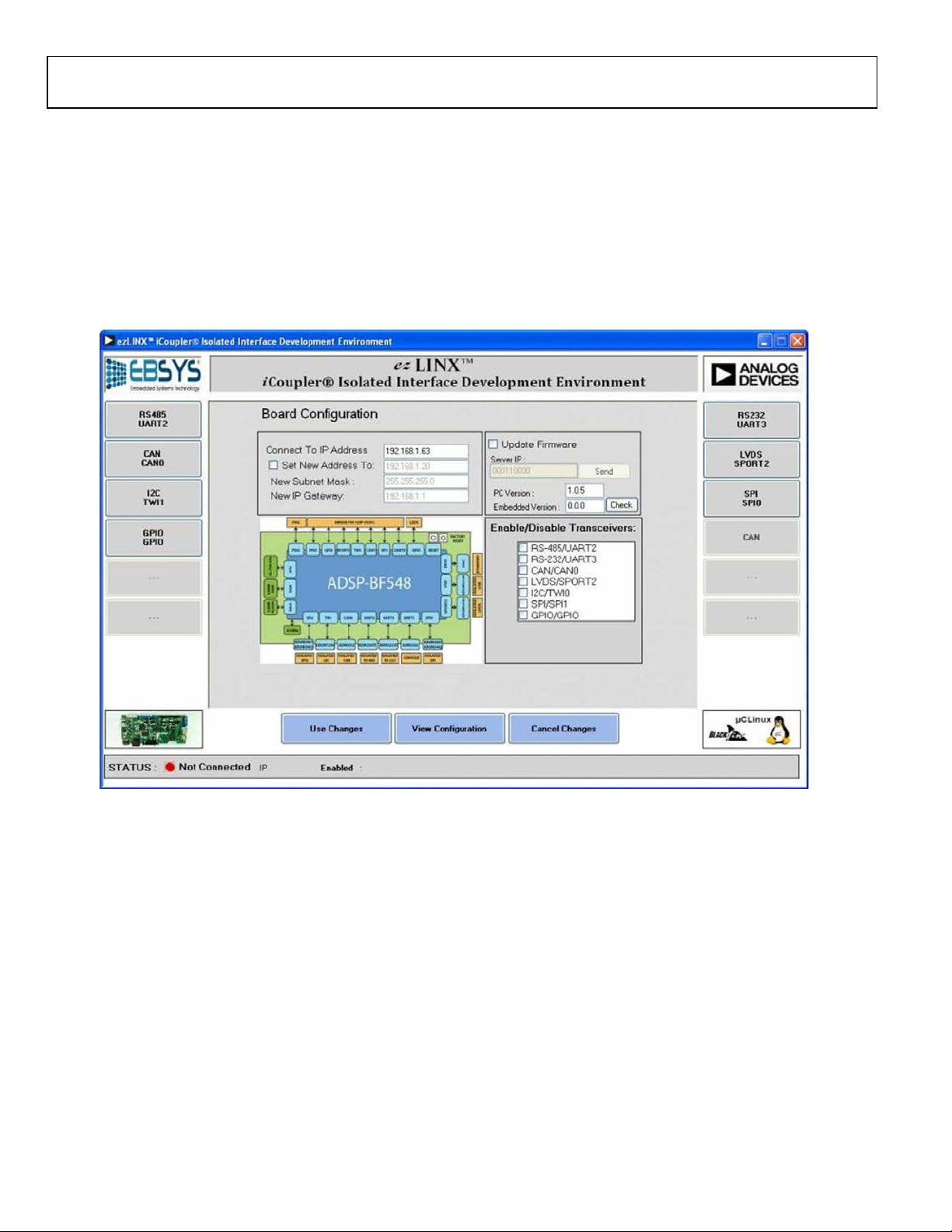

Figure 3. Board Configuration Window Accessed by Clicking Configure
