Software User Guide UG-461
Rev. 0 | Page 5 of 32
10959-004

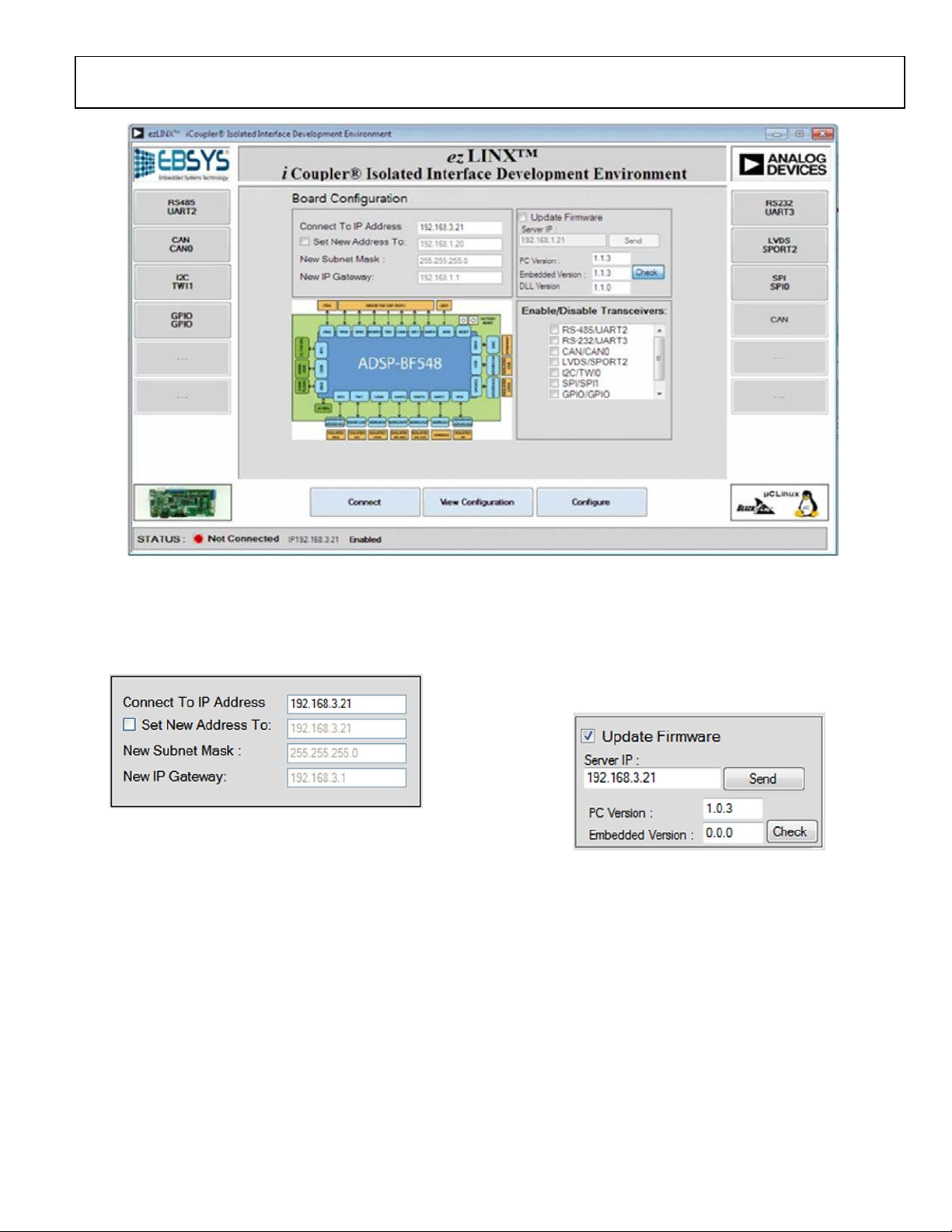

Figure 4. Board Configuration Window Accessed by Clicking the Image of the ezLINX Hardware Platform
SETTING THE NETWORK FEATURES
The upper left section of the Board Configuration window
(shown in Figure 5) is used to modify the network features of
the ezLINX hardware platform.
10959-005
Figure 5. Network Features Box
The boxes in this section can be used as follows:
• Connect To IP Address box: Specify the IP address of the
ezLINX hardware platform that the PC application
software connects to when Connect is clicked. The default
address is 192.168.3.21.
• Set New Address To box: Specify a new IP address to
configure the connected ezLINX hardware platform. You
must select the Set New Address To box and connect an
ezLINX hardware platform before setting a new address or
using the New Subnet Mask and New IP Gateway
functions.
• New Subnet Mask box: Specify a new subnet mask to
configure the connected ezLINX hardware platform.
• New IP Gateway box: Specify a new IP gateway to
configure the connected ezLINX hardware platform.
CHECKING/UPDATING THE FIRMWARE
The upper right section of the Board Configuration window
(shown in Figure 6) is used to easily load newer firmware
versions and check the current version of both the firmware (via
the Embedded Version box in Figure 6) and the PC application
software (via the PC Version box in Figure 6).
10959-006
Figure 6. Firmware Upgrade Box
The boxes in this section can be used as follows:
• Server IP box: Specify the IP address of the server containing
the new version of the embedded software. Click Send to load
the newer version of the software to the connected ezLINX
hardware platform. For more information about performing a
firmware update, see the Updating the Firmware section of
this user guide.
• PC Versi on box: This box shows the current version of the
PC application software.
• Embedded Version box: This box shows the version of
the embedded software on the ezLINX hardware platform.
Click Check to request which version is currently on the
hardware platform.
