DS90C031B
LVDS Quad CMOS Differential Line Driver
General Description
The DS90C031B is a quad CMOS differential line driver
designed for applications requiring ultra low power dissipa-
tion and high data rates. The device is designed to support
data rates in excess of 155.5 Mbps (77.7 MHz) utilizing Low
Voltage Differential Signaling (LVDS) technology.
The DS90C031B accepts TTL/CMOS input levels and trans-
lates them to low voltage (350 mV) differential output sig-
nals. In addition the driver supports a TRI-STATE function
that may be used to disable the output stage, disabling the
load current, and thus dropping the device to an ultra low idle
power state of 11 mW typical.
In addition, the DS90C031B provides power-off high imped-
ance LVDS outputs. This feature assures minimal loading
effect on the LVDS bus lines when V
CC
is not present.
The DS90C031B and companionline receiver (DS90C032B)
provide a new alternative to high power pseudo-ECL devices
for high speed point-to-point interface applications.
Features
n
>
155.5 Mbps (77.7 MHz) switching rates
n High impedance LVDS outputs with power-off
n
±
350 mV differential signaling
n Ultra low power dissipation
n 400 ps maximum differential skew (5V, 25˚C)
n 3.5 ns maximum propagation delay
n Industrial operating temperature range
n Pin compatible with DS26C31, MB571 (PECL) and
41LG (PECL)
n Conforms to ANSI/TIA/EIA-644 LVDS standard
n Offered in narrow body SOIC package
n Fail-safe logic for floating inputs

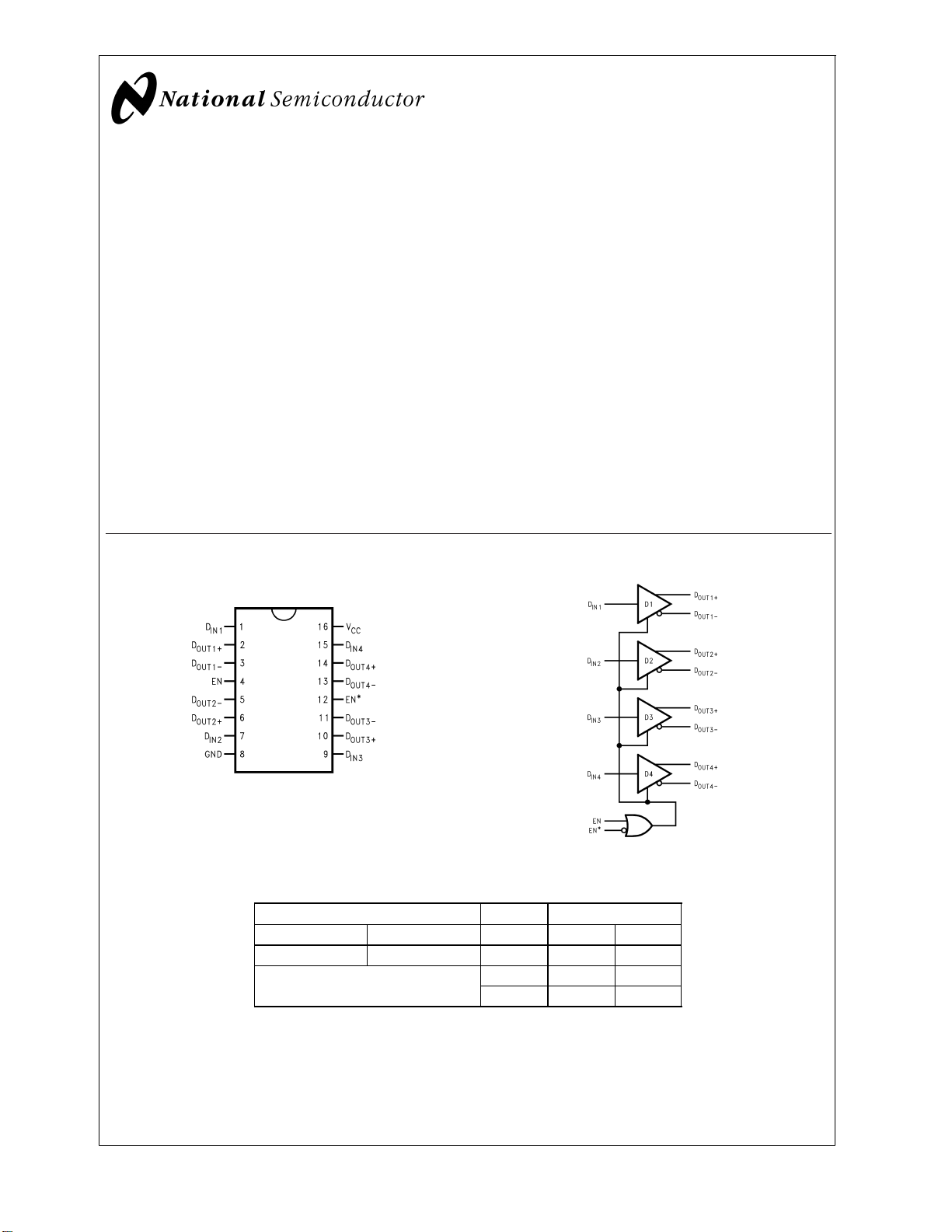

Connection Diagram
Dual-In-Line
10098901
Order Number DS90C031BTM
See NS Package Number M16A
Functional Diagram
10098902
Driver Truth Table
Enables Input Outputs
EN EN* D
IN
D
OUT+
D
OUT−
LHXZZ
All other combinations L L H
of ENABLE inputs H H L
October 2001
DS90C031B LVDS Quad CMOS Differential Line Driver
© 2001 National Semiconductor Corporation DS100989 www.national.com
