LC2D12F7 其他数据使用手册 - Schneider Electric（施耐德）
制造商:
Schneider Electric（施耐德）
描述:
Tesys D 反向接触器螺钉夹连接 切换类别 AC3 DIN 导轨安装 仅与 Tesys 过载继电器兼容 工作温度范围：-20 至 +60°C ### 注库存号 609-0289 和 609-0324 是低功耗 24V 直流变体。### 认可EN 60947，VDE 0660### Schneider Electric TeSys D 系列
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
LC2D12F7数据手册
Page:
of 4 Go
若手册格式错乱，请下载阅览PDF原文件

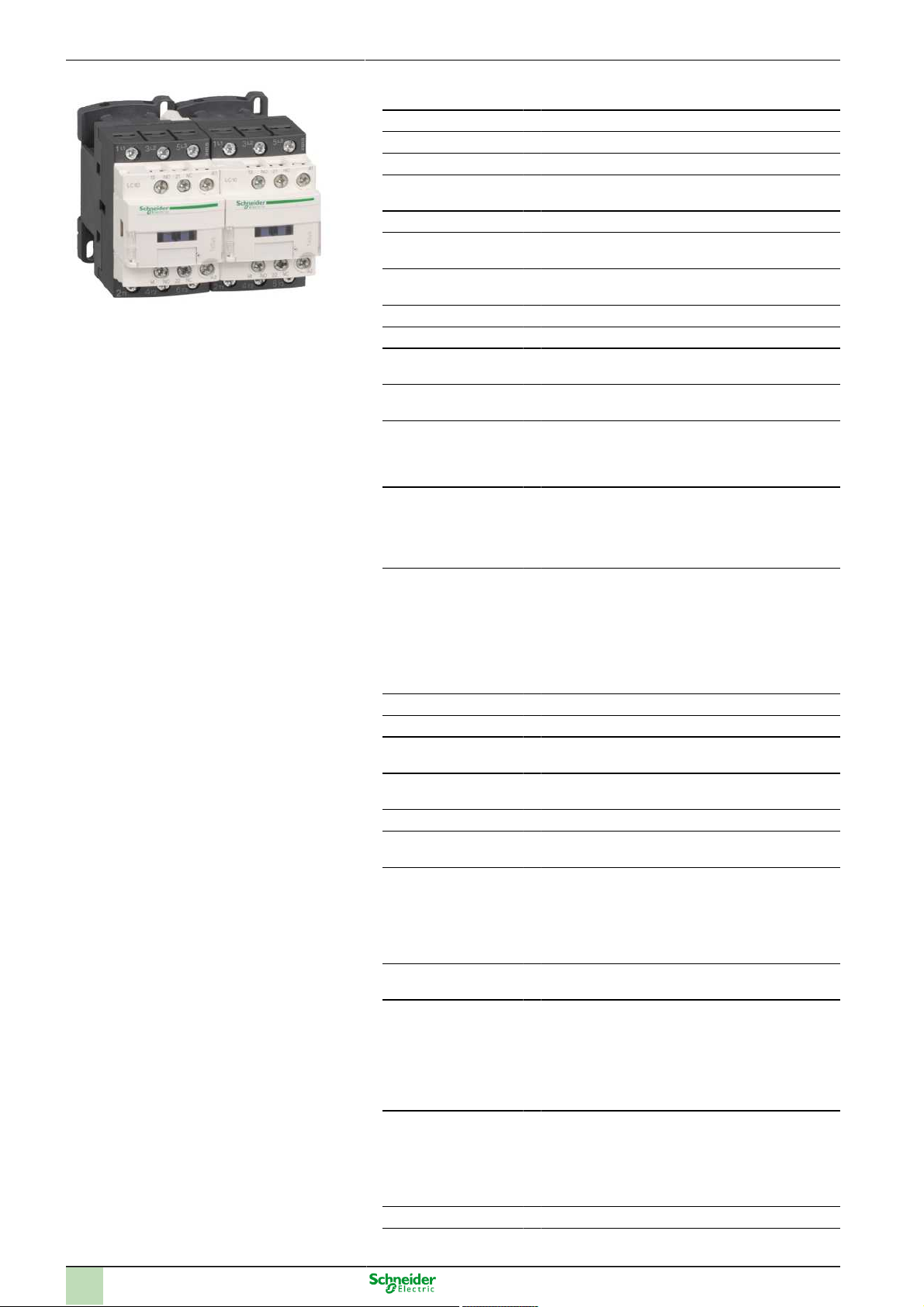

2
Main
Commercial Status Commercialised
Range TeSys
Product name TeSys D
Product or component
type
Reversing contactor
Device short name LC2D
Contactor application Motor control
Resistive load
Utilisation category AC-1
AC-3
Device presentation Preassembled with reversing power busbar
Poles description 3P
Power pole contact
composition
3 NO
[Ue] rated operational
voltage
<= 300 V DC for power circuit
<= 690 V AC 25...400 Hz for power circuit
[Ie] rated operational
current
12 A (<= 60 °C) at <= 440 V AC AC-3 for power cir-
cuit
25 A (<= 60 °C) at <= 440 V AC AC-1 for power cir-
cuit
Motor power kW 7.5 kW at 660...690 V AC 50/60 Hz
7.5 kW at 500 V AC 50/60 Hz
5.5 kW at 415...440 V AC 50/60 Hz
5.5 kW at 380...400 V AC 50/60 Hz
3 kW at 220...230 V AC 50/60 Hz
Motor power HP (UL /
CSA)
10 hp at 575/600 V AC 50/60 Hz for 3 phases mo-
tors
7.5 hp at 460/480 V AC 50/60 Hz for 3 phases mo-
tors
3 hp at 230/240 V AC 50/60 Hz for 3 phases motors
3 hp at 200/208 V AC 50/60 Hz for 3 phases motors
2 hp at 230/240 V AC 50/60 Hz for 1 phase motors
1 hp at 115 V AC 50/60 Hz for 1 phase motors
Control circuit type AC 50/60 Hz
Control circuit voltage 110 V AC 50/60 Hz
Auxiliary contact com-
position
1 NO + 1 NC
[Uimp] rated impulse
withstand voltage
6 kV conforming to IEC 60947
Overvoltage category III
[Ith] conventional free
air thermal current
25 A at <= 60 °C for power circuit
10 A at <= 60 °C for signalling circuit
Irms rated making ca-
pacity
250 A DC for signalling circuit conforming to IEC
60947-5-1
140 A AC for signalling circuit conforming to IEC
60947-5-1
250 A at 440 V for power circuit conforming to IEC
60947
Rated breaking capac-
ity
250 A at 440 V for power circuit conforming to IEC
60947
[Icw] rated short-time
withstand current
140 A 100 ms signalling circuit
120 A 500 ms signalling circuit
100 A 1 s signalling circuit
210 A <= 40 °C 1 s power circuit
105 A <= 40 °C 10 s power circuit
61 A <= 40 °C 1 min power circuit
30 A <= 40 °C 10 min power circuit
Associated fuse rating 25 A gG at <= 690 V coordination type 2 for power
circuit
40 A gG at <= 690 V coordination type 1 for power
circuit
10 A gG for signalling circuit conforming to IEC
60947-5-1
Average impedance 2.5 mOhm at 50 Hz - Ith 25 A for power circuit
