LMC7111
Tiny CMOS Operational Amplifier with Rail-to-Rail Input
and Output
General Description
The LMC7111 is a micropower CMOS operational amplifier
available in the space saving SOT 23-5 package. This
makes the LMC7111 ideal for space and weight critical de-
signs. The wide common-mode input range makes it easy to
design battery monitoring circuits which sense signals above
the V
+
supply. The main benefits of the Tiny package are
most apparent in small portable electronic devices, such as
mobile phones, pagers, and portable computers. The tiny
amplifiers can be placed on a board where they are needed,
simplifying board layout.
Features
n Tiny SOT23-5 package saves space
n Very wide common mode input range
n Specified at 2.7V, 5V, and 10V
n Typical supply current 25 µA at 5V
n 50 kHz gain-bandwidth at 5V
n Similar to popular LMC6462
n Output to within 20 mV of supply rail at 100k load
n Good capacitive load drive
Applications
n Mobile communications
n Portable computing
n Current sensing for battery chargers
n Voltage reference buffering
n Sensor interface
n Stable bias for GaAs RF amps

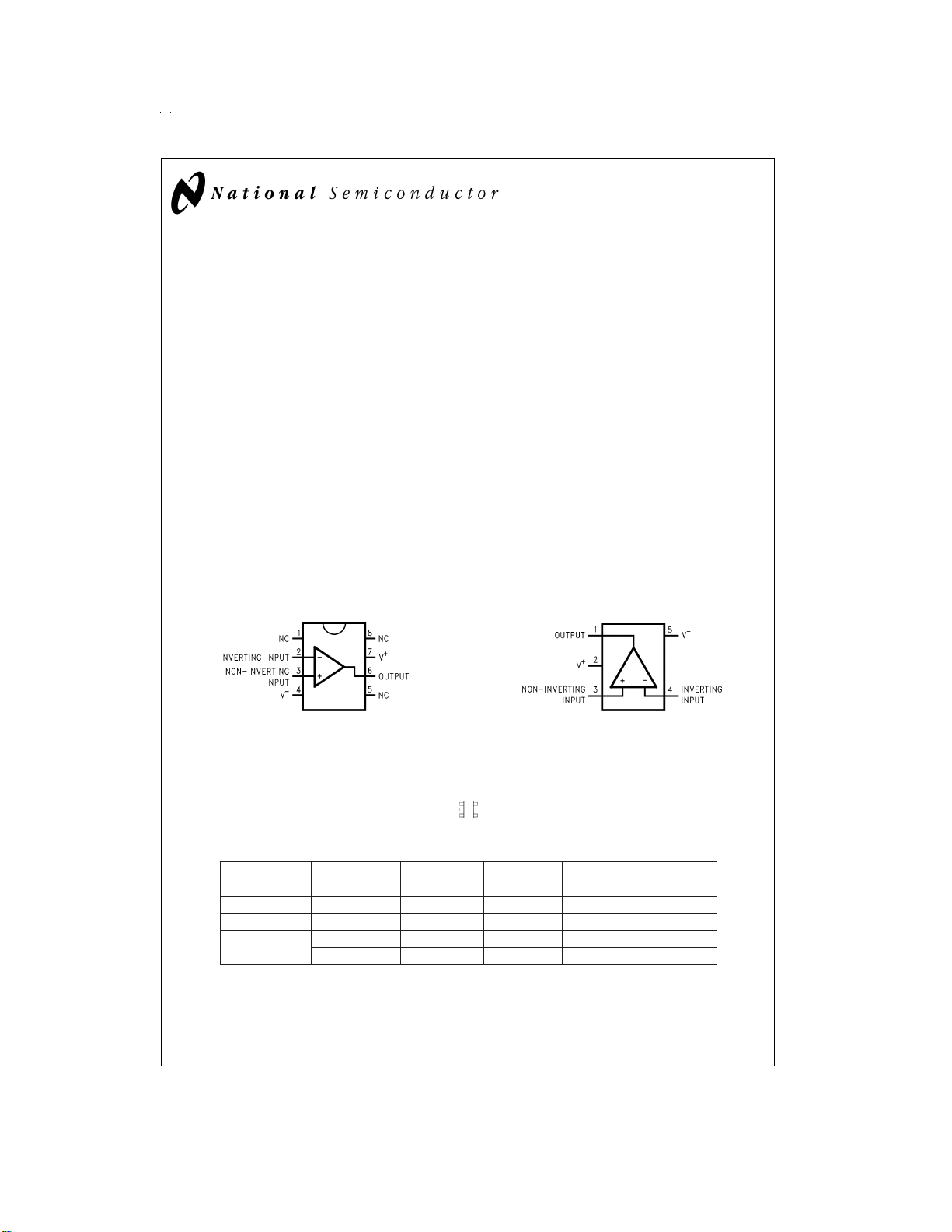

Connection Diagrams
Ordering Information
Package Ordering NSC Drawing Package Transport Media
Information Number Marking
8-Pin DIP LMC7111AIN N08E LMC7111AIN Rails
8-Pin DIP LMC7111BIN N08E LMC7111BIN Rails
5-Pin SOT23-5
LMC7111BIM5 MA05A A01B 1k units Tape and Reel
LMC7111BIM5X MA05A A01B 3k Units Tape and Reel
8-Pin DIP
DS012352-1
Top View
5-Pin SOT23-5
DS012352-2
Top View
Actual Size
DS012352-19
August 1999
LMC7111 Tiny CMOS Operational Amplifier with Rail-to-Rail Input and Output
© 1999 National Semiconductor Corporation DS012352 www.national.com
