________________General Description
The MAX3095/MAX3096 are rugged, low-power, quad,
RS-422/RS-485 receivers with electrostatic discharge
(ESD) protection for use in harsh environments. All
receiver inputs are protected to ±15kV using IEC 1000-
4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact
Discharge, and ±15kV using the Human Body Model.
The MAX3095 operates from a +5V supply, while the
MAX3096 operates from a +3.3V supply. Receiver prop-
agation delays are guaranteed to within ±8ns of a pre-
determined value, thereby ensuring device-to-device
matching across production lots.
Complementary enable inputs can be used to place the
devices in a 1nA low-power shutdown mode in which
the receiver outputs are high impedance. When active,
these receivers have a fail-safe feature that guarantees
a logic-high output if the input is open circuit. They also
feature a quarter-unit-load input impedance that allows
128 receivers on a bus.
The MAX3095/MAX3096 are pin-compatible, low-power
upgrades to the industry-standard ’26LS32. They are
available in a space-saving QSOP package.
________________________Applications
Telecommunications Equipment
Rugged RS-422/RS-485/RS-423 Bus Receiver
Receivers for ESD-Sensitive Applications
Level Translators
____________________________Features
♦♦
ESD Protection:
±15kV—IEC 1000-4-2, Air-Gap Discharge
±8kV—IEC 1000-4-2, Contact Discharge
±15kV—Human Body Model
♦♦
Guaranteed Propagation-Delay Tolerance
Between All ICs:
±8ns (MAX3095)
±10ns (MAX3096)
♦♦
Single +3V Operation (MAX3096)
Single +5V Operation (MAX3095)
♦♦
16-Pin QSOP (8-pin SO footprint)
♦♦
10Mbps Data Rate
♦♦
Allow up to 128 Receivers on the Bus
♦♦
1nA Low-Power Shutdown Mode
♦♦
2.4mA Operating Supply Current
♦♦
Pin-Compatible Upgrades to ’26LS32
MAX3095/MAX3096
±15kV ESD-Protected, 10Mbps, 3V/5V,
Quad RS-422/RS-485 Receivers
________________________________________________________________
Maxim Integrated Products
1
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
B1 V
CC
B4
A4
Y4
G
Y3
A3
B3
TOP VIEW
MAX3095
MAX3096
DIP/SO/QSOP
A1
Y1
A2
G
Y2
B2
GND
+
Pin Configuration
Y1
Y2
Y3
Y4
A1
B1
A2
B2
A3
B3
A4
B4
MAX3095
MAX3096
V
CC
GND
G
G

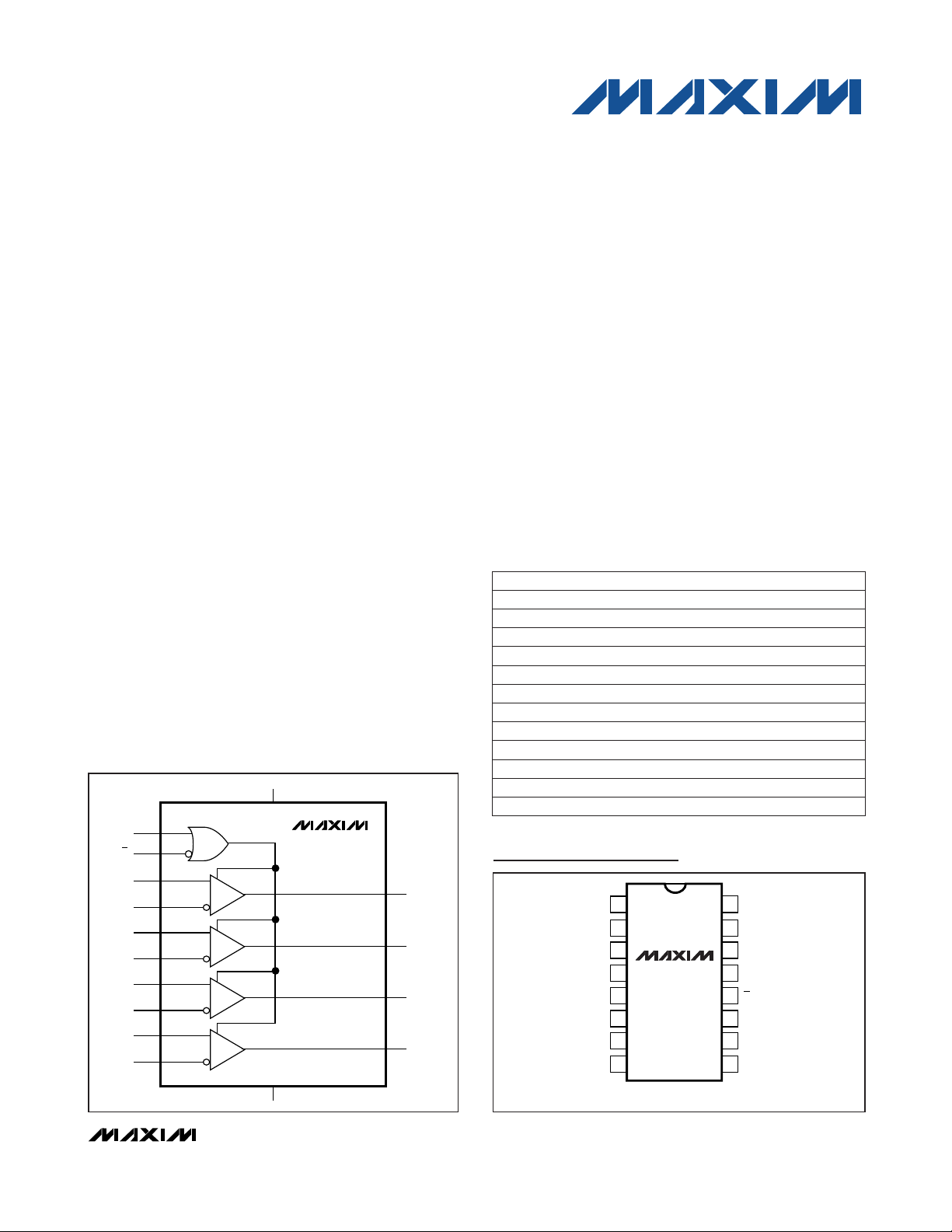

________________Functional Diagram
19-0498; Rev 3; 1/10
PART
MAX3095CPE+
MAX3095CSE+
MAX3095CEE+ 0°C to +70°C
0°C to +70°C
0°C to +70°C
TEMP. RANGE PIN-PACKAGE
16 Plastic DIP
16 Narrow SO
16 QSOP
_______________Ordering Information
MAX3095EPE+
MAX3095ESE+
MAX3095EEE+ -40°C to +85°C
-40°C to +85°C
-40°C to +85°C 16 Plastic DIP
16 Narrow SO
16 QSOP
MAX3096CPE+
MAX3096CSE+
MAX3096CEE+ 0°C to +70°C
0°C to +70°C
0°C to +70°C 16 Plastic DIP
16 Narrow SO
16 QSOP
MAX3096EPE+
MAX3096ESE+
MAX3096EEE+ -40°C to +85°C
-40°C to +85°C
-40°C to +85°C 16 Plastic DIP
16 Narrow SO
16 QSOP
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
+
Denotes a lead(Pb)-free/RoHS-compliant package.
