© 2008 Microchip Technology Inc. DS11177E-page 3
MCP606/7/8/9
AC CHARACTERISTICS
MCP608 CHIP SELECT CHARACTERISTICS

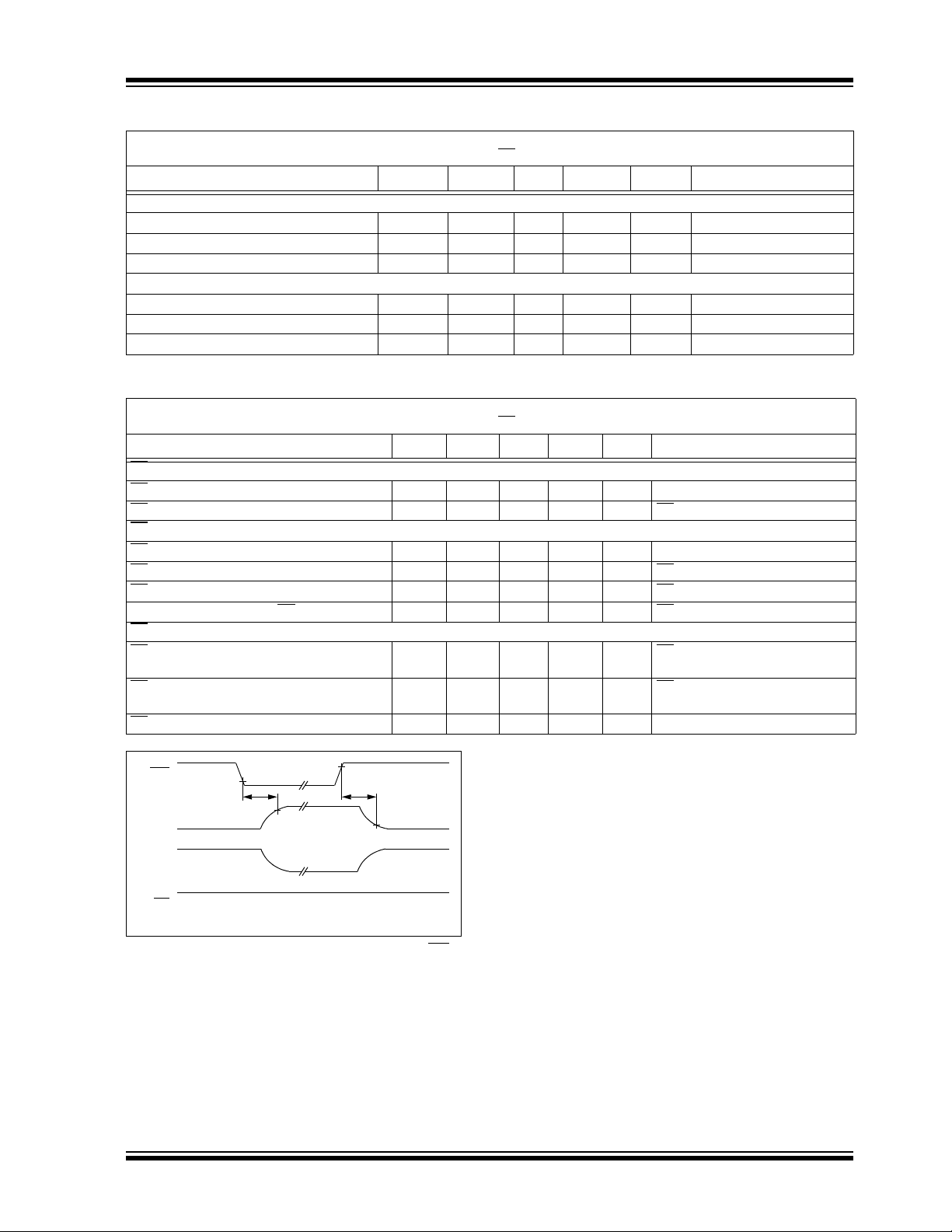

FIGURE 1-1: Timing Diagram for the CS
Pin on the MCP608.
Electrical Characteristics: Unless otherwise indicated, V
DD
= +2.5V to +5.5V, V
SS
=GND, T
A
=+25°C, V
CM
=V
DD
/2,
V
OUT
≈ V
DD
/2, V
L
= V
DD
/2, R
L
= 100 kΩ to V
L
and C
L
= 60 pF, and CS is tied low (refer to Figure 1-2 and Figure 1-3).
Parameters Sym Min Typ Max Units Conditions
AC Response
Gain Bandwidth Product GBWP — 155 — kHz
Phase Margin PM — 62 — ° G = +1 V/V
Slew Rate SR — 0.08 — V/µs
Noise
Input Noise Voltage E
ni
—2.8—µV
P-P
f = 0.1 Hz to 10 Hz
Input Noise Voltage Density e
ni
—38—nV/√Hz f = 1 kHz
Input Noise Current Density i
ni
—3—fA/√Hz f = 1 kHz
Electrical Characteristics: Unless otherwise indicated, V
DD
= +2.5V to +5.5V, V
SS
=GND, T
A
=+25°C, V
CM
=V
DD
/2,
V
OUT
≈ V
DD
/2, V
L
= V
DD
/2, R
L
= 100 kΩ to V
L
and C
L
= 60 pF, and CS is tied low (refer to Figure 1-2 and Figure 1-3).
Parameters Sym Min Typ Max Units Conditions
CS
Low Specifications
CS
Logic Threshold, Low V
IL
V
SS
—0.2V
DD
V
CS
Input Current, Low I
CSL
-0.1 0.01 — µA CS = 0.2V
DD
CS High Specifications
CS
Logic Threshold, High V
IH
0.8 V
DD
—V
DD
V
CS
Input Current, High I
CSH
—0.010.1 µACS = V
DD
CS Input High, GND Current I
SS
-2 -0.05 — µA CS = V
DD
Amplifier Output Leakage, CS High I
O(LEAK)
—10—nACS = V
DD
CS Dynamic Specifications
CS
Low to Amplifier Output Turn-on Time t
ON
— 9 100 µs CS = 0.2V
DD
to V
OUT
= 0.9 V
DD
/2,
G = +1 V/V, R
L
= 1 kΩ to V
SS
CS High to Amplifier Output Hi-Z t
OFF
—0.1— µsCS = 0.8V
DD
to V
OUT
= 0.1 V
DD
/2,
G = +1 V/V, R
L
= 1 kΩ to V
SS
CS Hysteresis V
HYST
—0.6— VV
DD
= 5.0V
CS
V
OUT
I
SS
I
CS
V
IL
V
IH
t
ON
t
OFF
-50 nA -50 nA
-18.7 µA
-50 nA -50 nA
Hi-Z Hi-Z
(typical)
(typical)
(typical)
(typical) (typical)
