MCT5201M, MCT5210M, MCT5211M — Low Input Current Phototransistor Optocouplers
©1983 Fairchild Semiconductor Corporation www.fairchildsemi.com
MCT5201M, MCT5210M, MCT5211M Rev. 1.1.3
September 2009
MCT5201M, MCT5210M, MCT5211M
Low Input Current Phototransistor Optocouplers
Features
■
High CTR
CE(SAT)
comparable to Darlingtons
■
CTR guaranteed 0°C to 70°C
■
High common mode transient rejection 5kV/µs
■
Data rates up to 150kbits/s (NRZ)
■
Underwriters Laboratory (UL) recognized,
file #E90700, volume 2
■
IEC60747-5-2 approved (ordering option V)
Applications
■
CMOS to CMOS/LSTTL logic isolation
■
LSTTL to CMOS/LSTTL logic isolation
■
RS-232 line receiver
■
Telephone ring detector
■
AC line voltage sensing
■
Switching power supply
Description
The MCT52XXM series consists of a high-efficiency
AlGaAs, infrared emitting diode, coupled with an NPN
phototransistor in a six pin dual-in-line package.
The MCT52XXM is well suited for CMOS to LSTT/TTL
interfaces, offering 250% CTR
CE(SAT)
with 1mA of LED
input current. When an LED input current of 1.6mA is
supplied data rates to 20K bits/s are possible.
The MCT52XXM can easily interface LSTTL to LSTTL/
TTL, and with use of an external base to emitter resistor
data rates of 100K bits/s can be achieved.

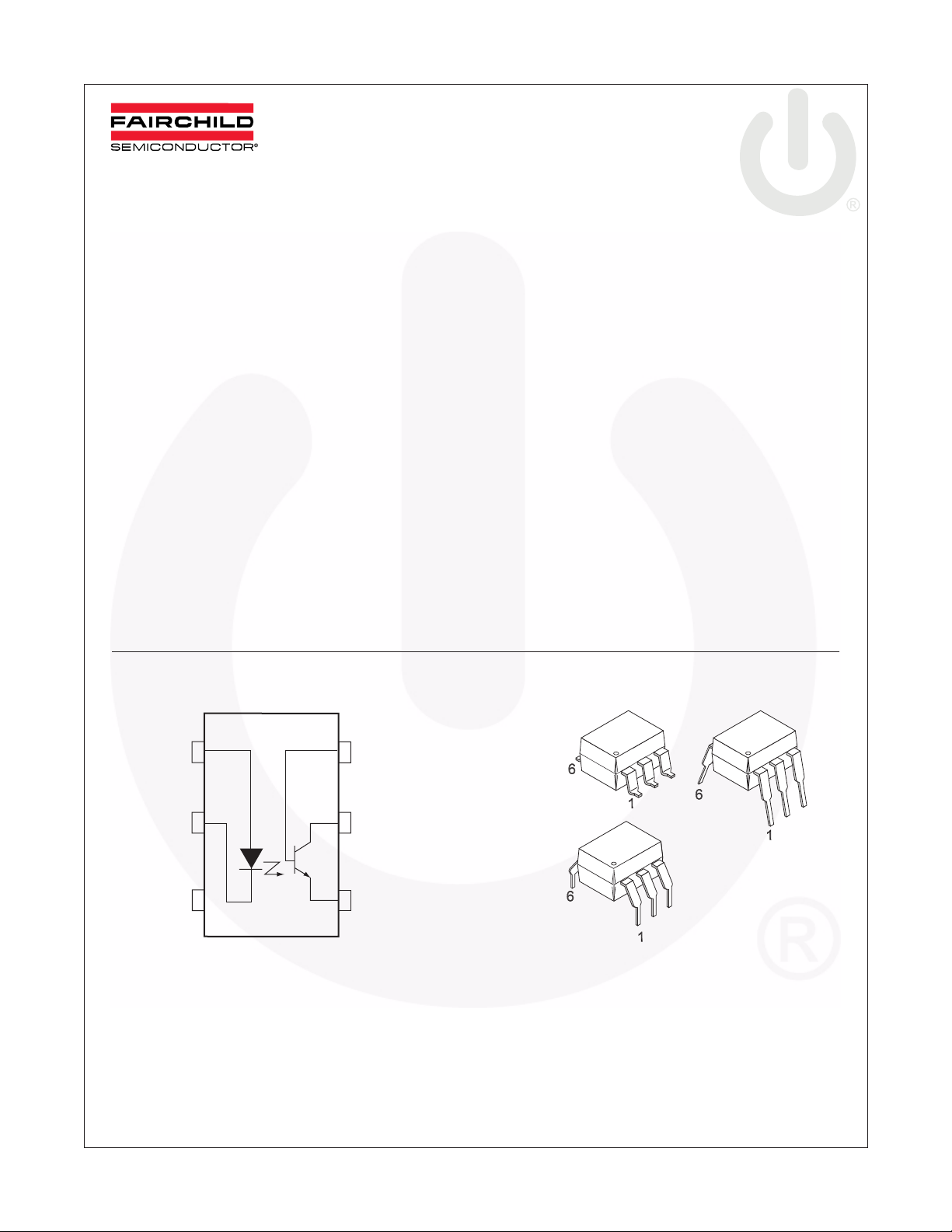

Schematic Package Outlines
1
2
6
5 COL
4 EMITTER
BASE
ANODE
CATHODE
3
