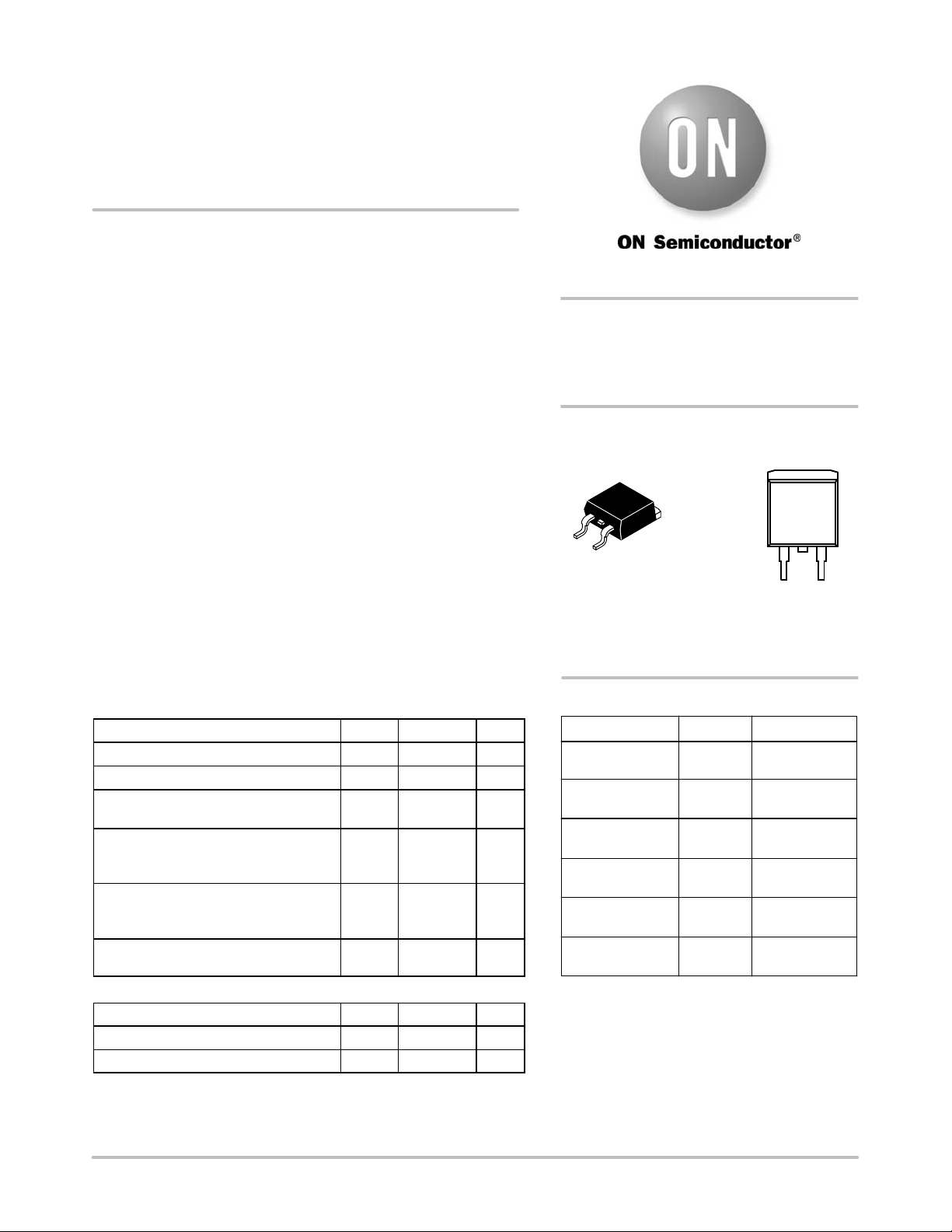

© Semiconductor Components Industries, LLC, 2013
May, 2013 − Rev. 5
1 Publication Order Number:
MJB44H11/D
MJB44H11 (NPN),
NJVMJB44H11 (NPN),
MJB45H11 (PNP),
NJVMJB45H11 (PNP)
Complementary
Power Transistors
D
2
PAK for Surface Mount
Complementary power transistors are for general purpose power
amplification and switching such as output or driver stages in
applications such as switching regulators, converters and power
amplifiers.
Features
• Low Collector−Emitter Saturation Voltage −
V
CE(sat)
= 1.0 V (Max) @ 8.0 A
• Fast Switching Speeds
• Complementary Pairs Simplifies Designs
• Epoxy Meets UL 94 V−0 @ 0.125 in
• ESD Ratings: Human Body Model, 3B > 8000 V
Machine Model, C > 400 V
• NJV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
• Pb−Free Packages are Available
MAXIMUM RATINGS
Rating Symbol Value Unit
Collector−Emitter Voltage V
CEO
80 Vdc
Emitter−Base Voltage V
EB
5 Vdc
Collector Current − Continuous
− Peak
I
C
10
20
Adc
Total Power Dissipation
@ T
C
= 25°C
Derate above 25°C
P
D
50
0.4
W
W/°C
Total Power Dissipation
@ T
A
= 25°C
Derate above 25°C
P
D
2.0
0.016
W
W/°C
Operating and Storage Junction
Temperature Range
T
J
, T
stg
−55 to 150 °C
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Thermal Resistance, Junction−to−Case
R
q
JC
2.5 °C/W
Thermal Resistance, Junction−to−Ambient
R
q
JA
75 °C/W
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
Device Package Shipping
†
ORDERING INFORMATION
MARKING
DIAGRAM
SILICON POWER
TRANSISTORS
10 AMPERES,
80 VOLTS, 50 WATTS
x = 4 or 5
A = Assembly Location
Y = Year
WW = Work Week
G = Pb−Free Package
http://onsemi.com
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
MJB45H11T4G D
2
PAK
(Pb−Free)
800/Tape & Reel
MJB45H11G D
2
PAK
(Pb−Free)
50 Units/Rail
MJB44H11T4G D
2
PAK
(Pb−Free)
800/Tape & Reel
MJB44H11G D
2
PAK
(Pb−Free)
50 Units/Rail
D
2
PAK
CASE 418B
STYLE 1
B4xH11G
AYWW
NJVMJB44H11T4G D
2
PAK
(Pb−Free)
800/Tape & Reel
NJVMJB45H11T4G D
2
PAK
(Pb−Free)
800/Tape & Reel
