MJB44H11G 其他数据使用手册 - ON Semiconductor（安森美）
制造商:
ON Semiconductor（安森美）
分类:
双极性晶体管
封装:
TO-263-3
描述:
ON SEMICONDUCTOR MJB44H11G. 功率晶体管, NPN, 80V, D2-PAK
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
导航目录
MJB44H11G数据手册
Page:
of 7 Go
若手册格式错乱，请下载阅览PDF原文件
xx
xxxxxxxxx
AWLYWWG
GENERIC
MARKING DIAGRAM*
xx = Specific Device Code
A = Assembly Location
WL = Wafer Lot
Y = Year
WW = Work Week
G = Pb−Free Package
AKA = Polarity Indicator
IC Standard
xxxxxxxxG
AYWW
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.

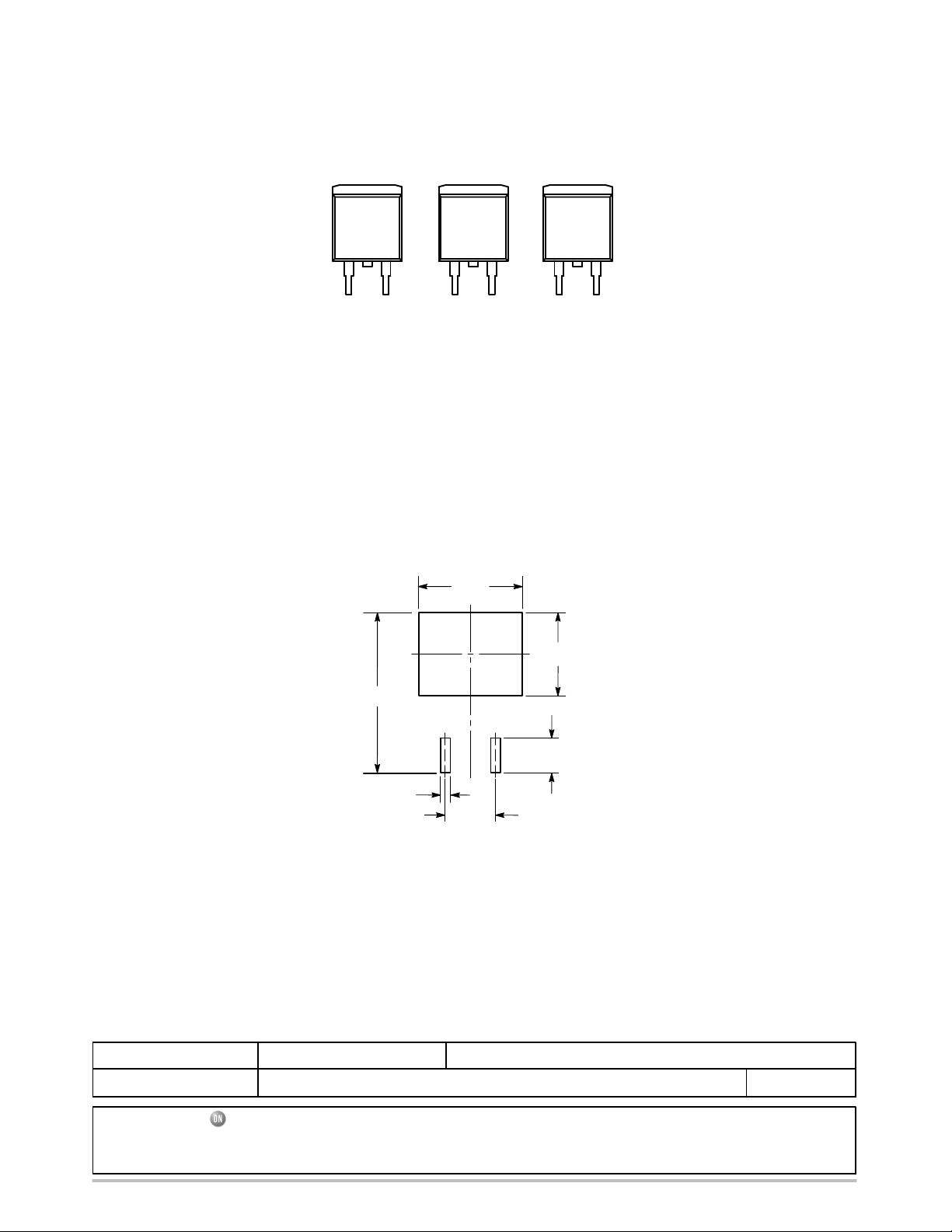

SOLDERING FOOTPRINT*
*This information is generic. Please refer to
device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “ G”,
may or may not be present.
D
2
PAK 3
CASE 418B−04
ISSUE L
DATE 17 FEB 2015
8.38
5.080
DIMENSIONS: MILLIMETERS
PITCH
2X
16.155
1.016
2X
10.49
3.504
Rectifier
AYWW
xxxxxxxxG
AKA
