MOCD2xxM — 8-pin SOIC Dual-Channel Phototransistor Output Optocoupler
©2005 Fairchild Semiconductor Corporation www.fairchildsemi.com
MOCD2xxM Rev. 4.10
May 2016
MOCD207M, MOCD208M,
MOCD211M, MOCD213M, MOCD217M
8-pin SOIC Dual-Channel Phototransistor Output
Optocoupler
Features
• Closely Matched Current Transfer Ratios
•Minimum BV
CEO
of 70 V Guaranteed
– MOCD207M, MOCD208M
•Minimum BV
CEO
of 30 V Guaranteed
– MOCD211M, MOCD213M, MOCD217M
• Low LED Input Current Required for Easier Logic
Interfacing
– MOCD217M
• Convenient Plastic SOIC-8 Surface Mountable
Package Style, with 0.050" Lead Spacing
• Safety and Regulatory Approvals:
– UL1577, 2,500 VAC
RMS
for 1 Minute
– DIN-EN/IEC60747-5-5, 565 V Peak Working
Insulation Voltage
Applications
• Feedback Control Circuits
• Interfacing and Coupling Systems of Different
Potentials and Impedances
• General Purpose Switching Circuits
• Monitor and Detection Circuits
Description
These devices consist of two gallium arsenide infrared
emitting diodes optically coupled to two monolithic silicon
phototransistor detectors, in a surface mountable, small
outline, plastic package. They are ideally suited for
high-density applications, and eliminate the need for
through-the-board mounting.
Schematic Package Outline
EMITTER 1
COLLECTOR 1
ANODE 1
CATHODE 1
1
2
3
4
5
6
7
8
EMITTER 2
COLLECTOR 2
ANODE 2
CATHODE 2

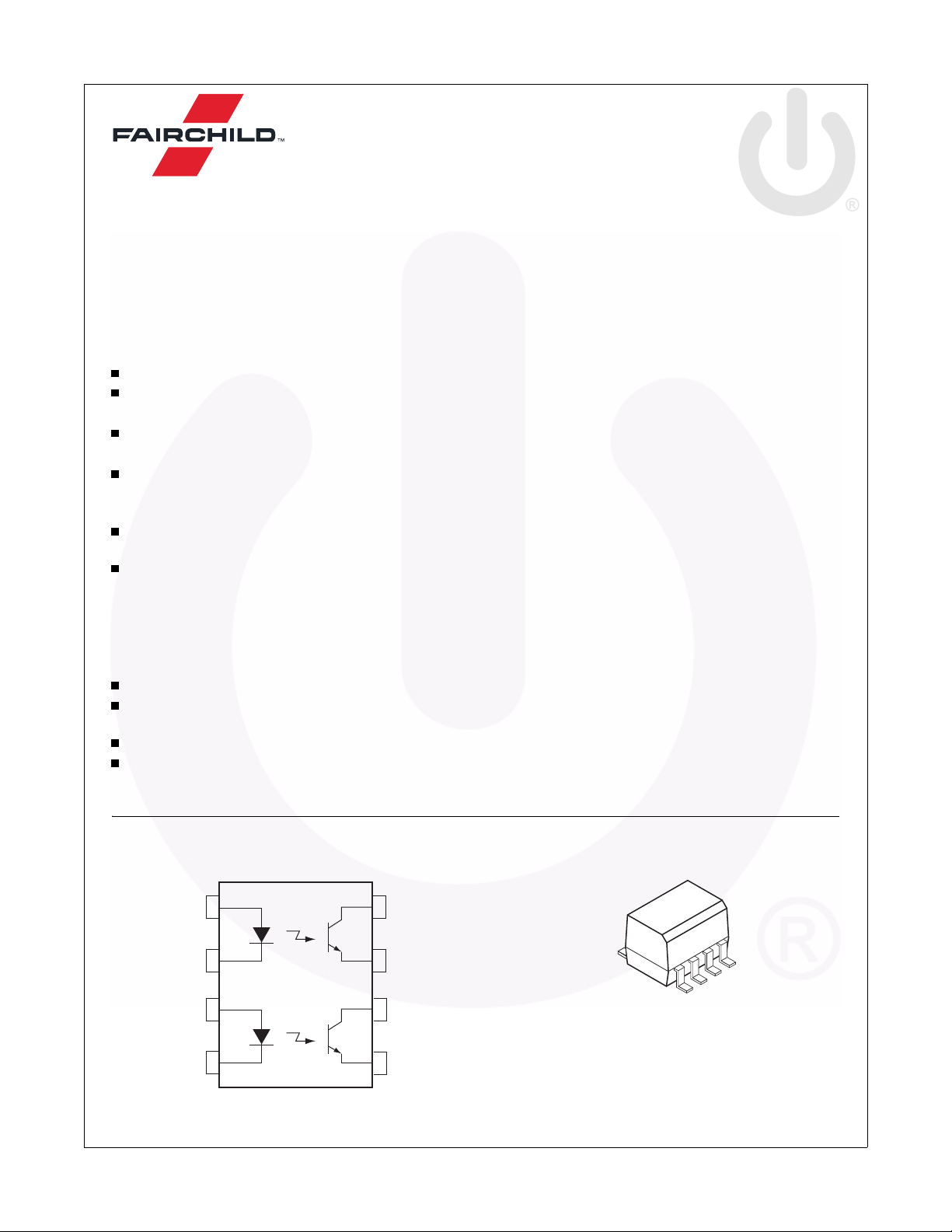

Figure 1. Schematic
Figure 2. Package Outline
