NCP4305
www.onsemi.com
4
PIN FUNCTION DESCRIPTION
ver. A, B, C, D ver. Q Pin Name Description
1 1 VCC Supply voltage pin
2 2 MIN_TOFF Adjust the minimum off time period by connecting resistor to ground.
3 3 MIN_TON Adjust the minimum on time period by connecting resistor to ground.
4 4 LLD This input modulates the driver clamp level and/or turns the driver off during light load
conditions.
5 − TRIG/DIS Ultrafast turn−off input that can be used to turn off the SR MOSFET in CCM applica-
tions in order to improve efficiency. Activates disable mode if pulled−up for more than
100 ms.
6 6 CS Current sense pin detects if the current flows through the SR MOSFET and/or its body
diode. Basic turn−off detection threshold is 0 mV. A resistor in series with this pin can
decrease the turn off threshold if needed.
7 7 GND Ground connection for the SR MOSFET driver and V
CC
decoupling capacitor. Ground
connection for minimum on and off time adjust resistors, LLD and trigger inputs.
GND pin should be wired directly to the SR MOSFET source terminal/soldering point
using Kelvin connection. DFN8 exposed flag should be connected to GND
8 8 DRV Driver output for the SR MOSFET
− 5 MAX_TON Adjust the maximum on time period by connecting resistor to ground.
Minimum ON time
generator
MIN_TON
CS
detection
100mA
CS
MIN_TOFF
TRIG/ DISABLE
CS_ON
CS_OFF
DRV
VCC
GND
V
CC
managment
UVLO
DRV Out
DRIVER
V
DD
V
DD
CS_RESET
LLD
Disable detection
&
V DRV clamp
modulation
V_DRV
control
ADJ
ELAPSED
EN
Minimum OFF
time generator
ADJ
RESET
ELAPSED
10 A
V
trig
Control logic
EN
DISABLE
Disable detection
DISABLE
DISABLE
TRIG

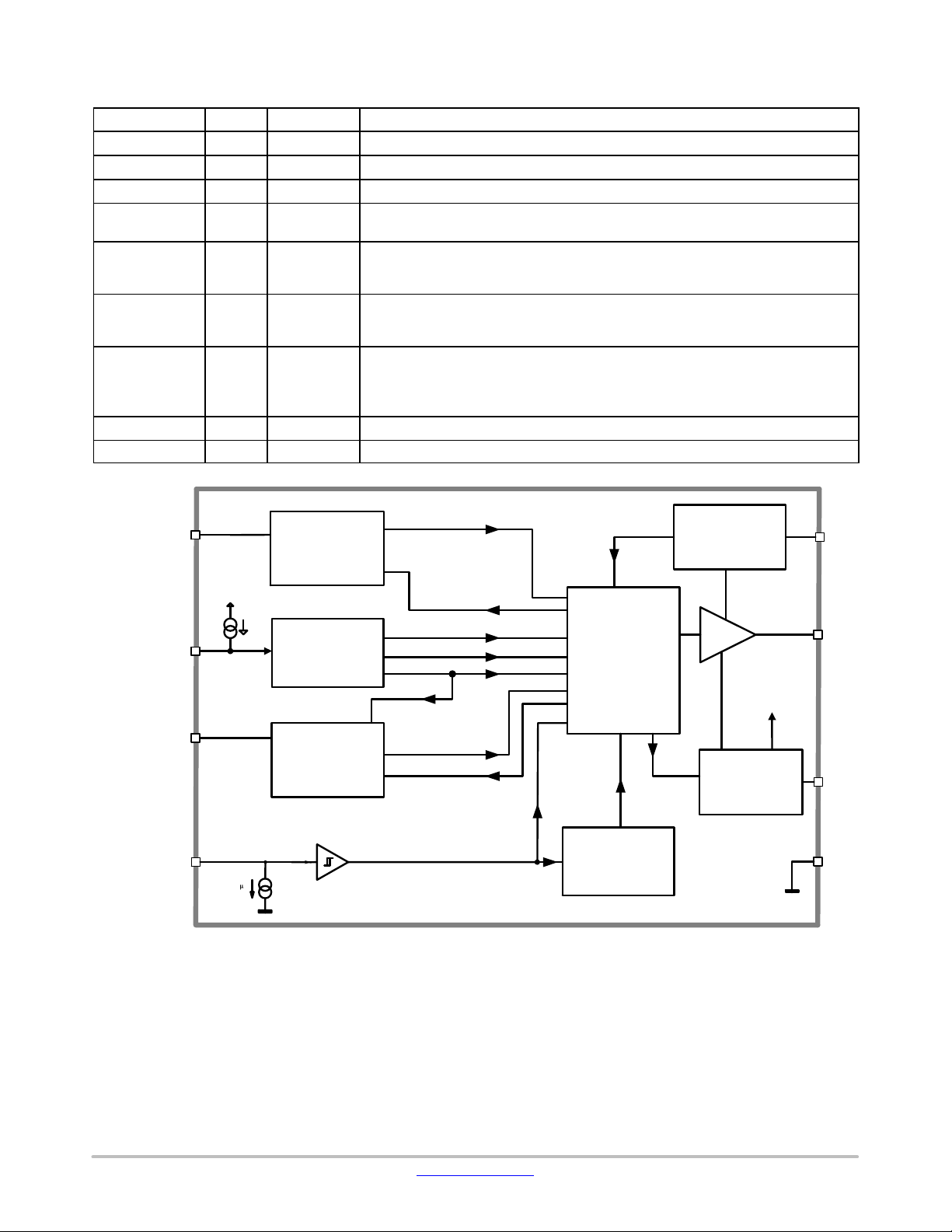

Figure 5. Internal Circuit Architecture − NCP4305A, B, C, D
