RN73C2A10K5BTDF 其他数据使用手册 - TE Connectivity（泰科）
制造商:
TE Connectivity（泰科）
分类:
贴片电阻
封装:
0805
描述:
TE CONNECTIVITY RN73C2A10K5BTDF 片式电阻器, 表面贴装, 薄膜, RN73系列, 10.5 kohm, 100 V, 0805 [2012公制], 100 mW, ± 0.1%
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
导航目录
RN73C2A10K5BTDF数据手册
Page:
of 5 Go
若手册格式错乱，请下载阅览PDF原文件

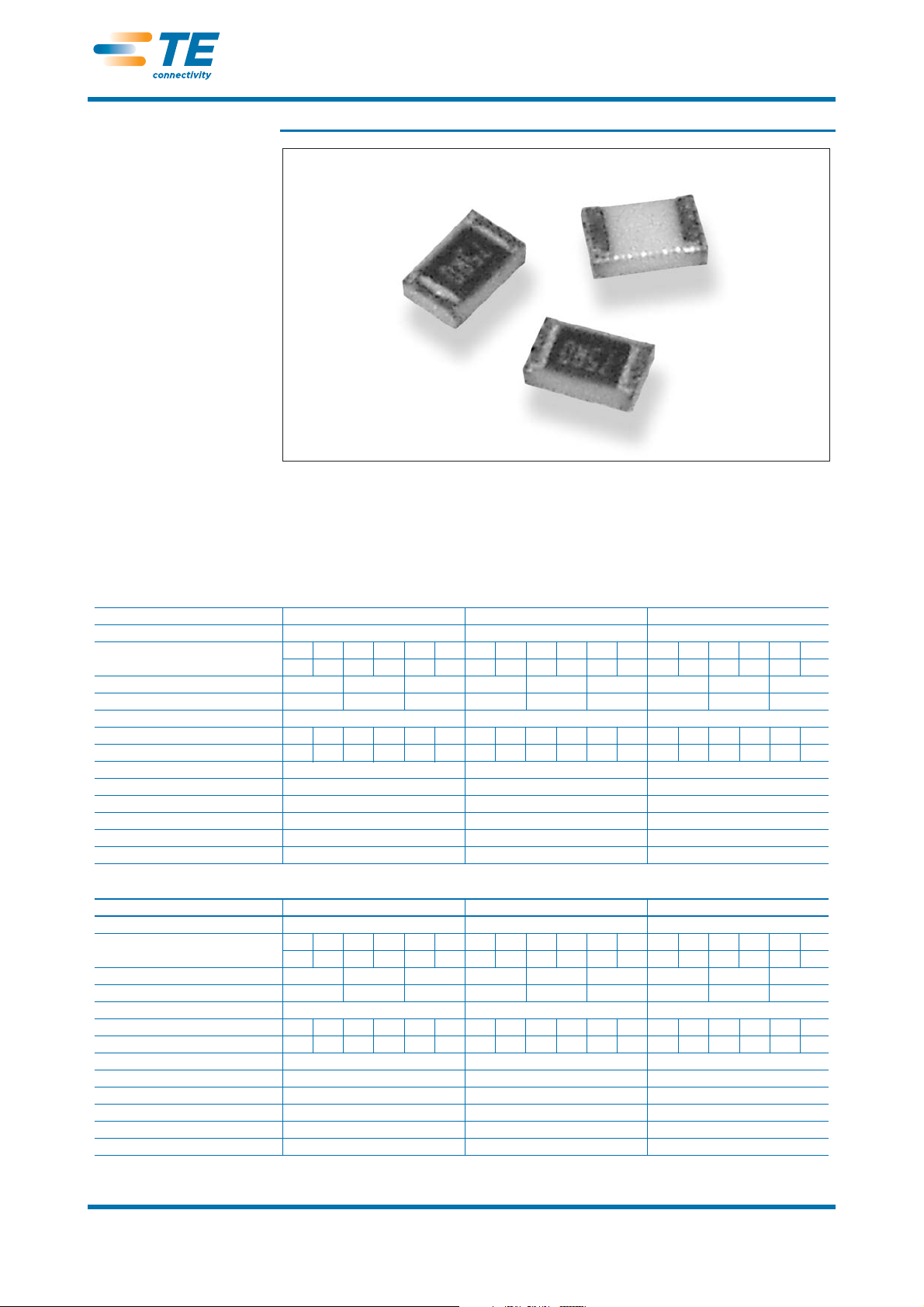

Key Features
I High precision -
TCR 5ppm/°C and
10ppm/°C
I Tolerance down to 0.01%
I Thin film (nichrome)
I Choice of packages
I Stable high frequency
performance
I Temperature range
-55°C to +155°C
Applications
I Communications
I Instrumentation
I Industrial controls
I Medical
Characteristics - Electrical
The RN73 series is a high stability precision chip resistor range offering various power
dissipations relating to chip size, TCR's down to 5ppm/°C and resistance tolerances to
0.01%. The resistor is produced with three sputtered layers giving optimum performance.
Values are restricted to the E96 and E24 value grids. The RN73 has accurate and uniform
physical dimensions to facilitate placement.
0402 0603 0805
Rated Power @ 70°C: 0.063W 0.063W 0.1W
Resistance Range (Ohms) Min: 49R9 49R9 49R9 49R9 49R9 49R9 24R9 24R9 24R9 4R7 24R9 4R7 24R9 24R9 24R9 4R3 24R9 4R3
Max: 5K0 15K 5K0 15K 5K0 15K 15K 100K 15K 332K 15K 332K 30K 200K 30K 511K 30K 511K
Tolerance (%): 0.01 0.05 0.1 0.01 0.05 0.1 0.01 0.05 0.1
Code Letter: LAB L A B LAB
Selection Series: E24 & E96 E24 & E96 E24 & E96
Temp. Coefficient (ppm/°C): 5 10 5 10 5 10 5 10 5 10 5 10 5 10 5 10 5 10
Code Letter: ACACACAC ACACACAC AC
Limiting Element Voltage: 25V 50V 100V
Max. Overload Voltage: 50V 100V 200V
Operating Temp. Range: -55 to +155°C -55 to +155°C -55 to +155°C
Climatic Category (°C): 55/125/55 55/125/55 55/125/55
Insulation Resistance Dry Min: 1000MΩ 1000MΩ 1000MΩ
Stability: 0.5% 0.5% 0.5%
1206 1210 2010
Rated Power @ 70°C: 0.125W 0.2W 0.25W
Resistance Range (Ohms) Min: 24R9 24R9 24R9 4R7 24R9 4R7 24R9 24R9 24R9 4R7 24R9 4R7 24R9 24R9 24R9 4R7 24R9 4R7
Max: 50K 562K 50K 1M0 50K 1M0 50K 500K 50K 1M0 50K 1M0 100K 500K 100K 1M0 100K 1M0
Tolerance (%): 0.01 0.05 0.1 0.01 0.05 0.1 0.01 0.05 0.1
Code Letter: LAB L A B LAB
Selection Series: E24 & E96 E24 & E96 E24 & E96
Temp. Coefficient (ppm/°C): 5 10 5 10 5 10 5 10 5 10 5 10 5 10 5 10 5 10
Code Letter: ACACACAC ACACACAC AC
Limiting Element Voltage: 150V 150V 150V
Max. Overload Voltage: 300V 300V 300V
Operating Temp. Range: -55 to +155°C -55 to +155°C -55 to +155°C
Climatic Category (°C): 55/125/55 55/125/55 55/125/55
Insulation Resistance Dry Min: 1000MΩ 1000MΩ 1000MΩ
Stability: 0.5% 0.5% 0.5%
SMD High Power Precision Resistors
Type RN73 Series
1773270 CIS BI 06/2011 Dimensions are in millimeters Dimensions are shown for For email, phone or live chat, go to: te.com/help
and inches unless otherwise reference purposes only.
specified. Values in brackets Specifications subject
are standard equivalents. to change.
